Monitor Scantool Data

C1112 Sensor source voltage

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. IG "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the GDS.

Specification : BATTERY VOLTAGE (Approx. 10 V ~ 16 V)




Fig 1) Normal Data at IG "ON"

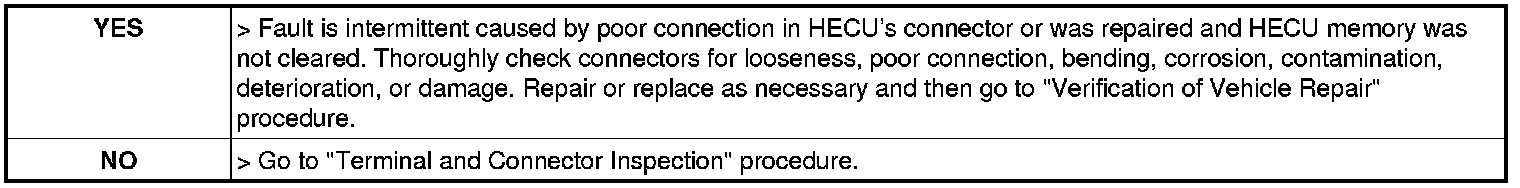

4. Is parameter displayed within specifications?
