Scantool Diagnostics

B2518 Turn Signal LH Front Open Circuit

Scantool Diagnostics

GDS Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

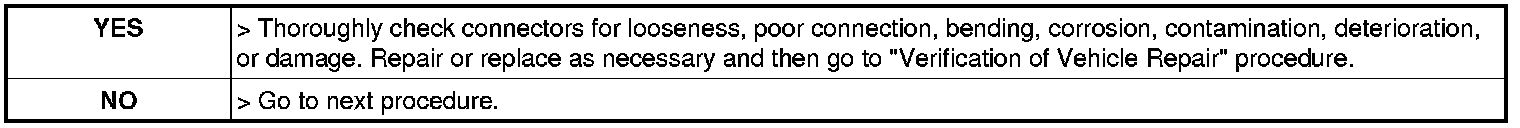

5. Is the same DTC occurred again?





Check Internal Tail Lamp
1. IG "OFF" and connect GDS.
2. IG "ON" & ENG "OFF".
3. Select "Actuation Test and current data" mode.
4. Execute "left turn signal lamp" test.




Fig 1) Normal result After "Turn Signal LH" Actuation test.

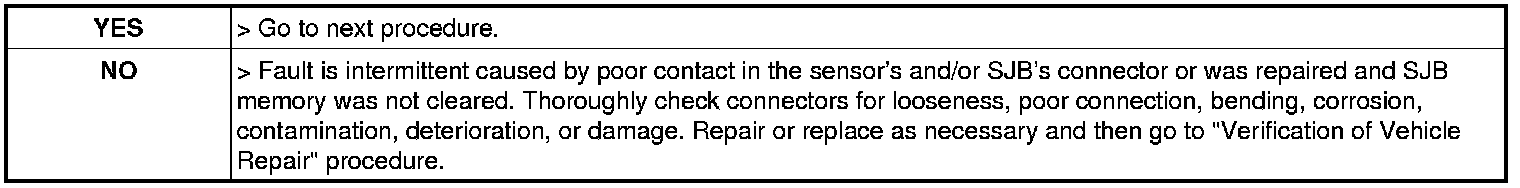

5. Is left turn signal lamp working normal?
