General Information

B2515 External Tail Lamp LH Circuit Short to Ground

General Information

Component Location





General Description

Once BCM receives Tail Lamp switch working signal, it sends the signal to SJB by CAN communition. SJB turns on Tail Lamp.






DTC Description

This code is set when Left External Tail Lamp External Tail Lamp circuit is shorted to ground for more than 150 ms during Left External Tail Lamp External Tail Lamp operating.

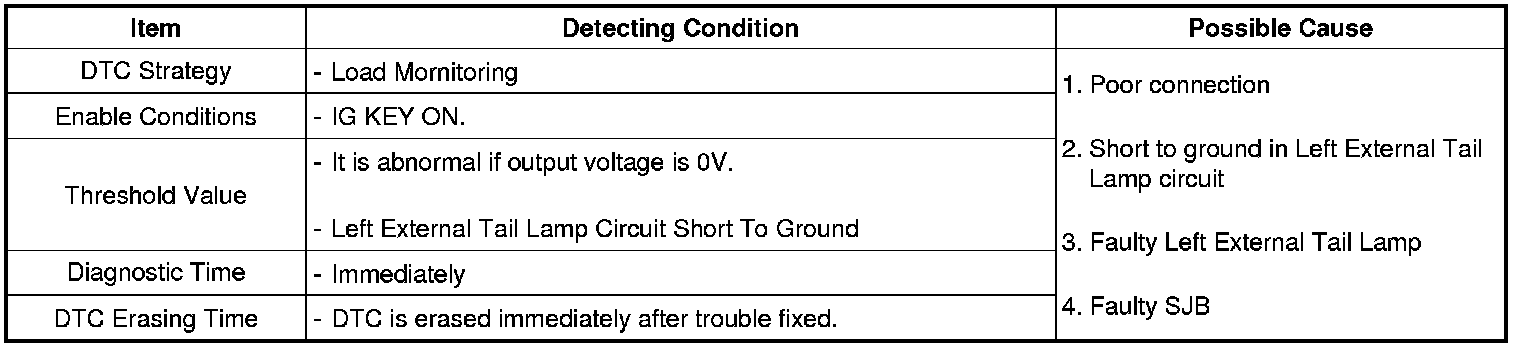

DTC Detecting Condition





Diagnostic Circuit Diagram
