B2513 Left Headlamp Low Circuit Short to Ground

Scantool Diagnostics

GDS Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

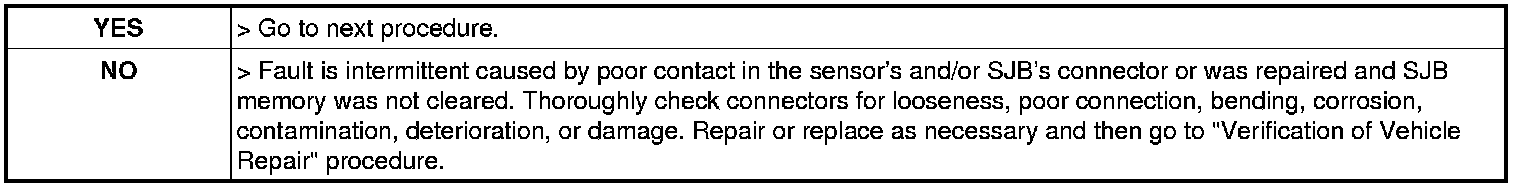

5. Is the same DTC occurred again?





Check Left head lamp low
1. IG "OFF" and connect GDS.
2. IG "ON" & ENG "OFF".
3. Select "Actuation Test and current data" mode.
4. Execute "Left head lamp low" test.




Fig 1) Normal result After "Head lamp Low relay" Actuation test.

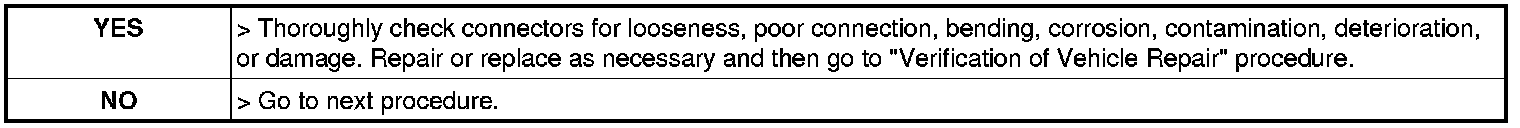

5. Is Left head lamp low working normal?
