B2510 Right Headlamp High Circuit Short to Ground

General Information

Component Location





General Description

Once BCM receives head lamp high switch working signal, it sends the signal to SJB by CAN communition. SJB turns on headlamp high.






DTC Description

This code is set when head lamp high right circuit is shorted to ground for more than 150 ms during right head lamp high operating.

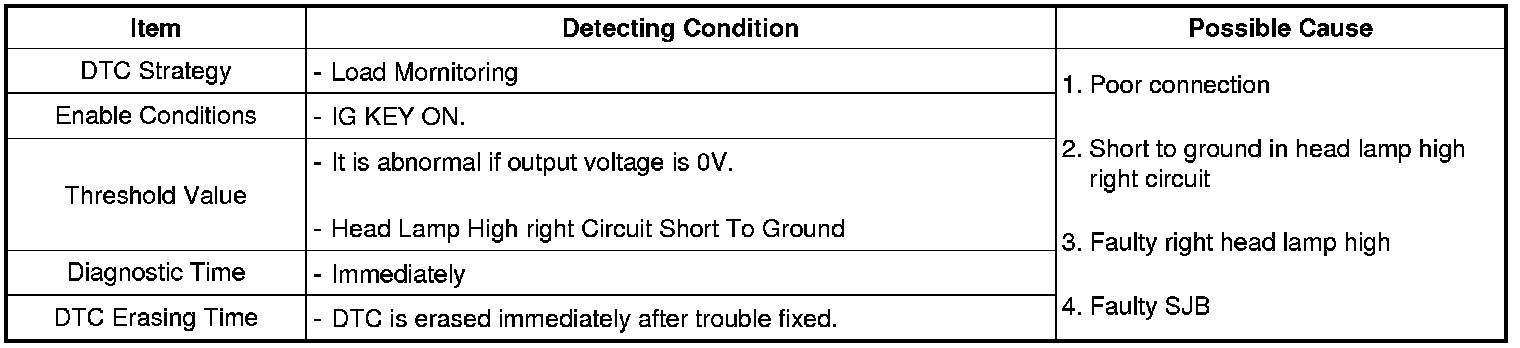

DTC Detecting Condition





Diagnostic Circuit Diagram
