Scantool Diagnostics

B1734 Anchor Pretensioner front-Passenger resistance too High

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "Anchor Pretensioner front-Passenger resistance" parameter on the Scantool.

Specification : 1.1 Ohms< Resistance of Anchor Pretensioner front-Passenger < 6.7 Ohms

Reference :In a case of an open in the Anchor Pretensioner front-Passenger circuit : FAIL
In a case of a short to battery in the Anchor Pretensioner front-Passenger circuit: FAIL
In a case of a short to ground in the Anchor Pretensioner front-Passenger circuit : FAIL




Fig.1) Normal Data

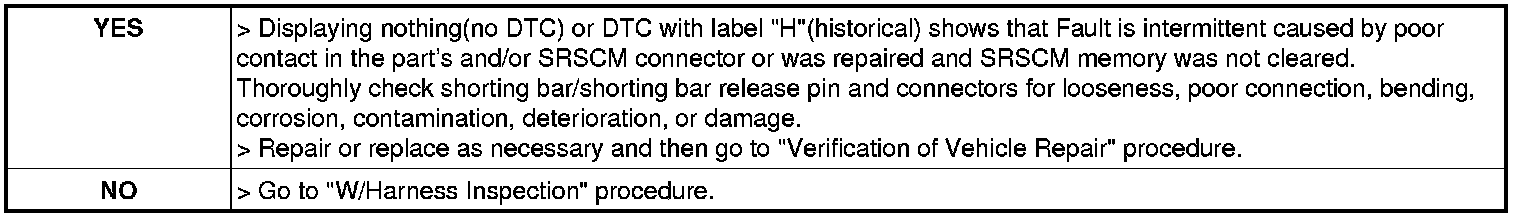

4. Is parameter displayed within specifications?
