Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection

Automatic Transmission/Transaxle: Testing and Inspection

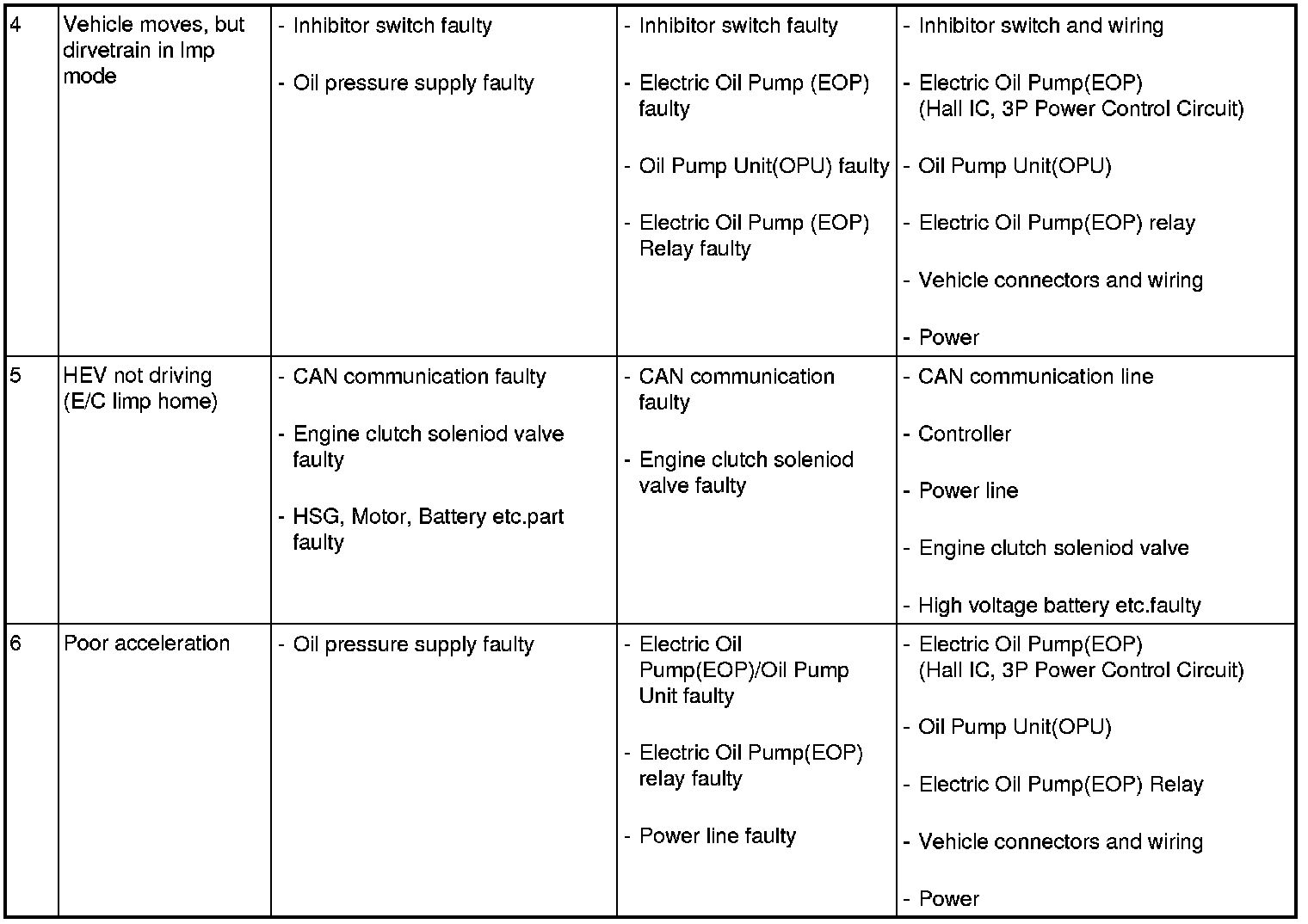

HEV 6th according to symptoms hardware failure criteria
