General Information





Specifications

Hybrid Motor

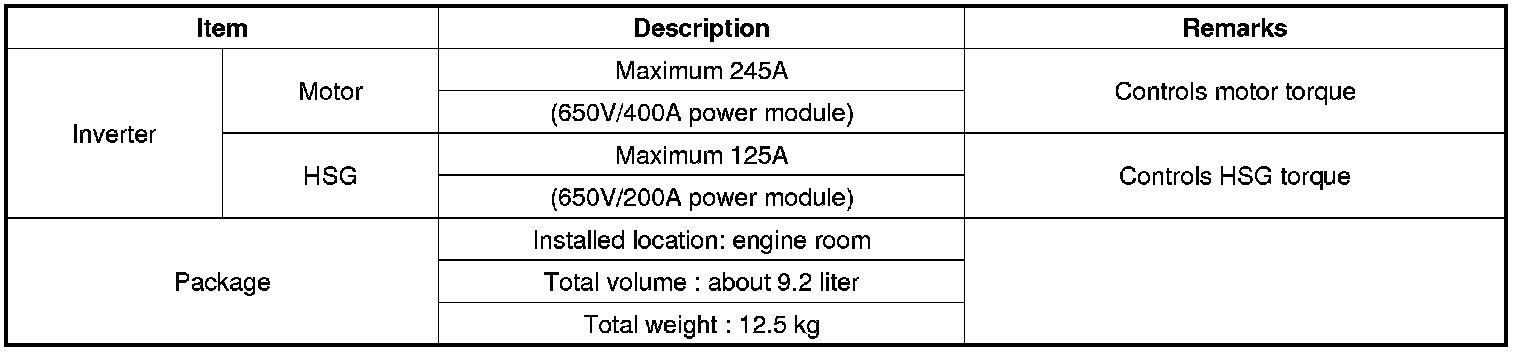

Inverter (MCU)

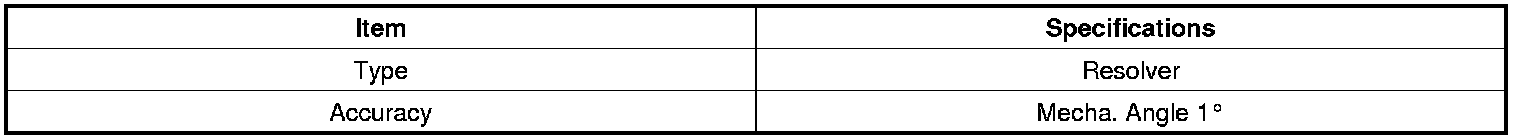

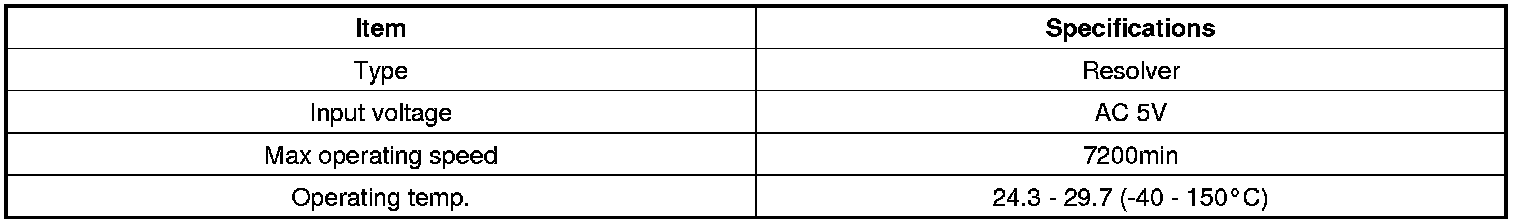

Resolver sensor
[Drive Motor]





[HSG Motor]

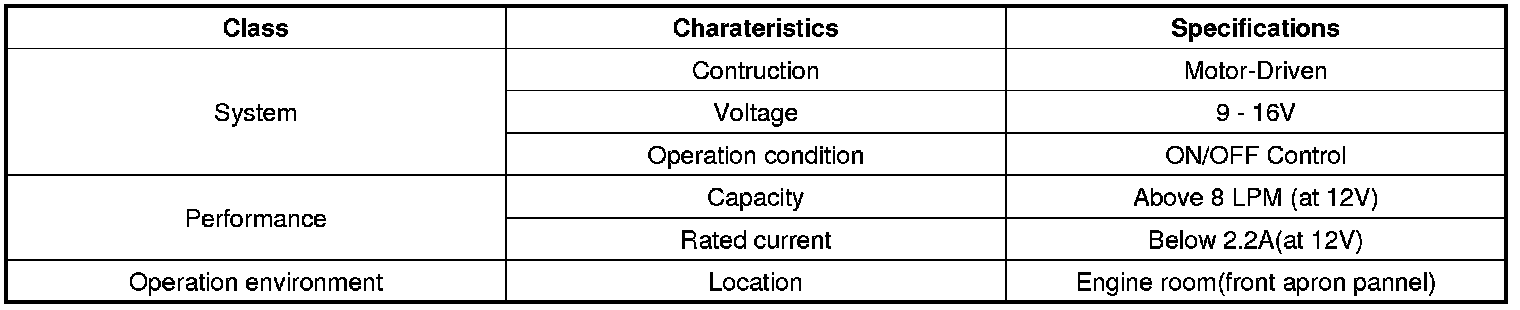

Electric Water Pump(EWP)

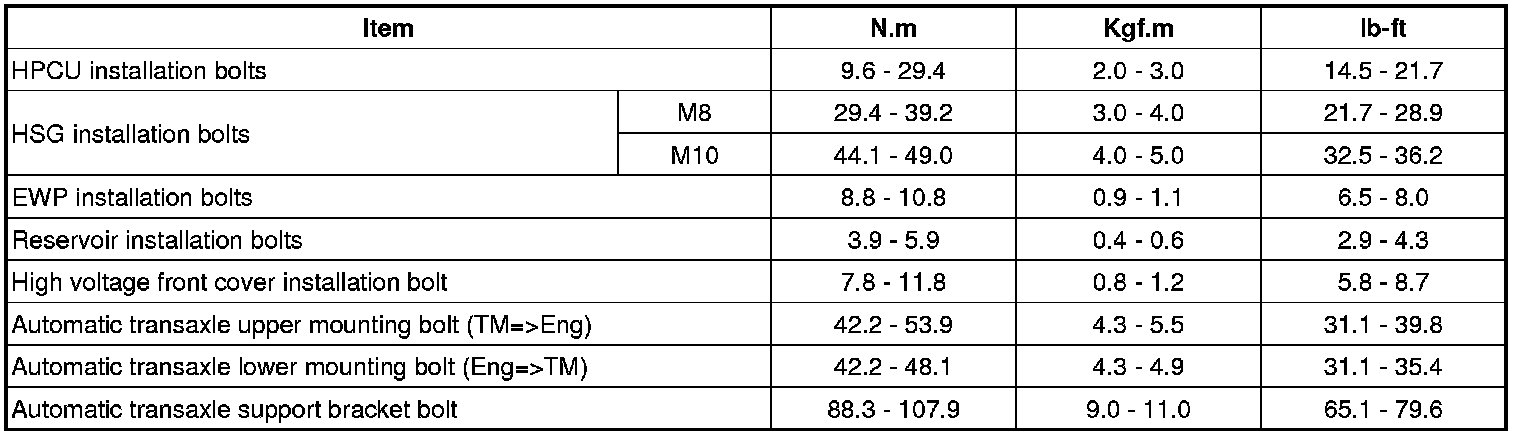

Tightening Torques
