Transmission Position Sensor/Switch: Specifications

Specifications

Type: Combination of output signals from 4 terminals
Specifications

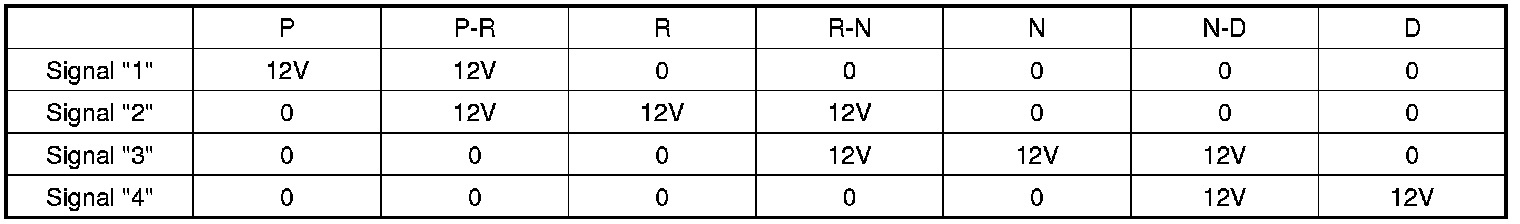

Signal Code Table
