Hybrid Battery Service Switch: Description and Operation

Description

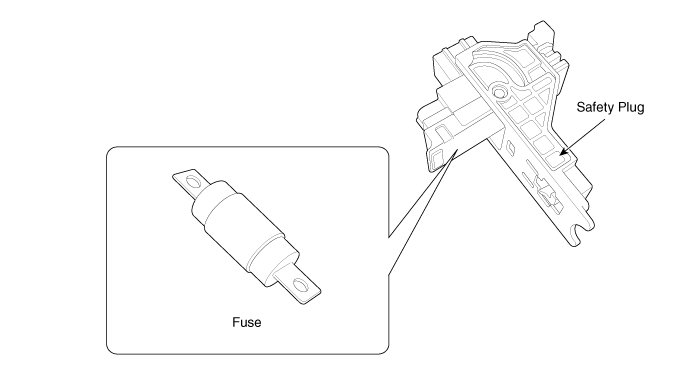

Safety Plug is installed on the rear side of the high voltage battery and it can mechanically shut the high voltage circuit off when servicing the high voltage system (i.e. High Voltage Battery, Power Relay Assembly, HPCU, BMS ECU, Hybrid Drive Motor, Inverter, HSG, LDC, Power Cable, etc.). It includes a fuse in order to prevent the high voltage system from overcurrent.
