Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Fuel Door Lock Switch >> Diagrams

Fuel Door Lock Switch: Diagrams

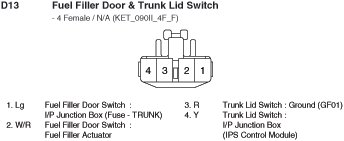

D13 Fuel Filler Door & Trunk Lid Switch:
