Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Parking Assist Distance Sensor >> Diagrams >> Rear Parking Assist Sensor RH (Center)

Rear Parking Assist Sensor RH (Center)

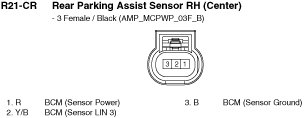

R21-CR Rear Parking Assist Sensor RH (Center):
