Electronic Throttle Actuator: Specifications





Specification

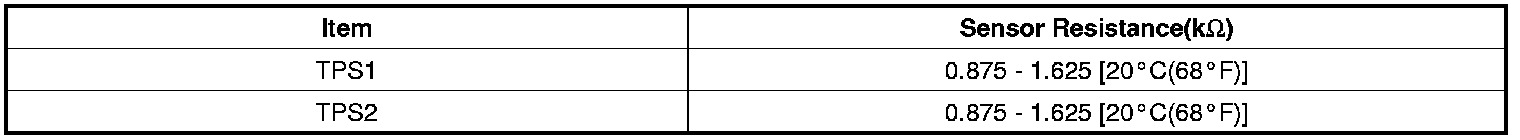

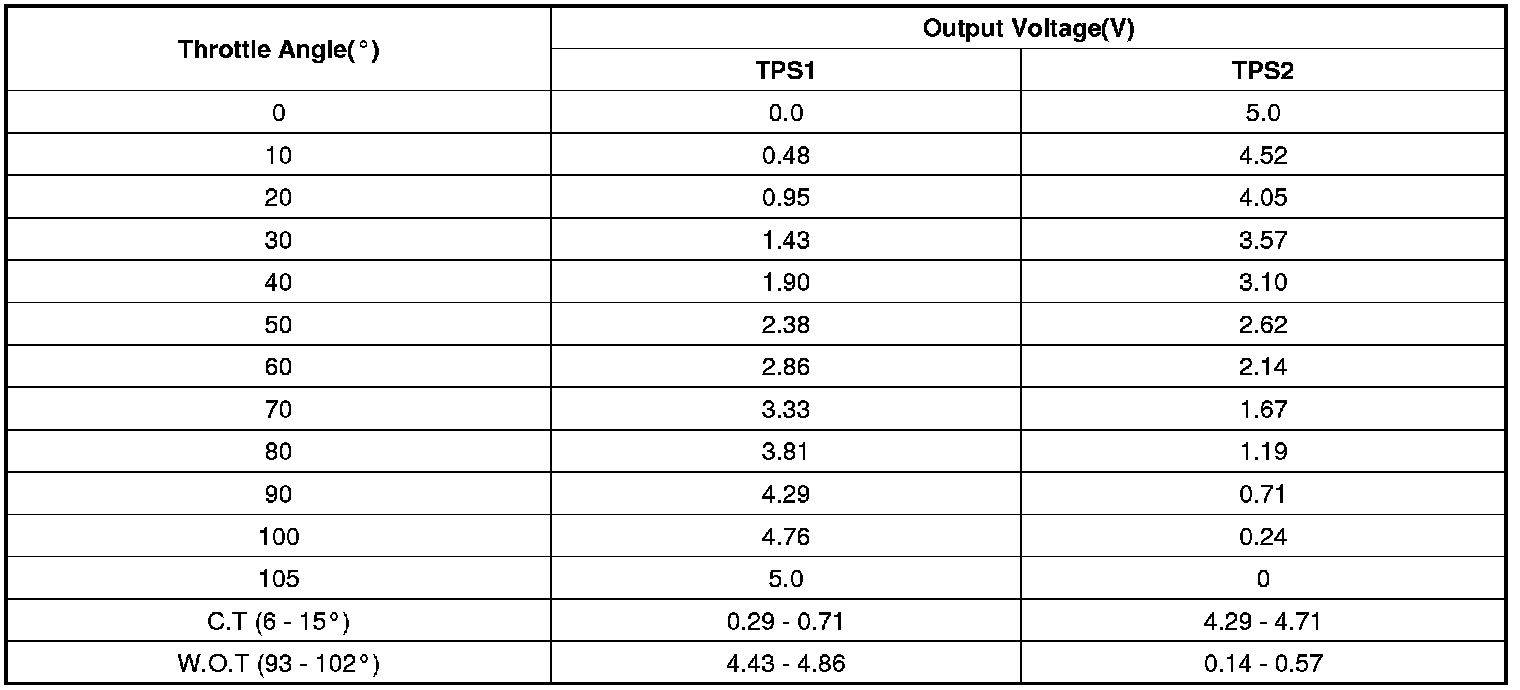

[Throttle Position Sensor (TPS)]














[ETC Motor]
