Electronic Throttle Actuator: Service and Repair

Inspection

Throttle Position Sensor (TPS)
1. Connect the GDS on the Data Link Connector (DLC).

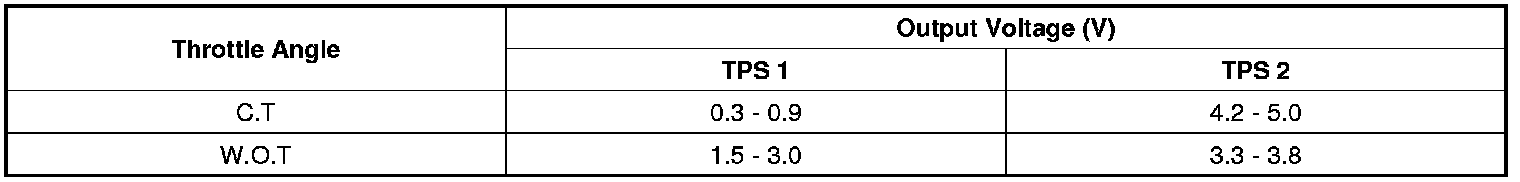

2. Start the engine and measure the output voltage of TPS 1 and 2 at C.T. and W.O.T.





3. Turn the ignition switch OFF and disconnect the scantool from the DLC.
4. Disconnect the ETC module connector and measure the resistance between the ETC module terminals 1 and 2.

Specification:Refer to "Specification"

ETC Motor
1. Turn the ignition switch OFF.
2. Disconnect the ETC module connector.
3. Measure resistance between the ETC module terminals 3 and 6.
4. Check that the resistance is within the specification.

Specification:Refer to "Specification"

Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the resonator and the air intake hose .
3. Disconnect the ETC module connector (A).
4. Disconnect the coolant hoses (B).
5. Remove the installation bolts (C), and then remove the ETC module from the engine.






Installation

CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

1. Installation is reverse of removal.

Electronic throttle body Installation bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
