Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Diagrams >> Multifunction Switch

Multifunction Switch

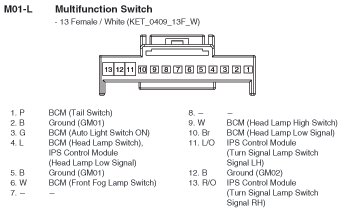

M01-L Multifunction Switch:
