Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Brake Lamp Relay >> Diagrams

Brake Lamp Relay: Diagrams

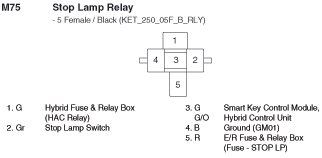

M75 Stop Lamp Relay:
