Towing In the Event of an Accident

Towing - In The Event Of An Accident

The high voltage system must be disabled. The service plug must be removed from the high voltage battery according to the procedures below.

a. Turn ignition switch OFF. While wearing rubber insulating gloves, disconnect the auxiliary 12V battery negative cable. The 12V battery is located in trunk on right side.

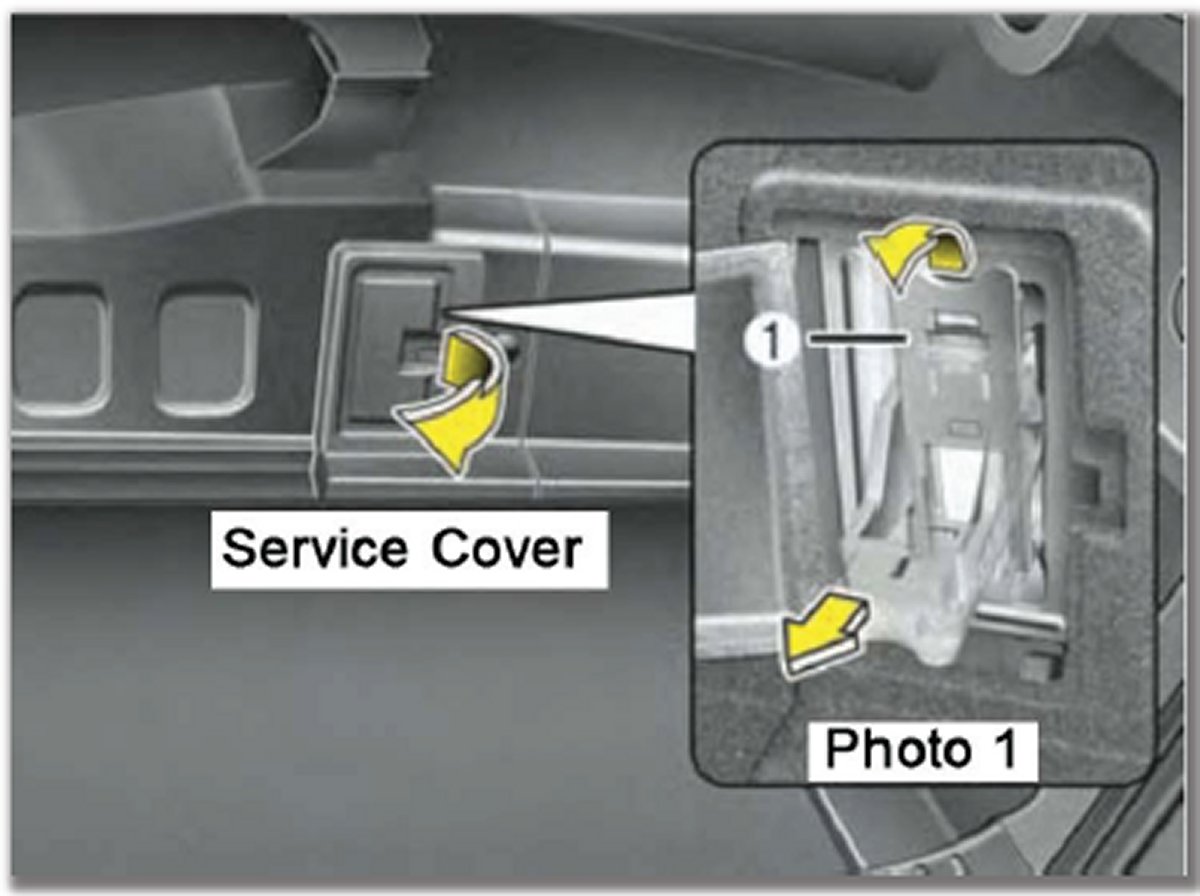

b. Locate the safety plug in trunk and remove safety plug service cover (photo 1).

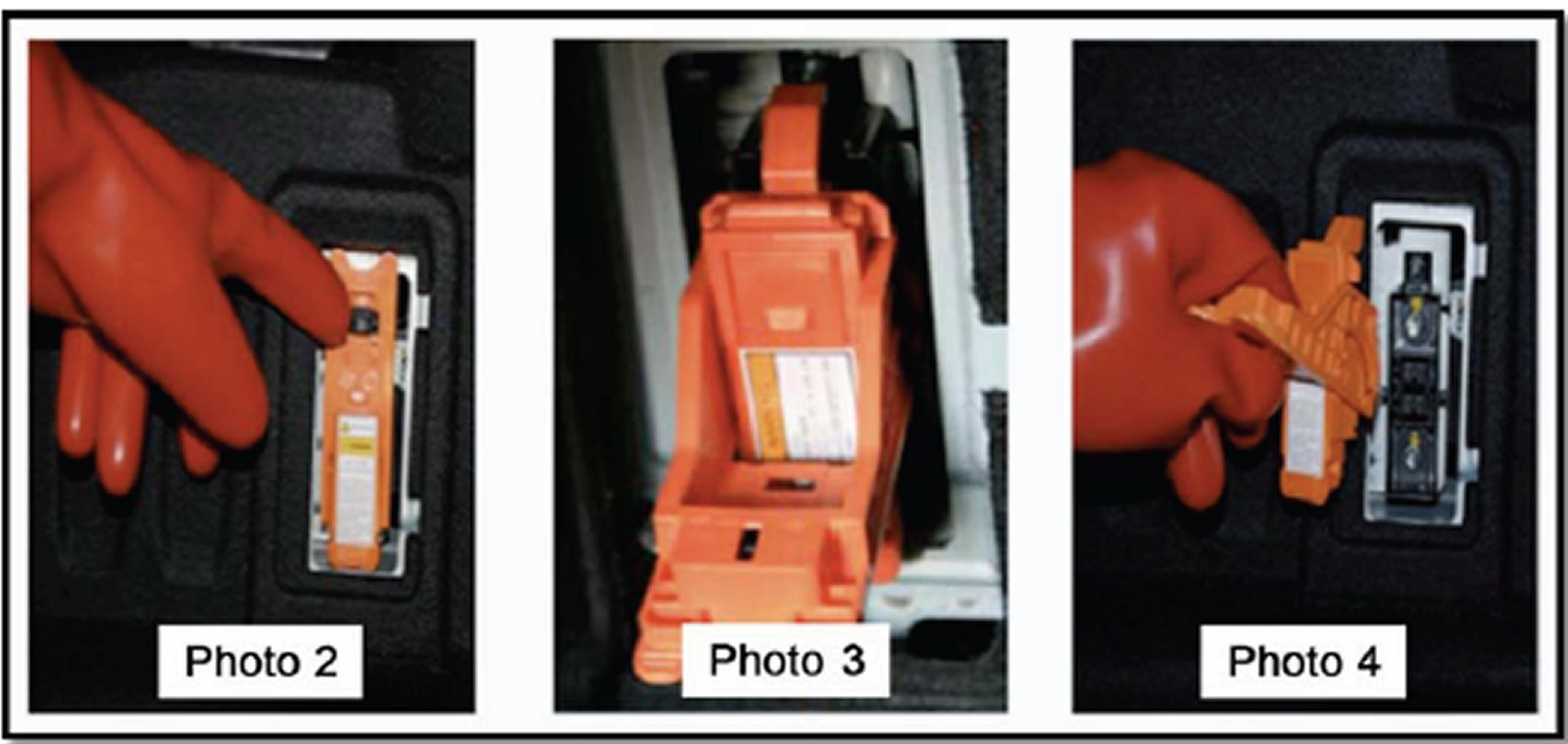

c. Lift the locking hook (1 & photo 2), rotate the lever down in the direction of arrow (photos 1 & 3), then pull the safety plug out (photos 1 & 4).









Important: Wait 5 minutes after removing the plug before working on the vehicle to ensure the remaining voltage in the system has dissipated.

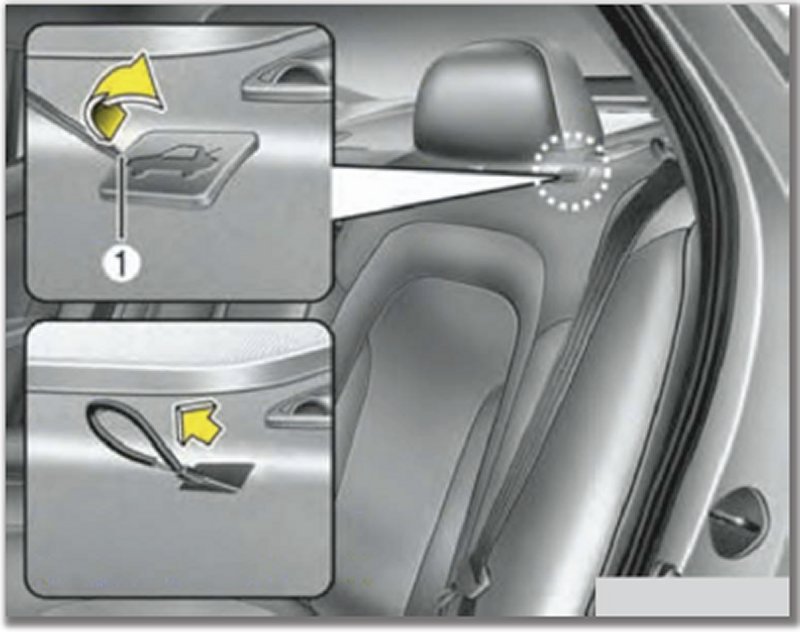

In the event of a dead battery, use the Emergency Trunk Lid Release Cable, located behind the rear passenger headrest, to open the trunk.






To access the Emergency Trunk Lid Release Cable:

1. Remove the cover by using a key (or other tool) to pry it open on the left side.

2. Pull the cable to release the trunk.




Electrocution Risk

The hybrid system uses a 270V battery. This battery can be extremely dangerous. High voltage components are color coded orange. Never touch the wires, cables, or connectors if possible. Severe injury, electrocution, or death may occur!

Do not disassemble any high voltage components

The hybrid system should only be inspected and or serviced by an authorized Kia dealer

If battery electrolyte comes in contact with skin or eyes, flush with water and seek medical attention as soon as possible

If a fire occurs, never use water to extinguish. Use an extinguisher made for electrical fires that has the proper chemicals
