Voltage Inverter: Diagrams

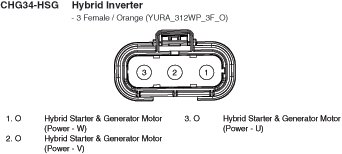

CHG34-HSG Hybrid Inverter:




CHG34-COMP Hybrid Inverter:

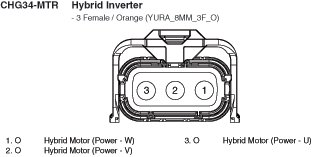

CHG34-MTR Hybrid Inverter:

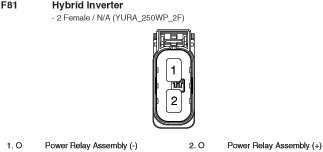

F81 Hybrid Inverter:
