Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Voltage Converter >> Diagrams

Voltage Converter: Diagrams

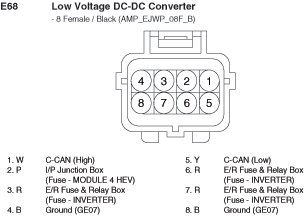

E68 Low Voltage DC-DC Converter:
