Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Hybrid Power Control Module >> Description and Operation

Hybrid Power Control Module: Description and Operation





Description

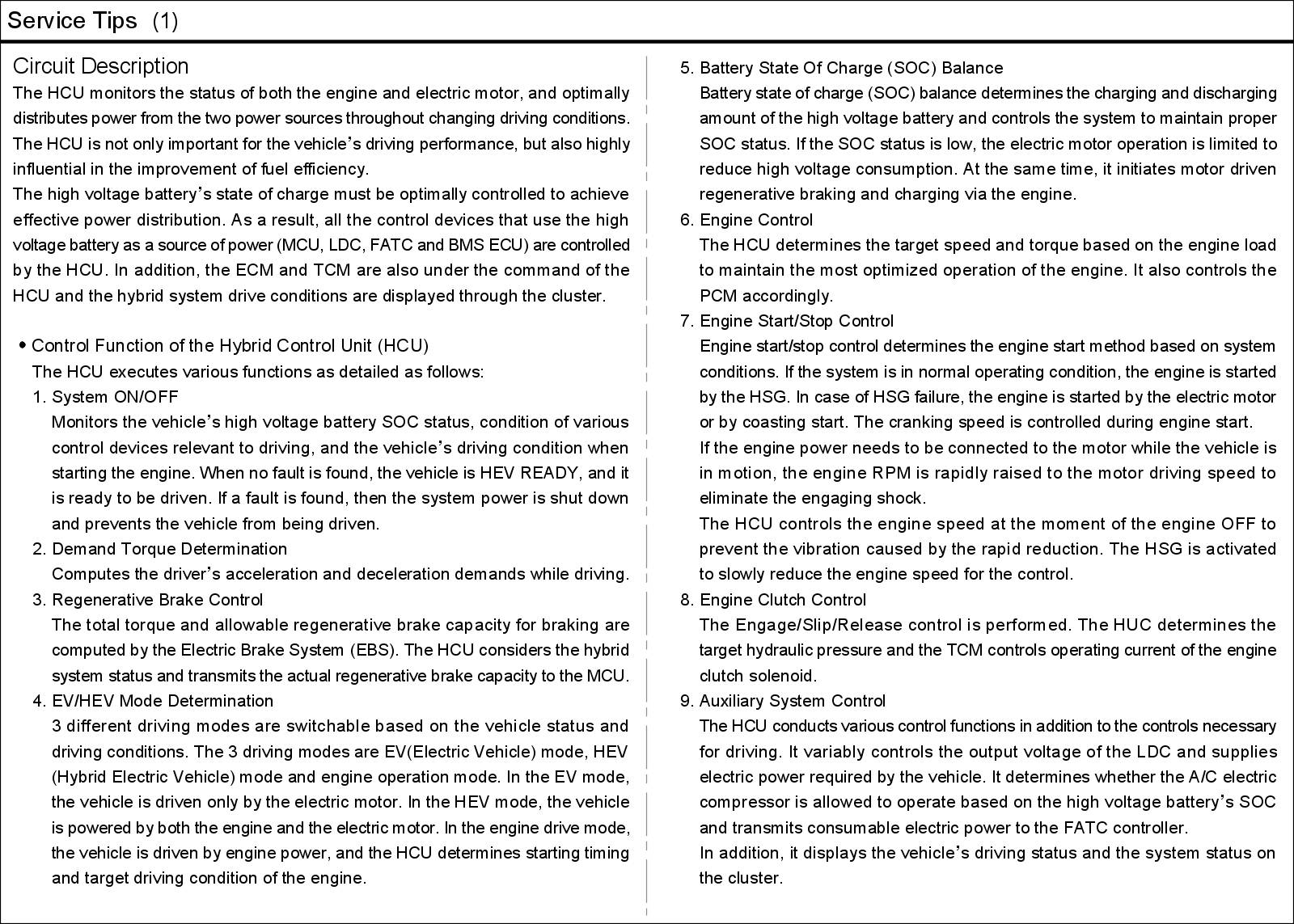

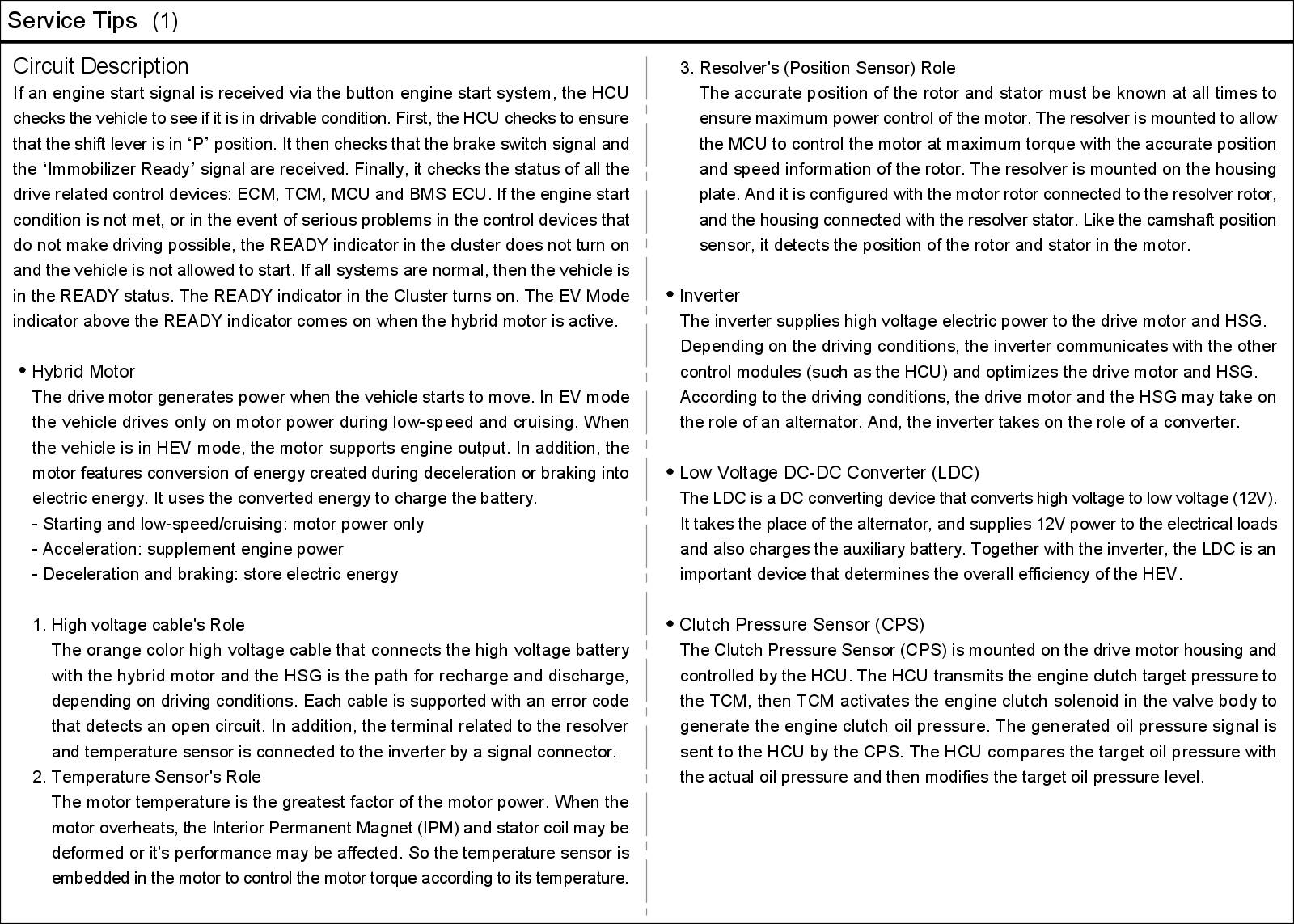

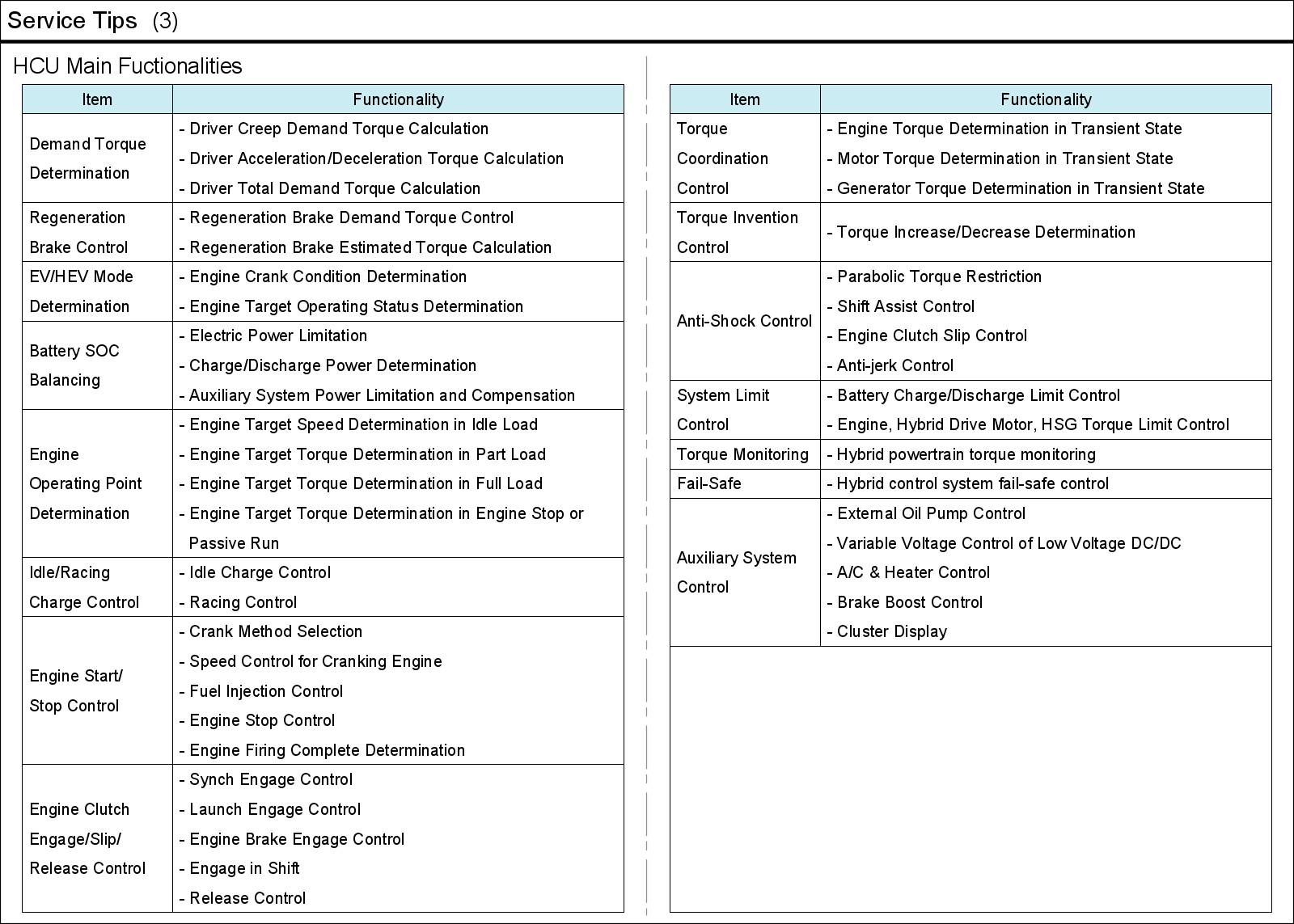

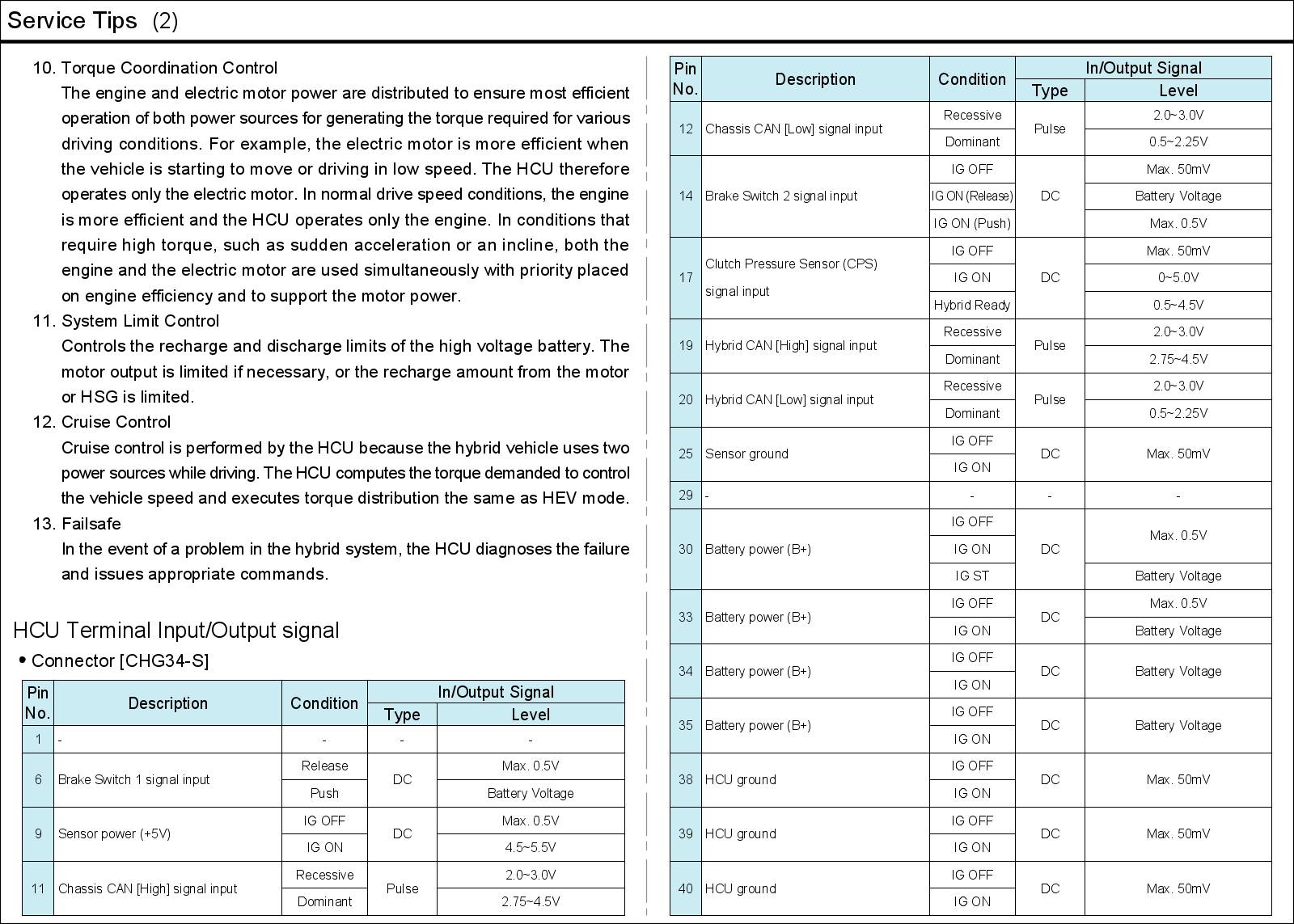

The Hybrid Power Control Unit (HPCU) is an integrated power conversion unit which consists of the two inverters, LDC, and HCU.
