Drive Motor Fuse: Service and Repair

Removal

WARNING:
This hybrid system uses a DC 270V voltage system. Be sure to follow safety instructions below. Failure to follow safety instructions may result in serious injury or electrocution .

1. Shut off the High Voltage circuit .
2. Remove the air cleaner assembly and duct .
3. Disconnect the power cable (A) from the HPCU.
(1) Pull the lever (B) in the direction of the arrow with the hook (C) pressed.
(2) Press the lever (D), and then pull the power cable connector.
4. Remove the cover (E).

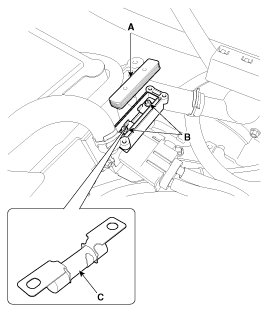

5. Remove the seal cover (A).
6. Remove the installation bolts (B), than remove the DC fuse (C) from the HPCU.






Installation

WARNING:
This hybrid system uses a DC 270V voltage system. Be sure to follow safety instructions below. Failure to follow safety instructions may result in serious injury or electrocution .

1. Installation is reverse of removal.
