Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Drive Motor/Generator >> Diagrams >> Connector Views >> Hybrid Motor

Hybrid Motor

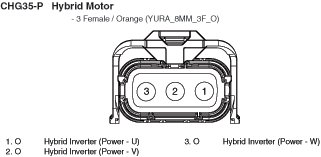

CHG35-P Hybrid Motor:

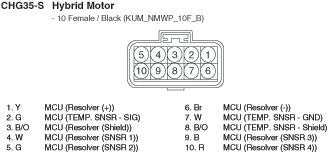

CHG35-S Hybrid Motor:
