High Voltage Battery System

Specification

Battery Pack Assembly
- Type: LiPB (Lithium ion Polymer Battery), Pouch type
- Specification

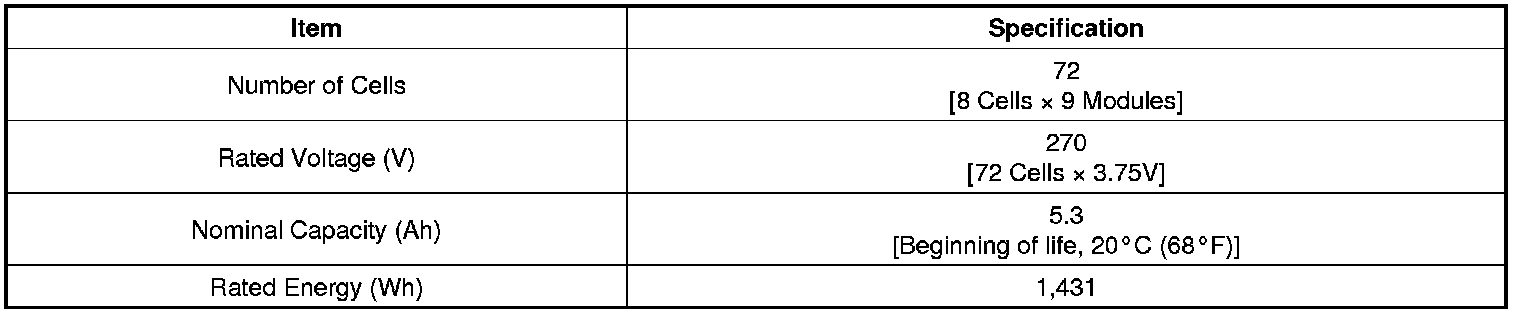

[General Specification]






NOTE:
1. Rated Voltage: Terminal voltage at Rated 1C discharge, SOC 55%, 20°C (68°F)
2. Rated Energy = Rated Voltage • Nominal Capacity

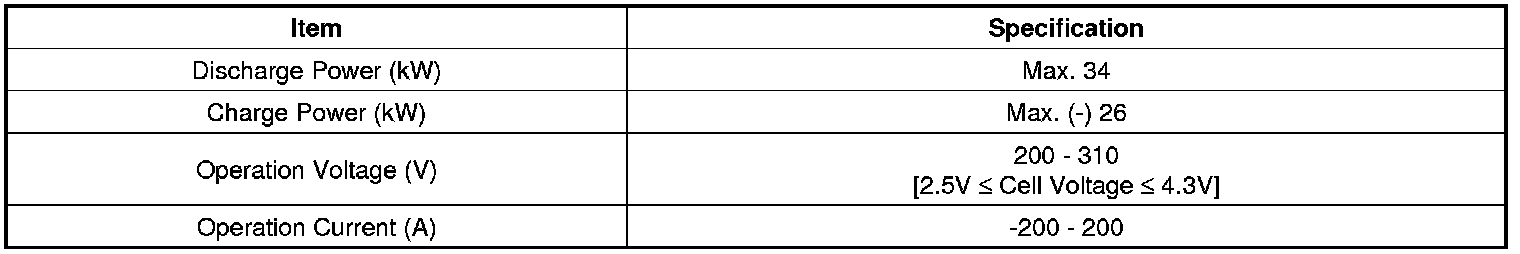

[Operational Specification]

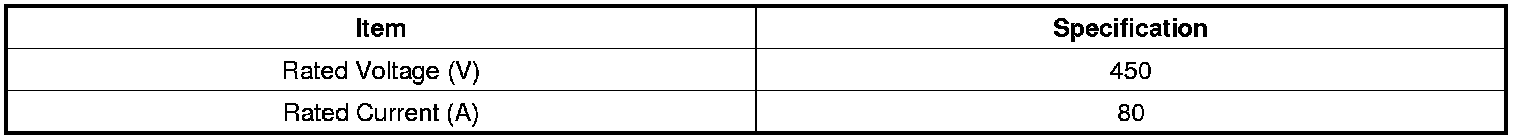

Power Relay Assembly (PRA)
- Specification
