High Voltage Battery Control System

Specification

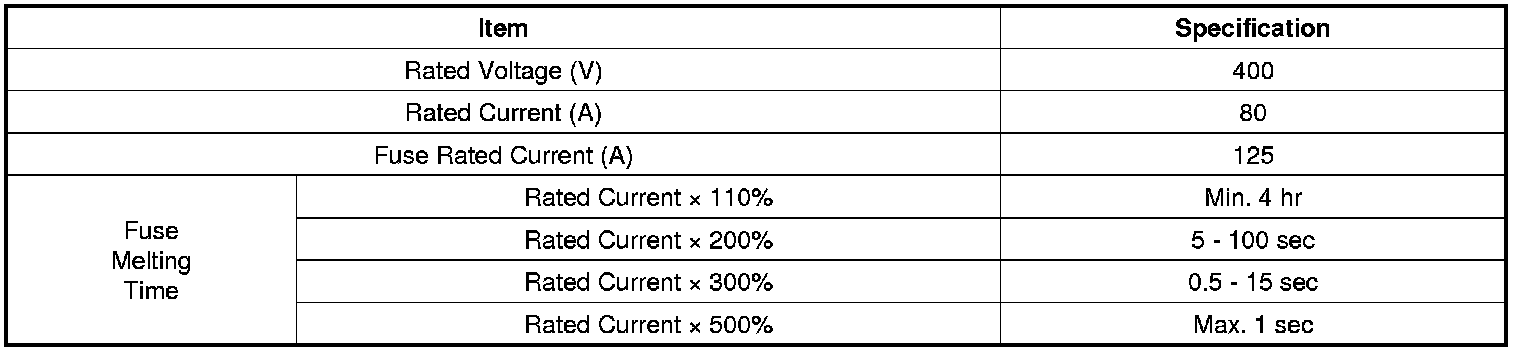

Safety Plug
- Specification

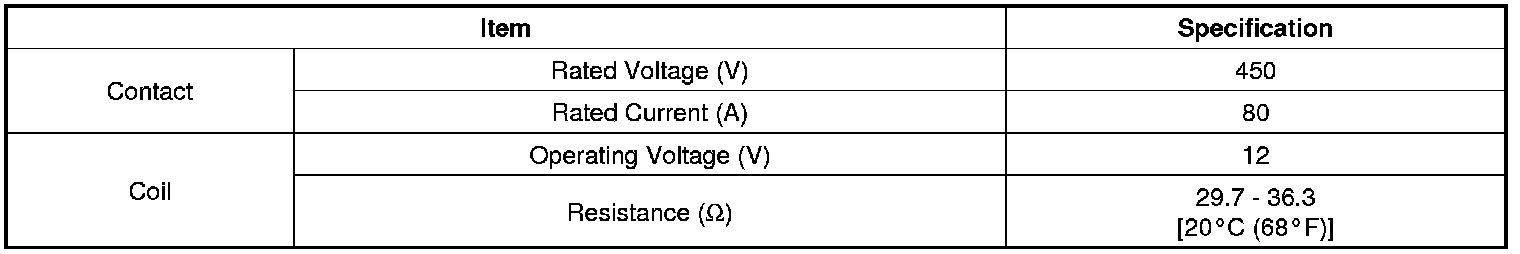

Main Relay
- Specification






Pre-Charge Relay
- Specification

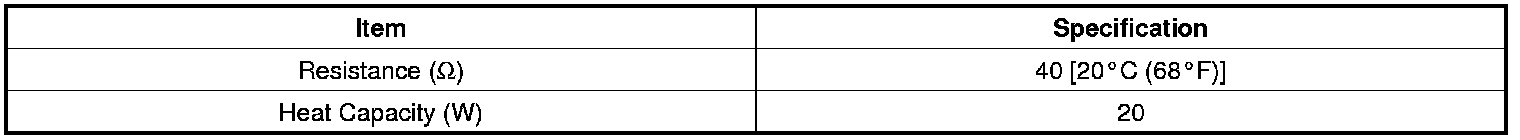

Pre-Charge Resistor
- Specification

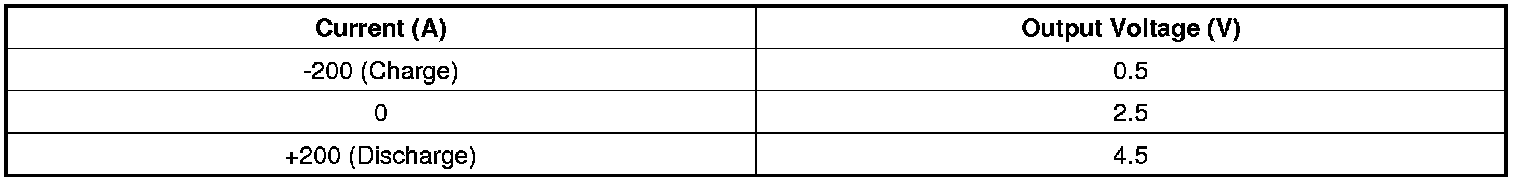

Battery Current Sensor
- Specification






Battery Temperature Sensor
- Type: Thermistor type
- Specification

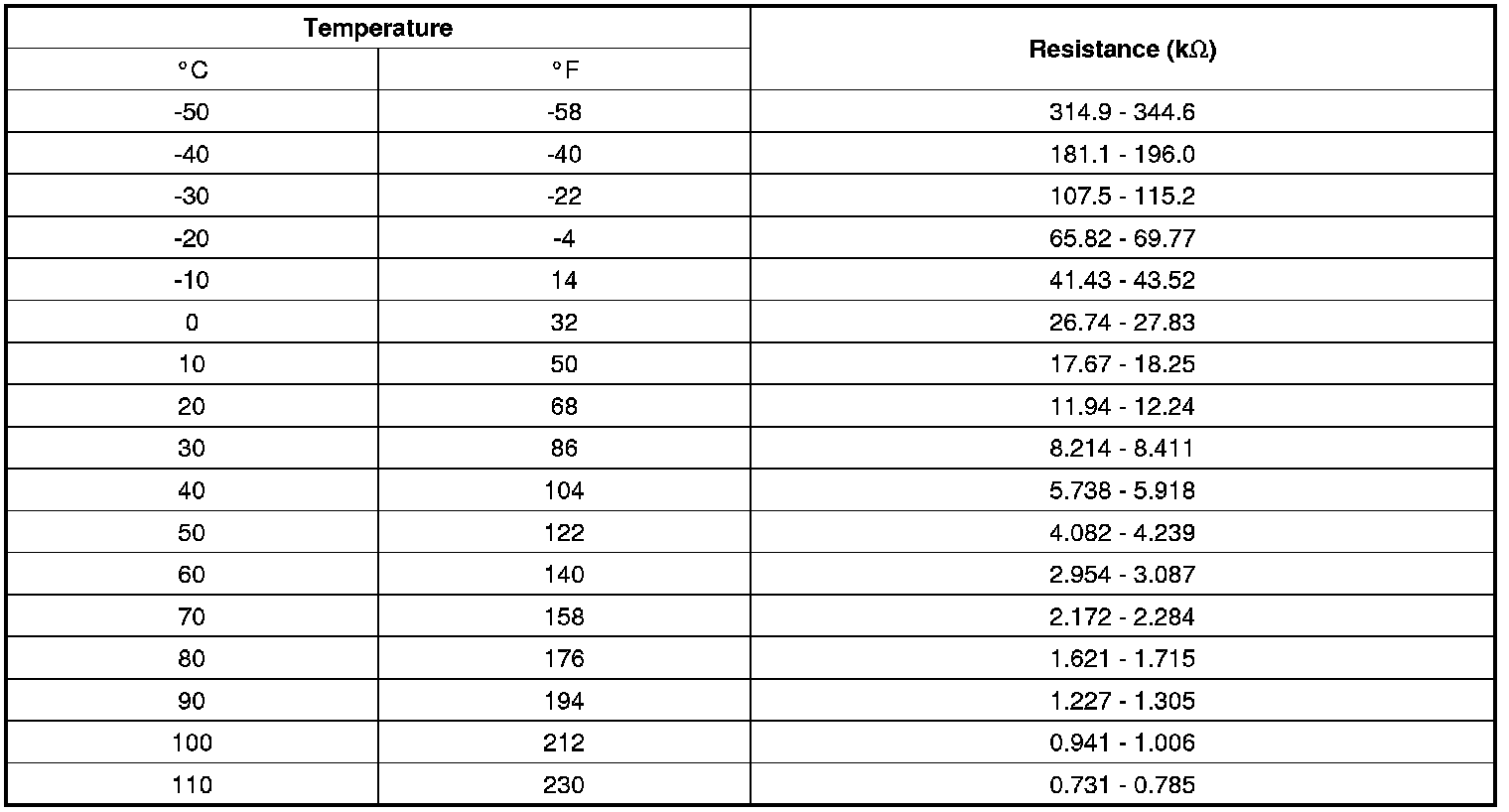

[Air Inlet]

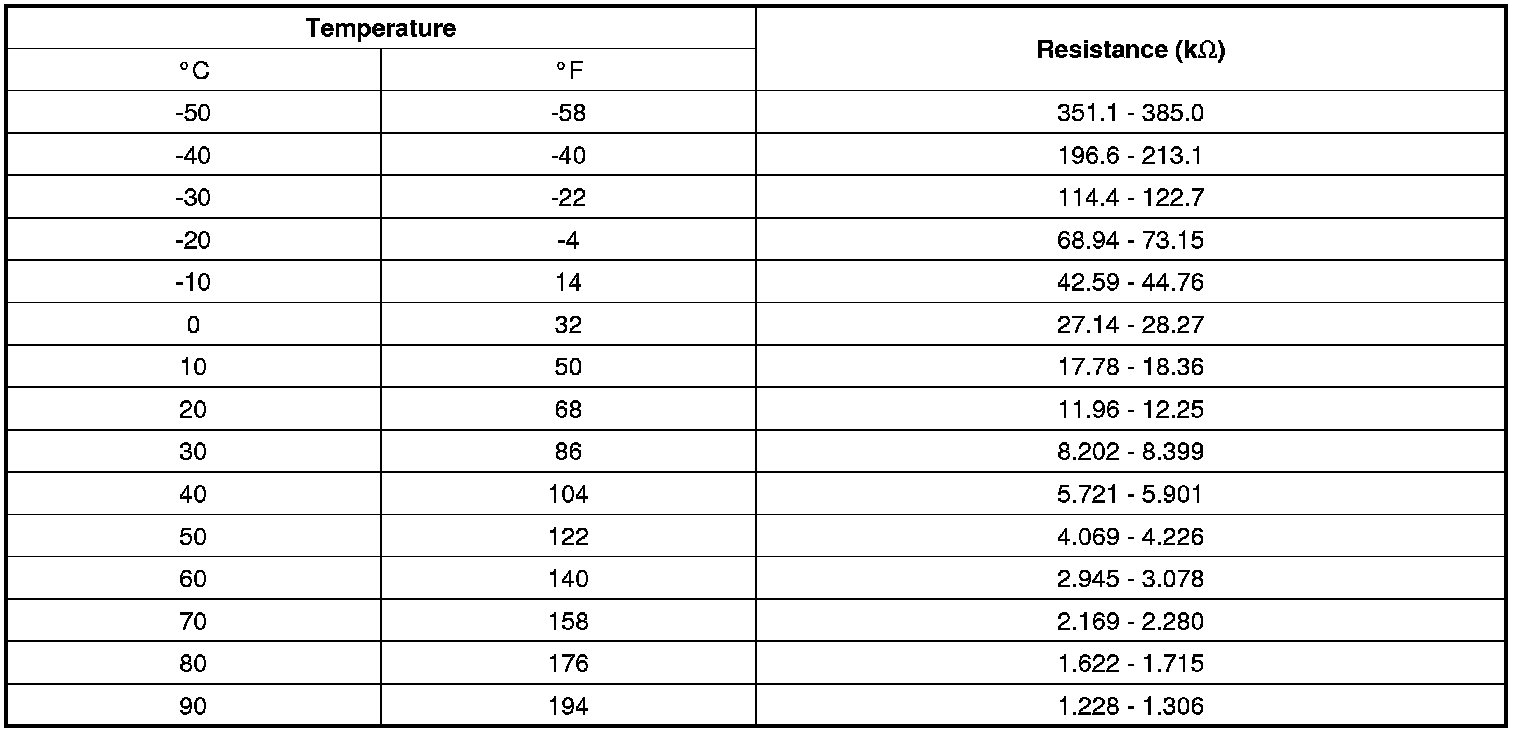

[Cell]

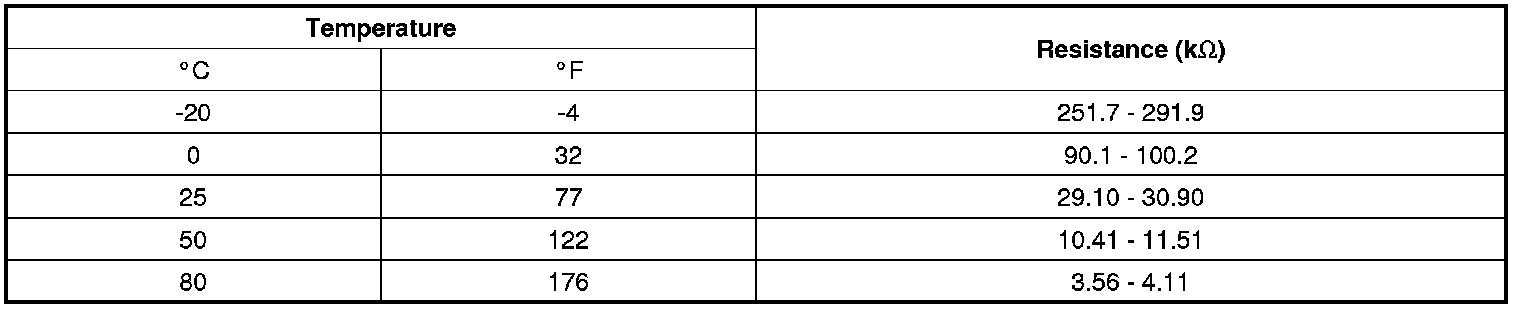

Battery Ambient Sensor
- Type: Thermistor type
- Specification
