High Voltage Battery Control System

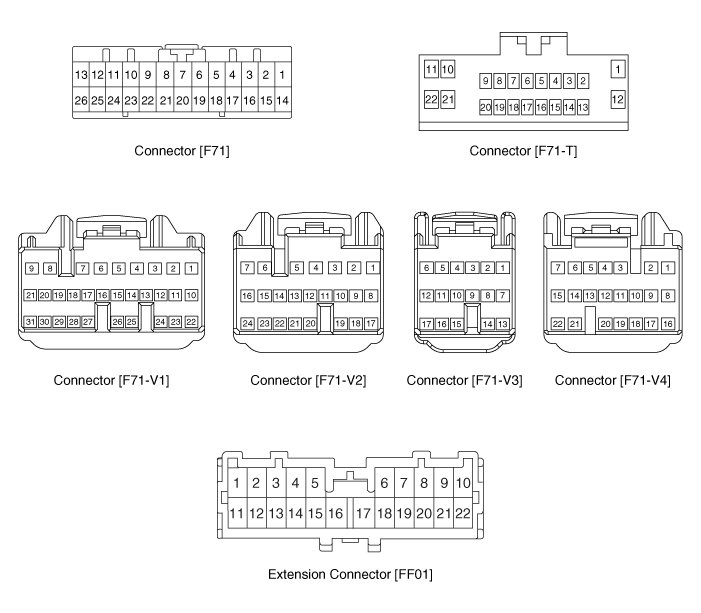

BMS ECU Terminal And Input/Output Signal

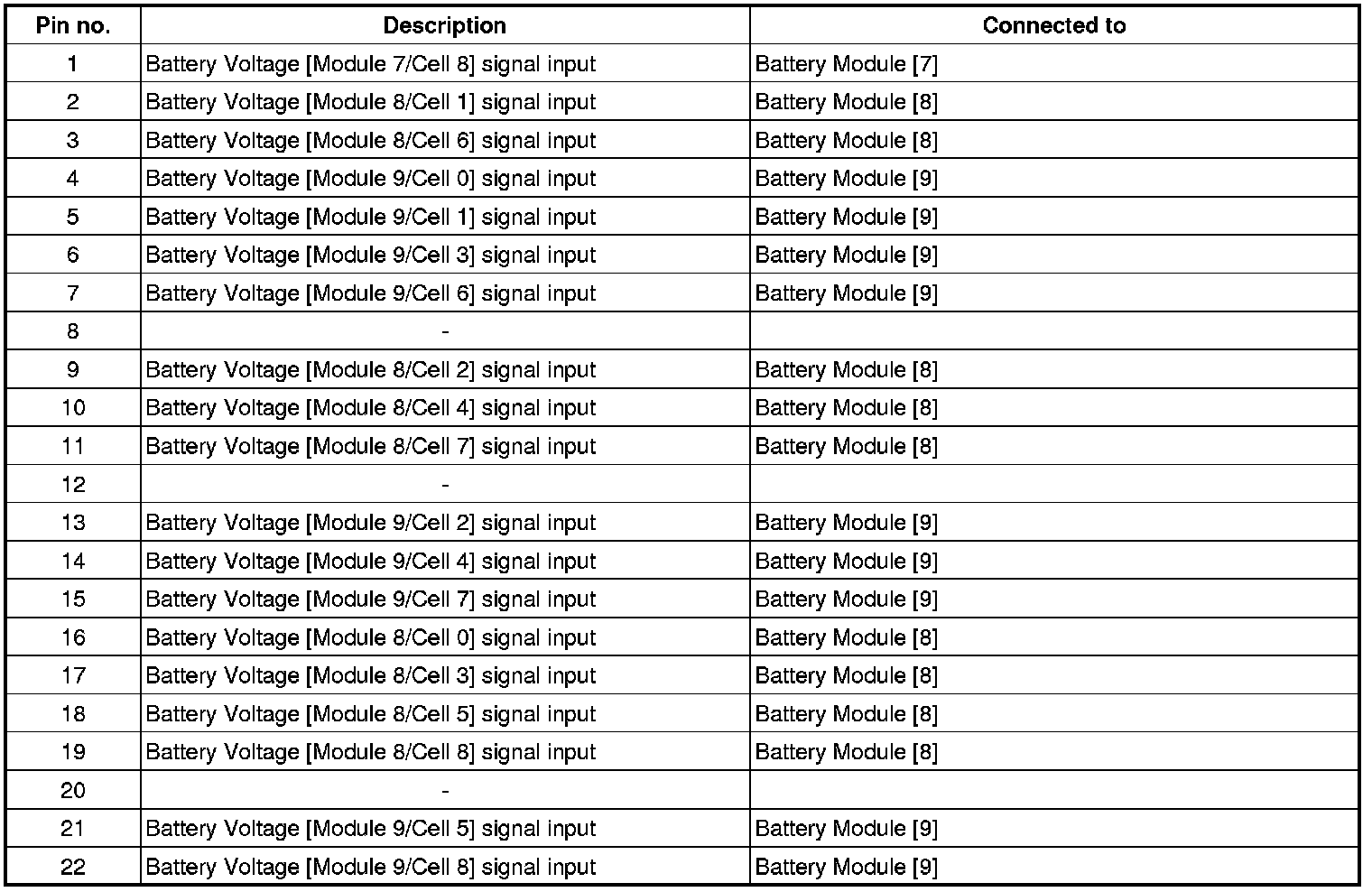

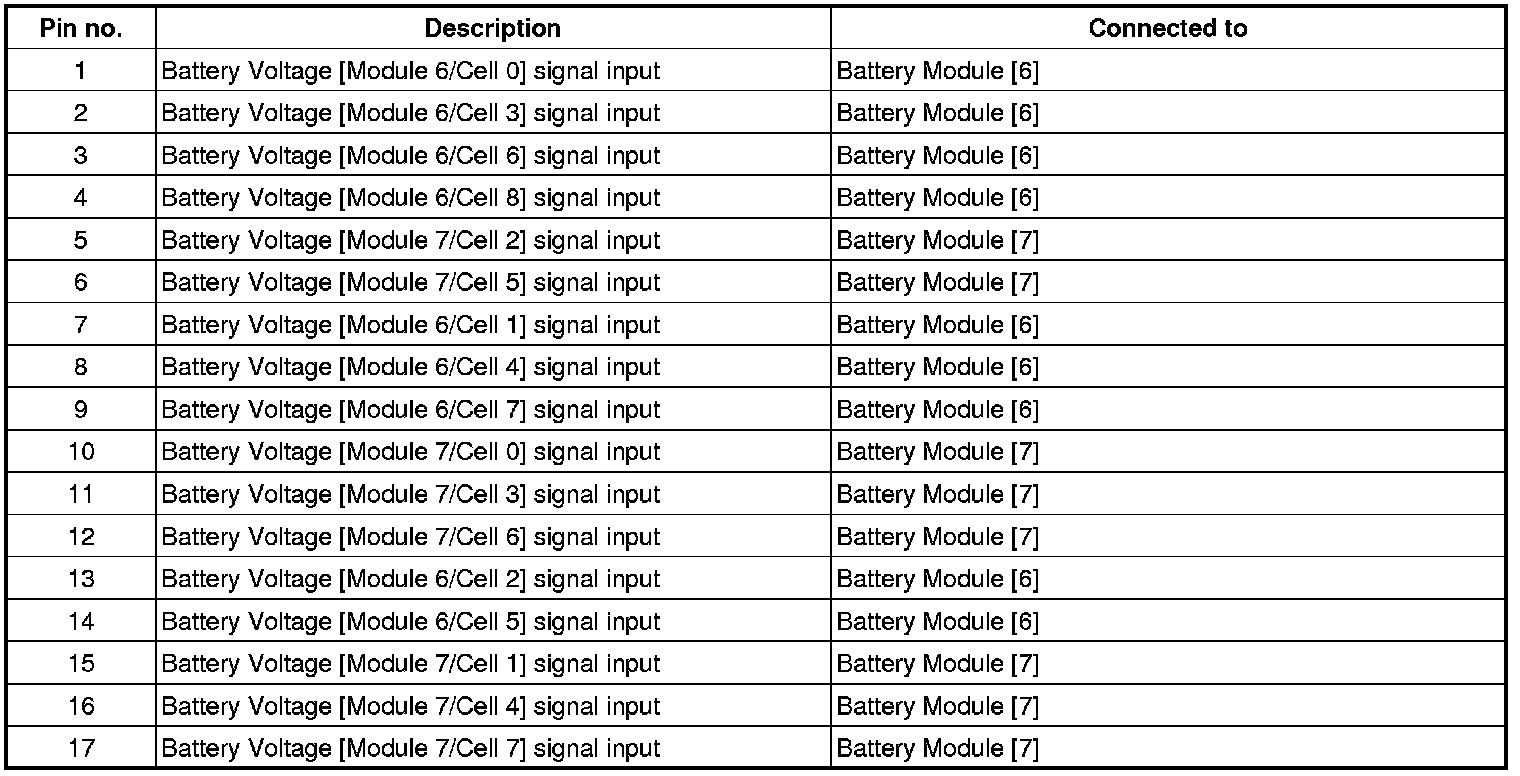

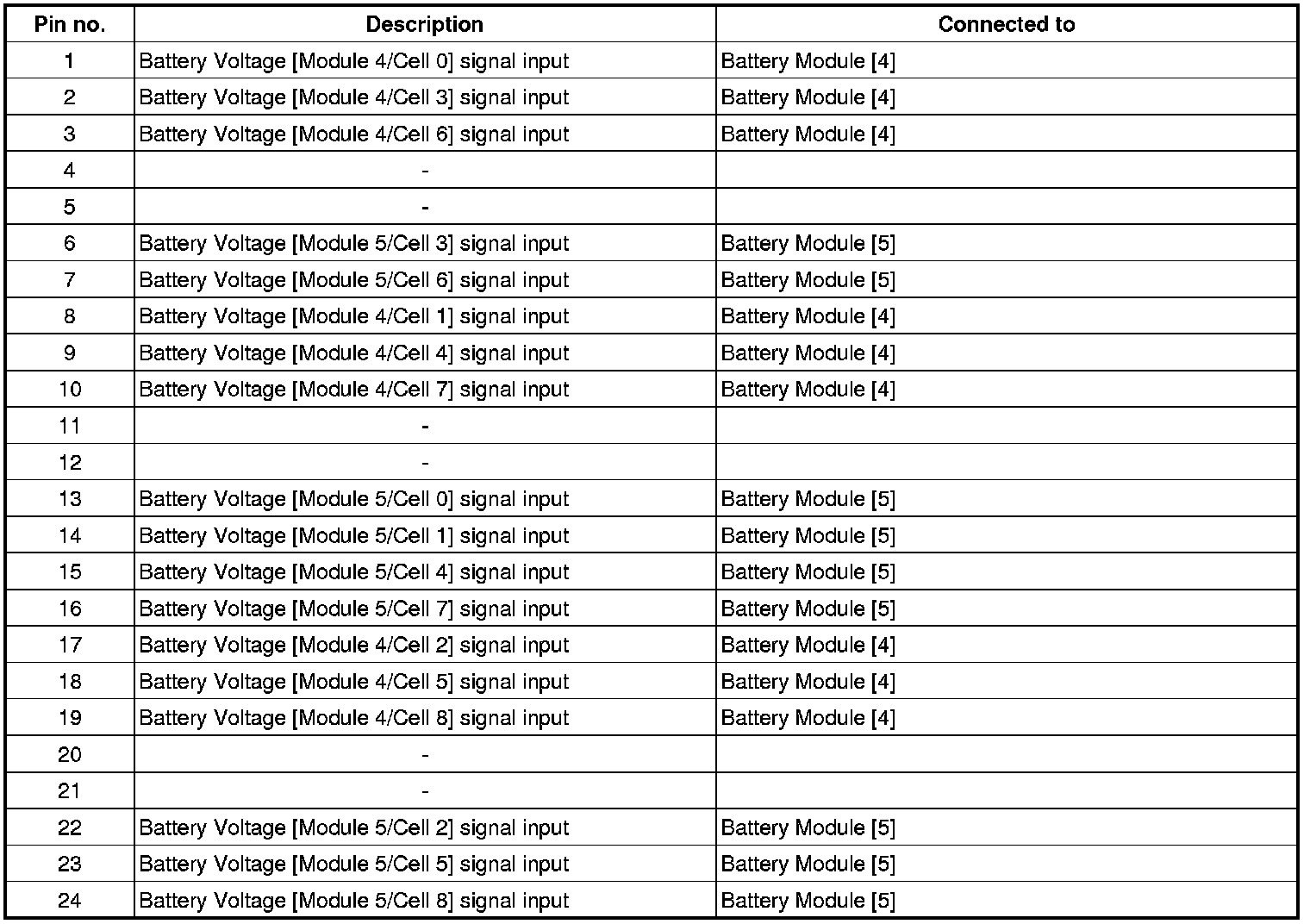

Terminal Function

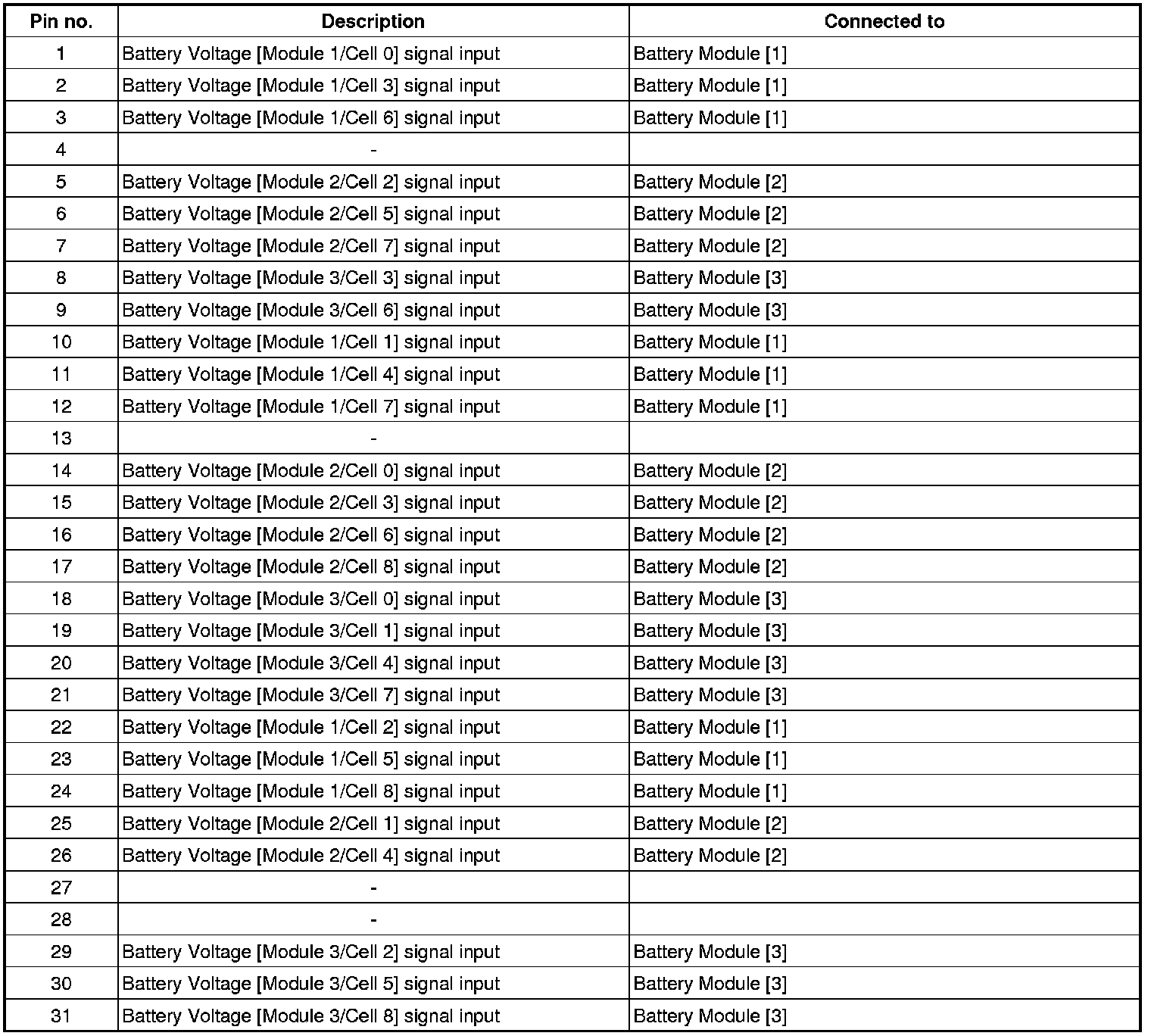

Connector [F71-V1]





Connector [F71-V2]





Connector [F71-V3]





Connector [F71-V4]

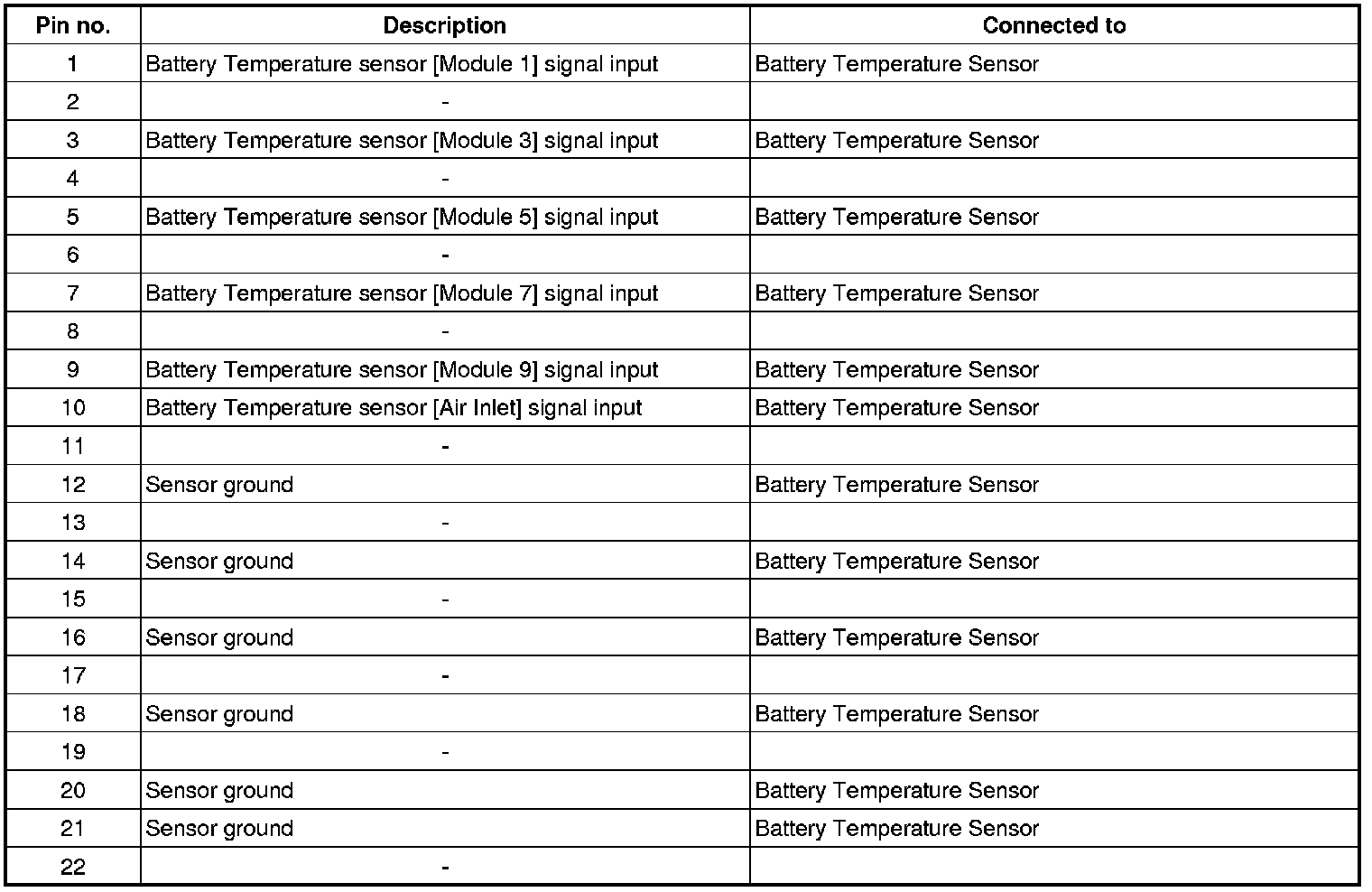

Connector [F71-T]

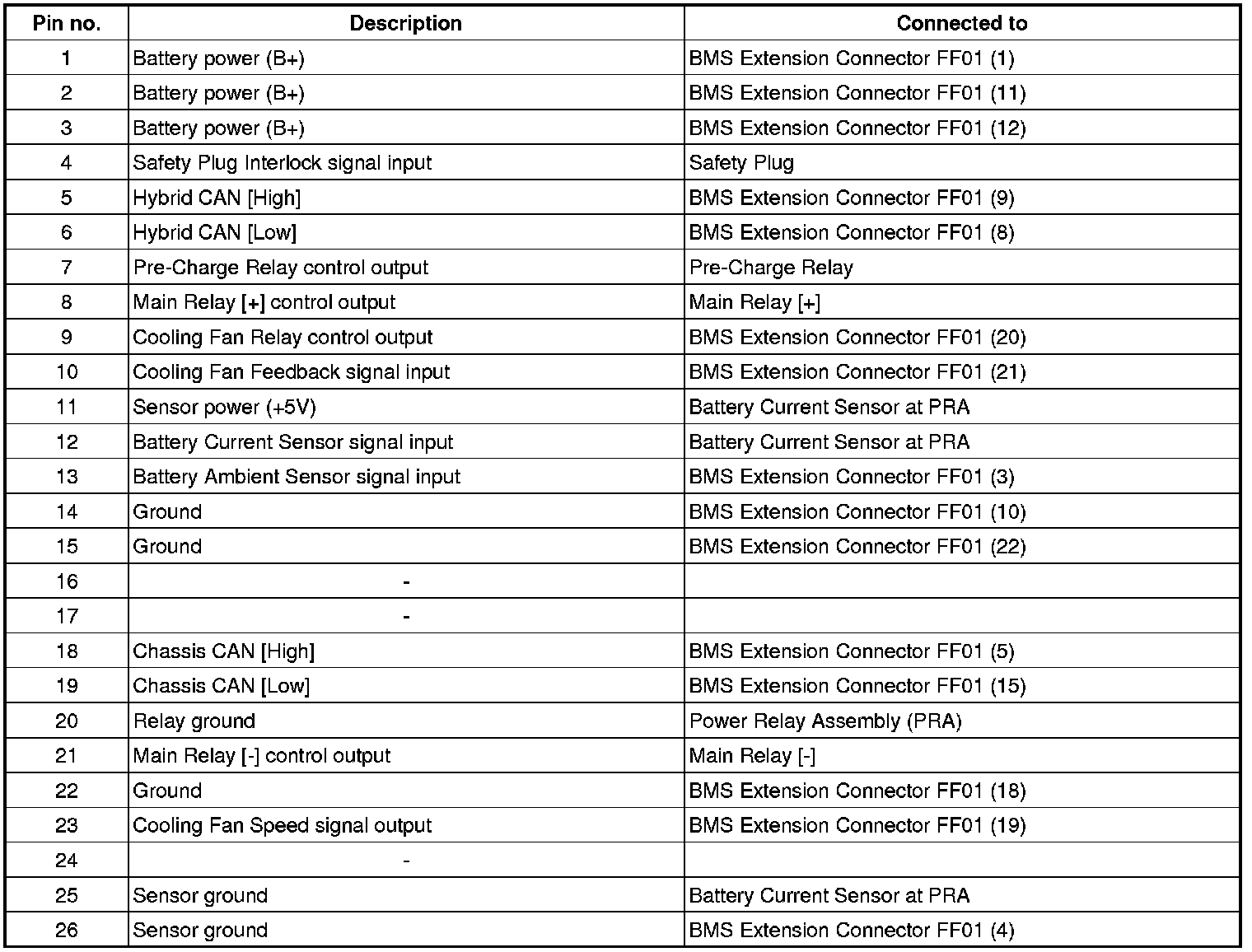

Connector [F71]

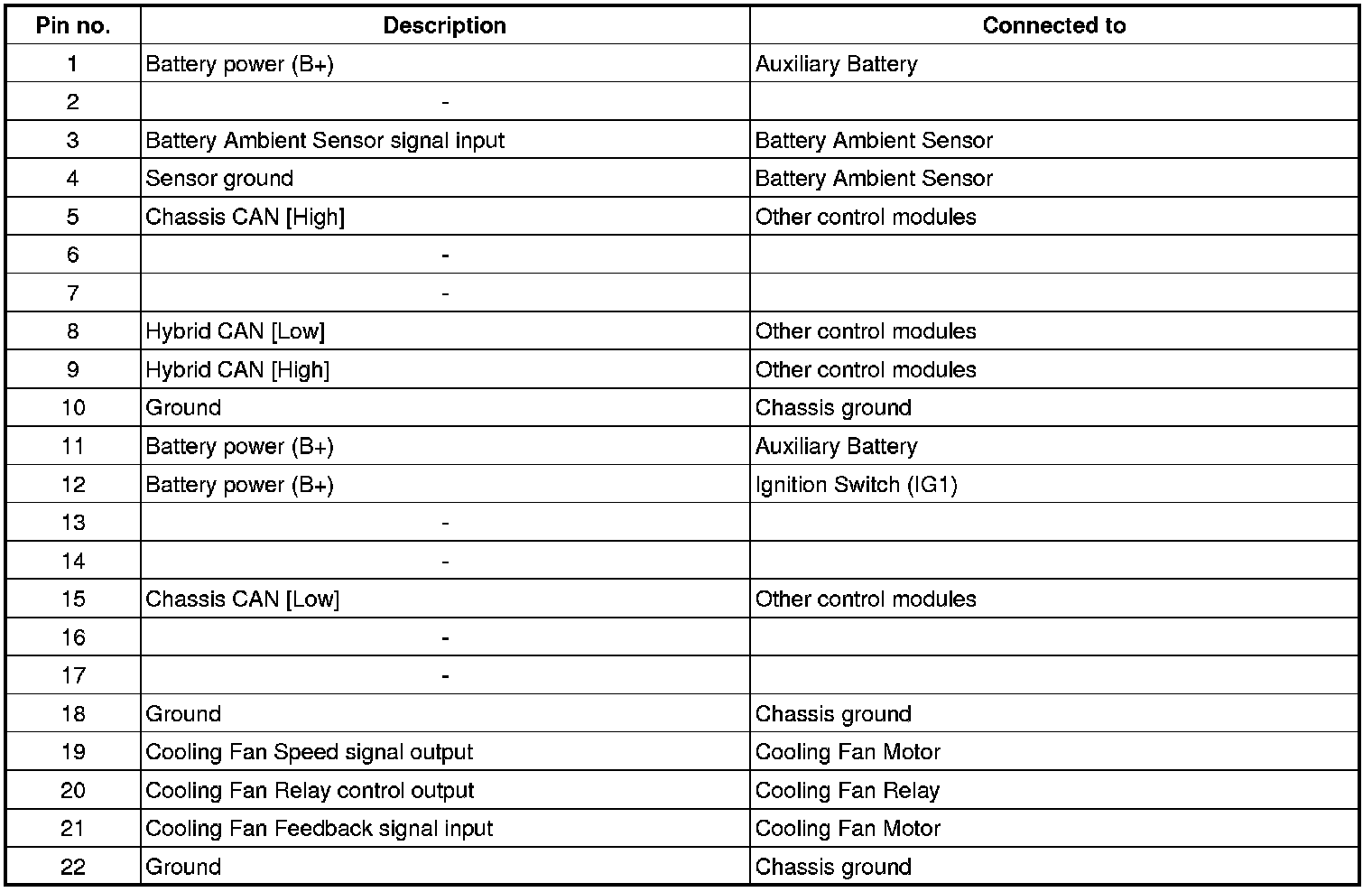

BMS Extension Connector [FF01]





Input/Output Signal

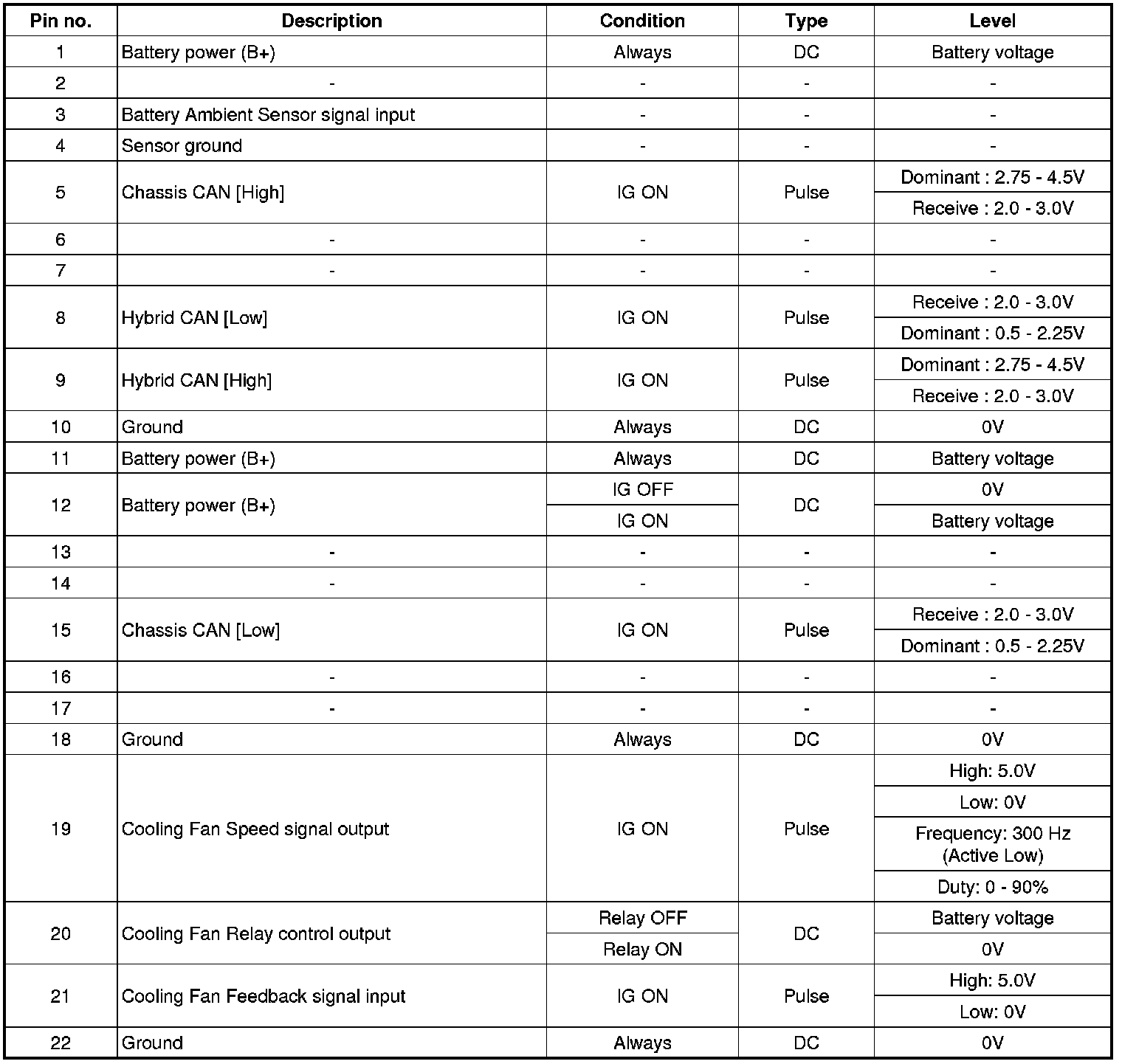

BMS Extension Connector [FF01]

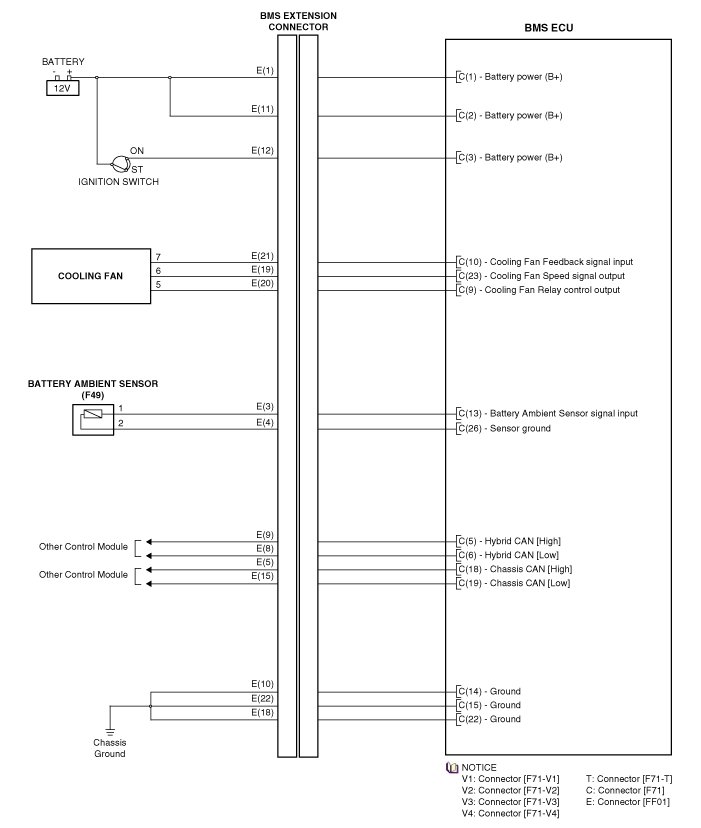

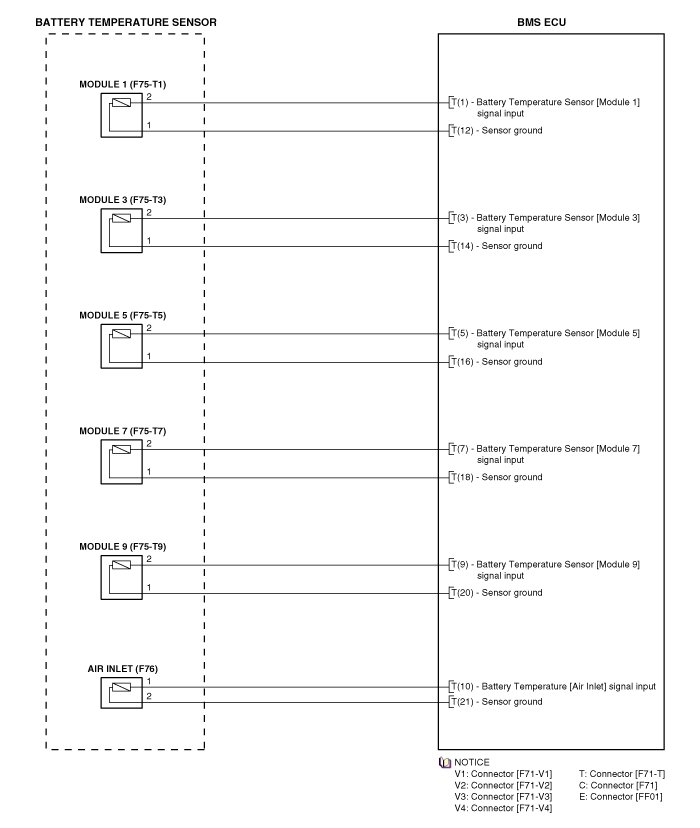

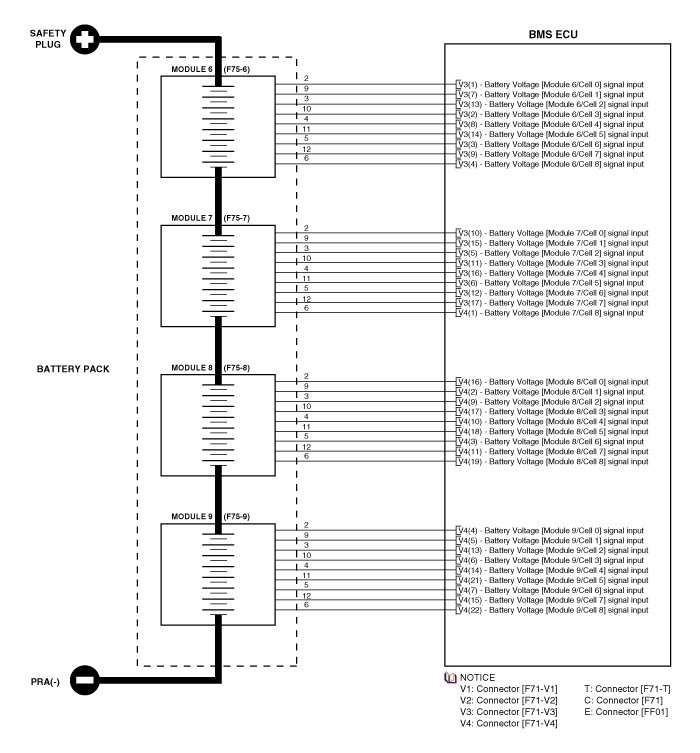

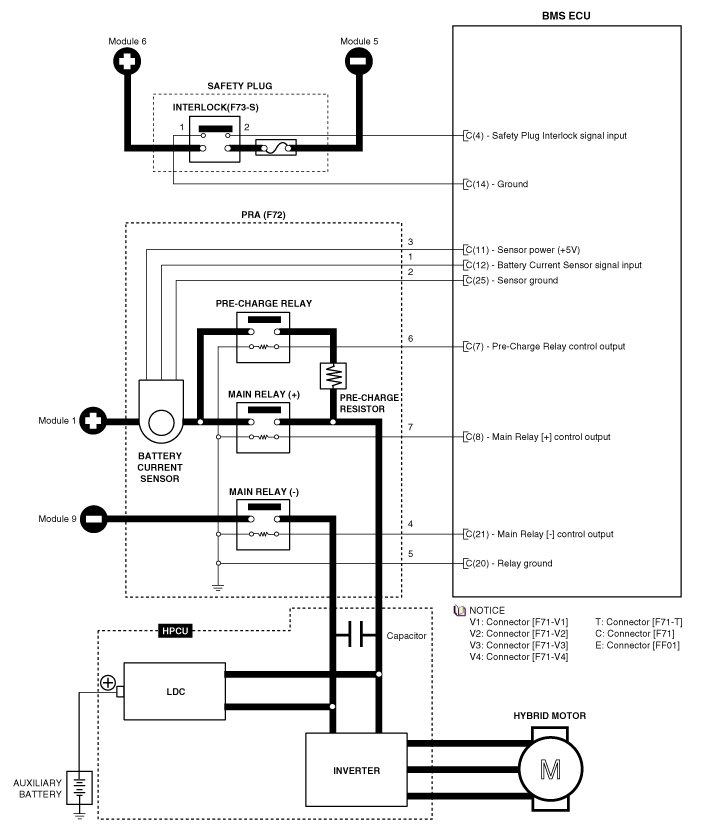

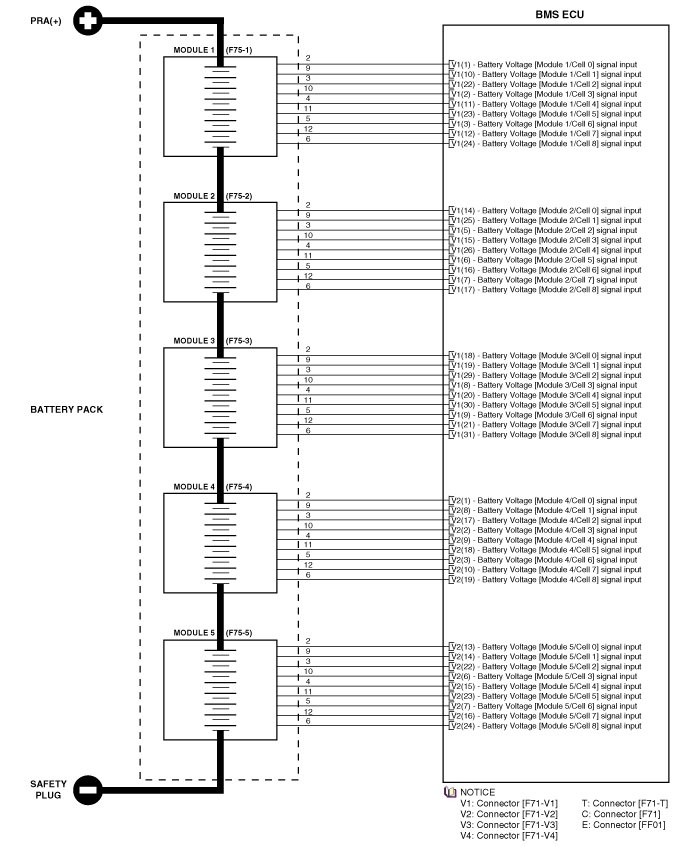

Circuit Diagram
