HCU (Hybrid Control Unit)





HCU Terminal And Input/Output Signal

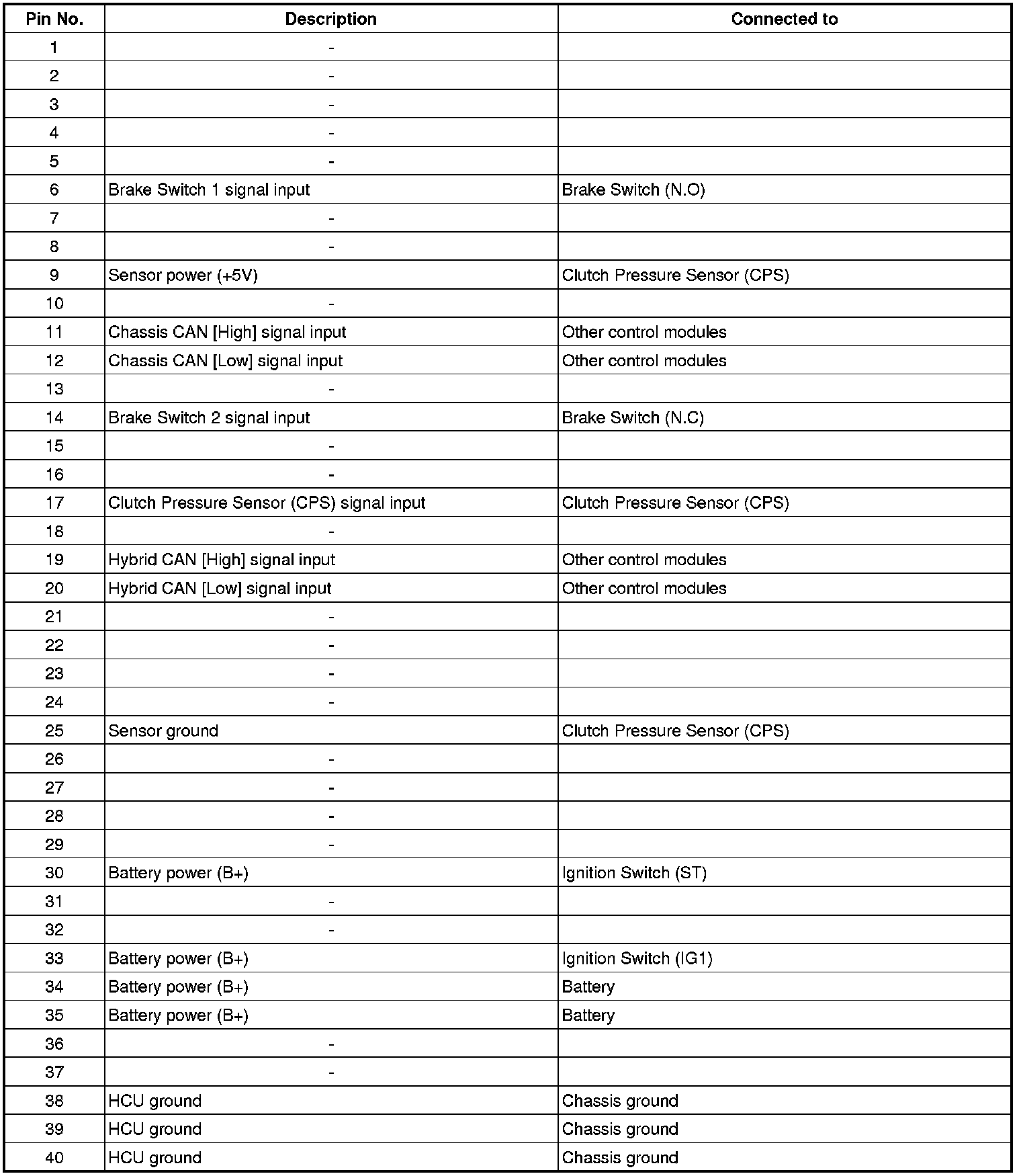

Terminal Function

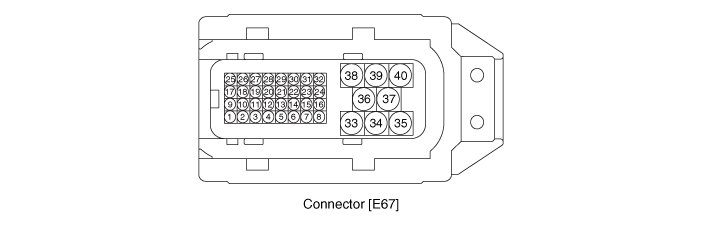

Connector [E67]

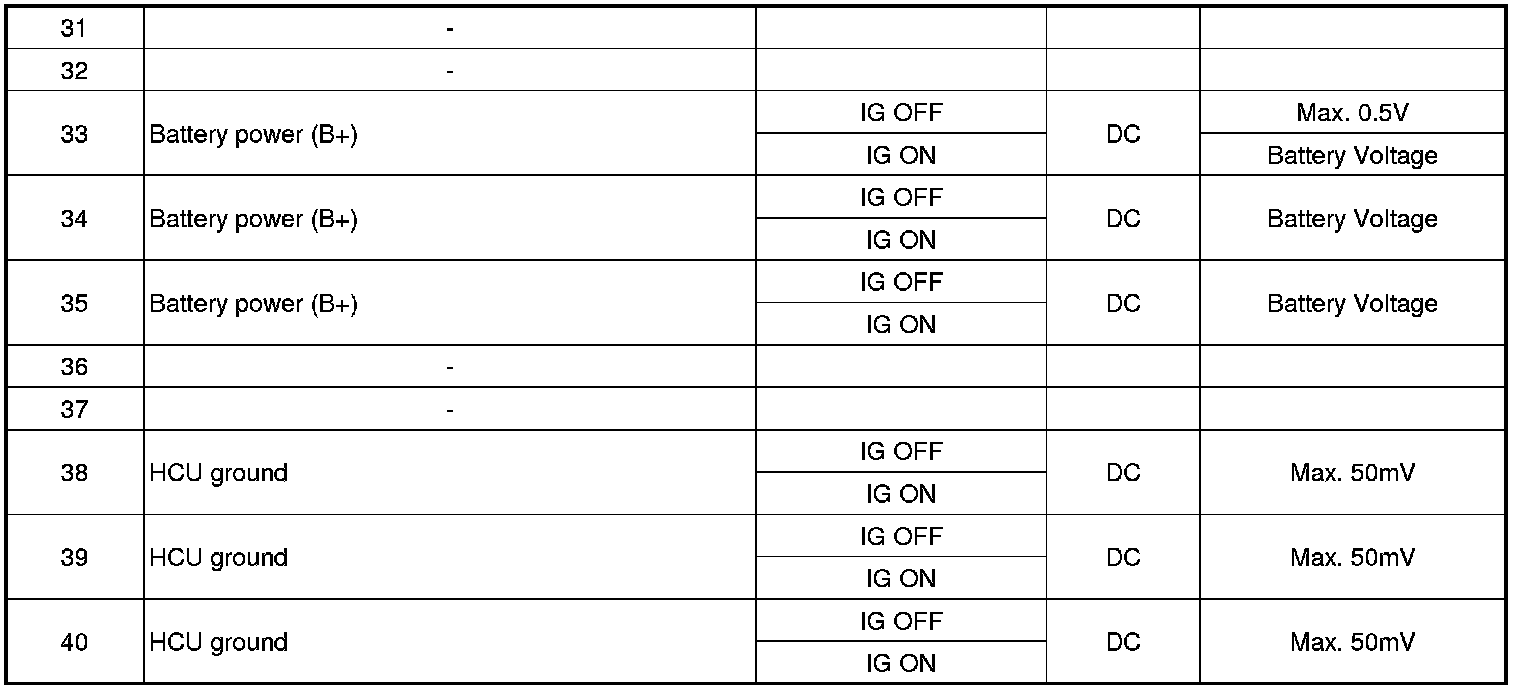

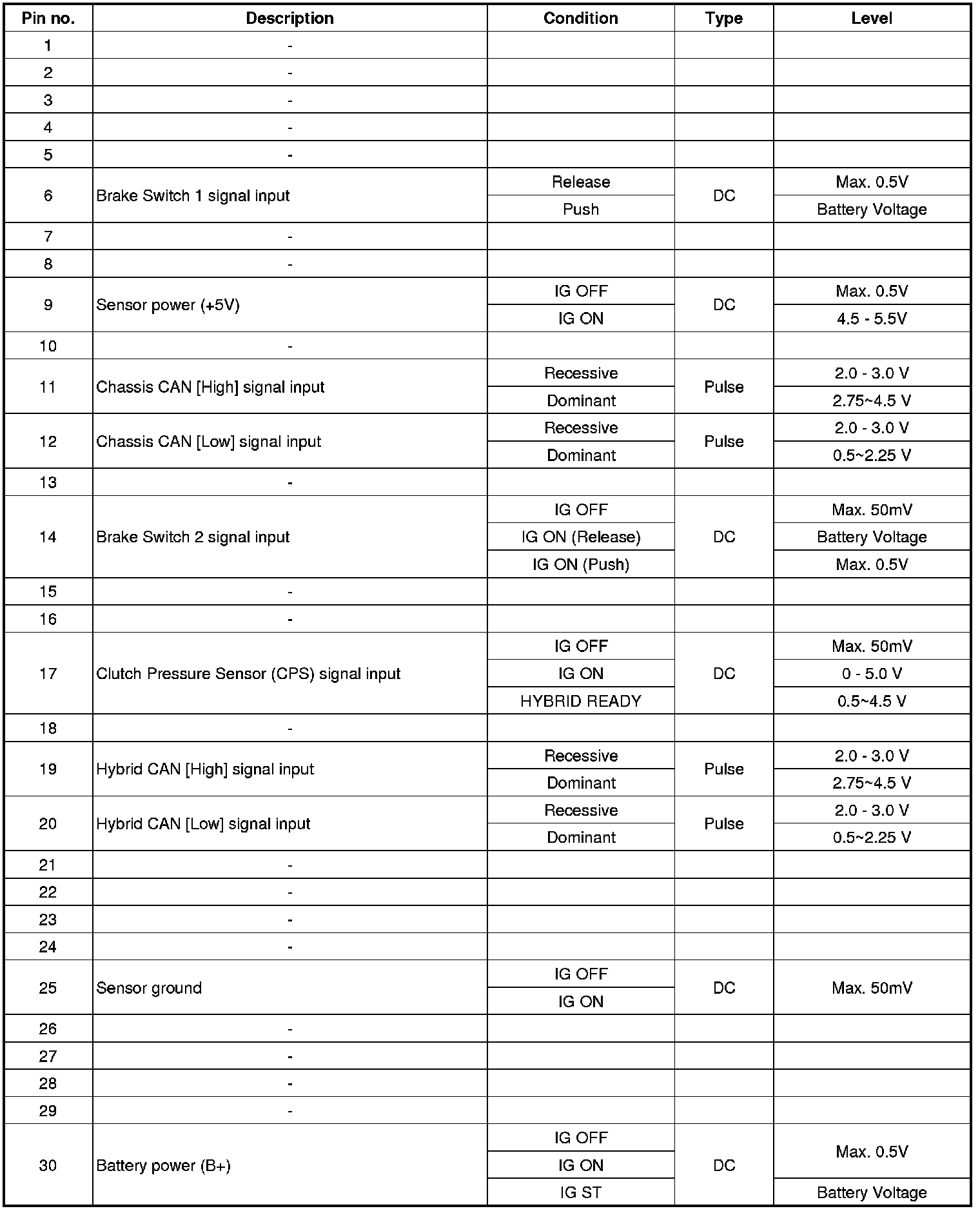

Input/Output signal
Connector [E67]

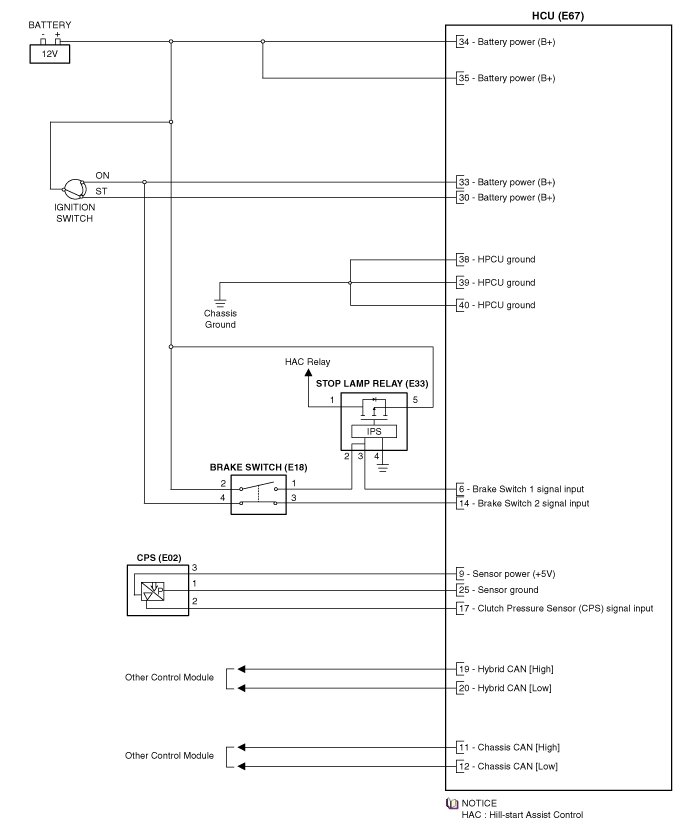

Circuit Diagram
