Diagram Set SD971 (A/C Control System)

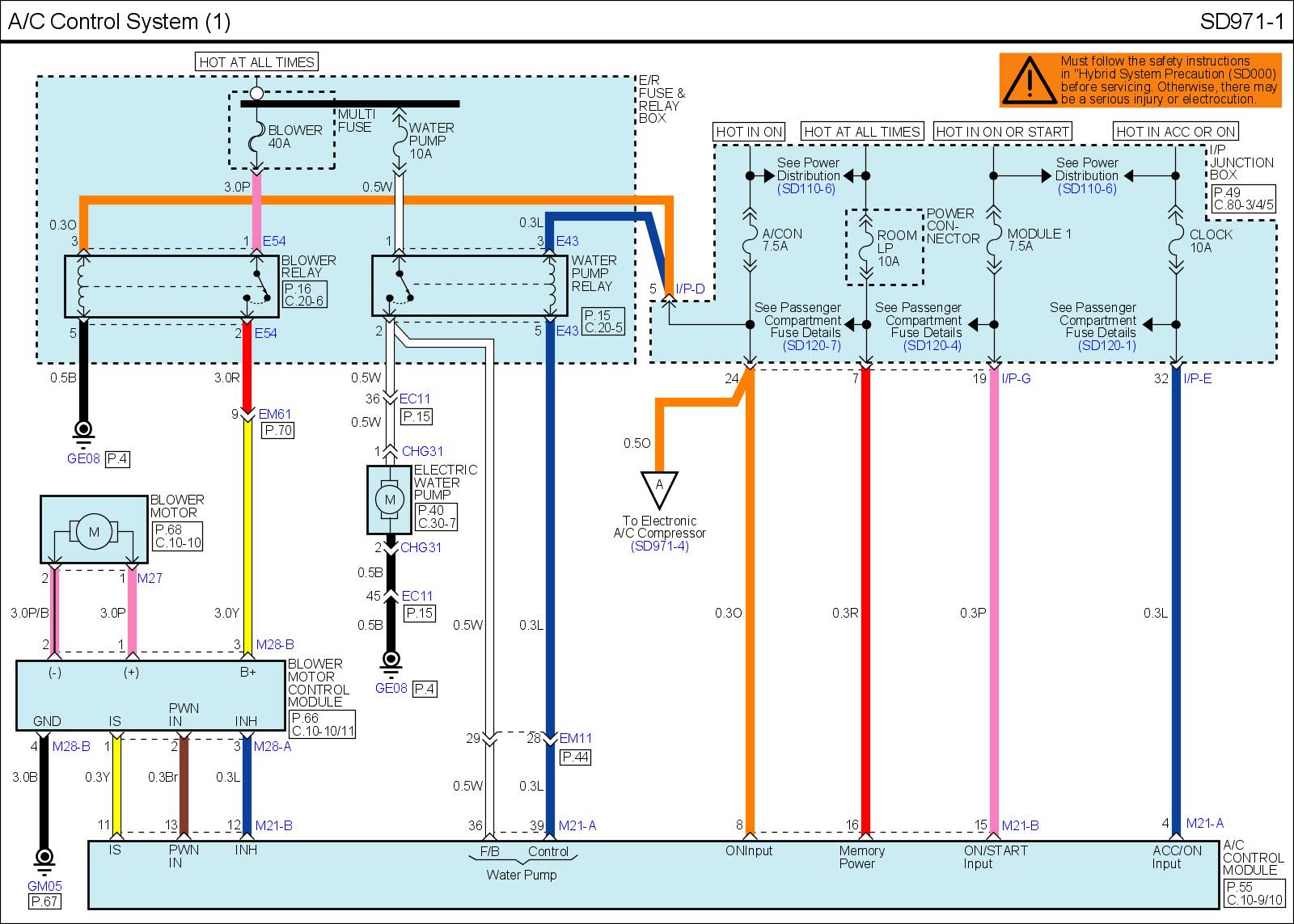

SD971-1 A/C Control System (1):

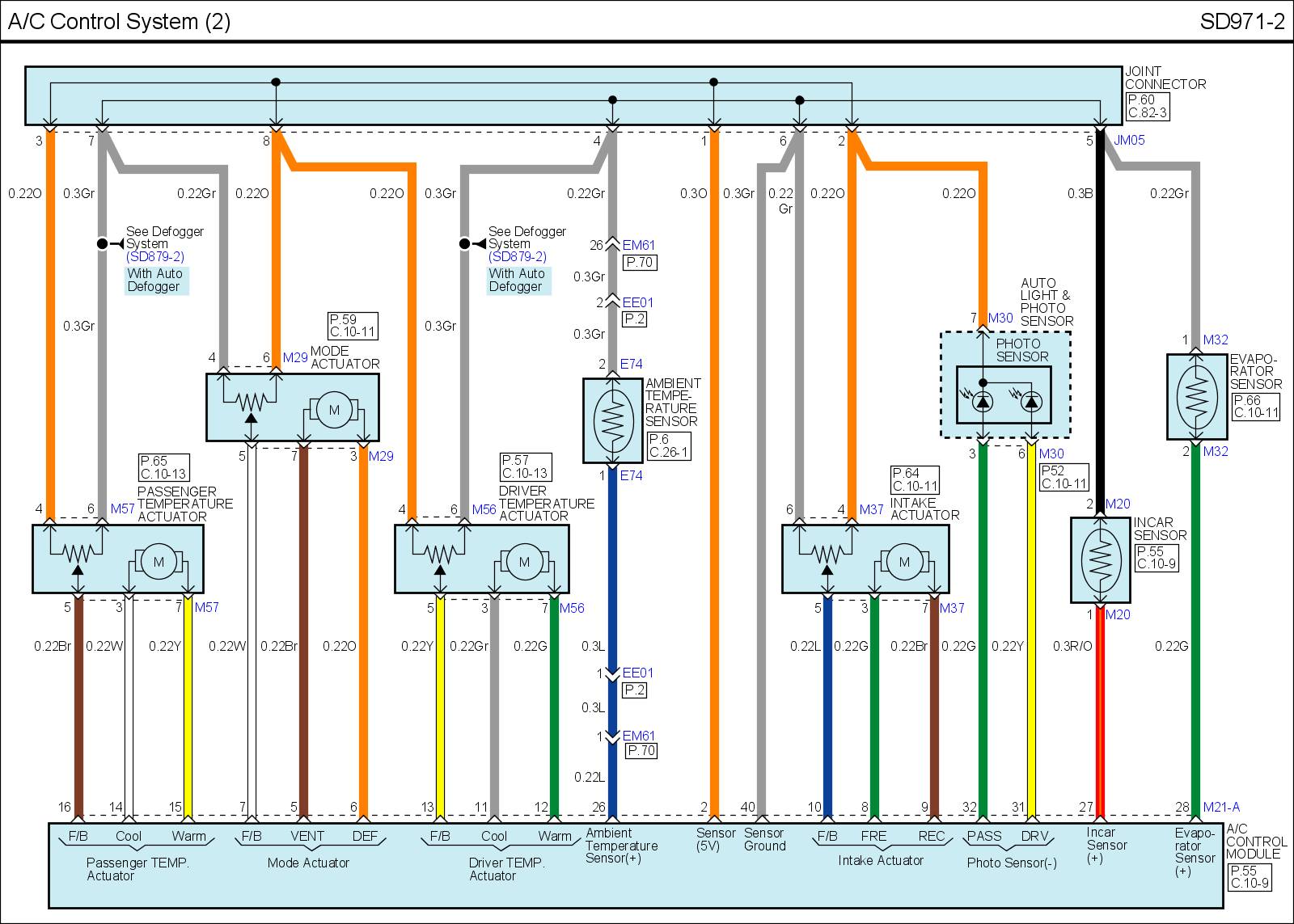

SD971-2 A/C Control System (2):

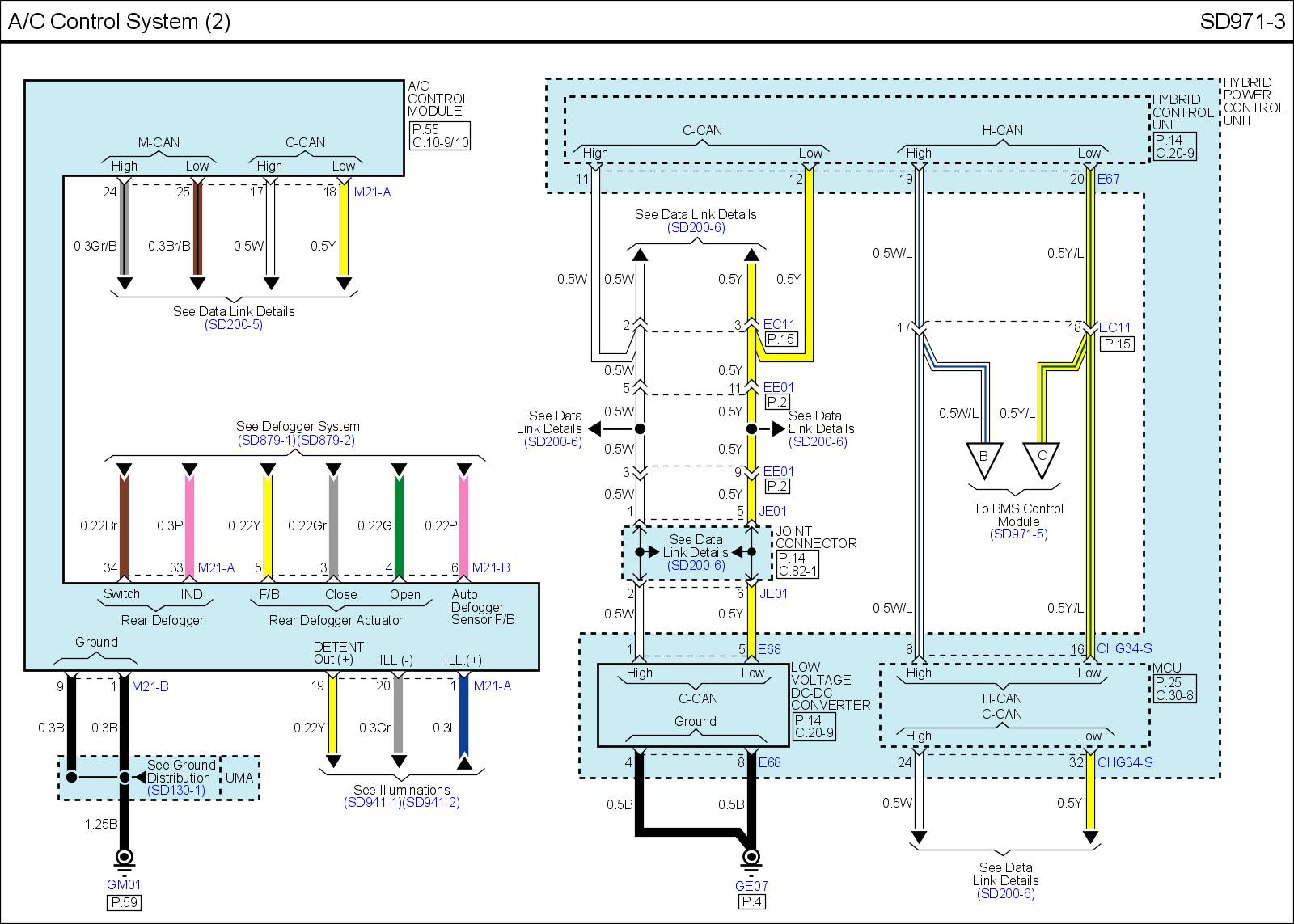

SD971-3 A/C Control System (2):

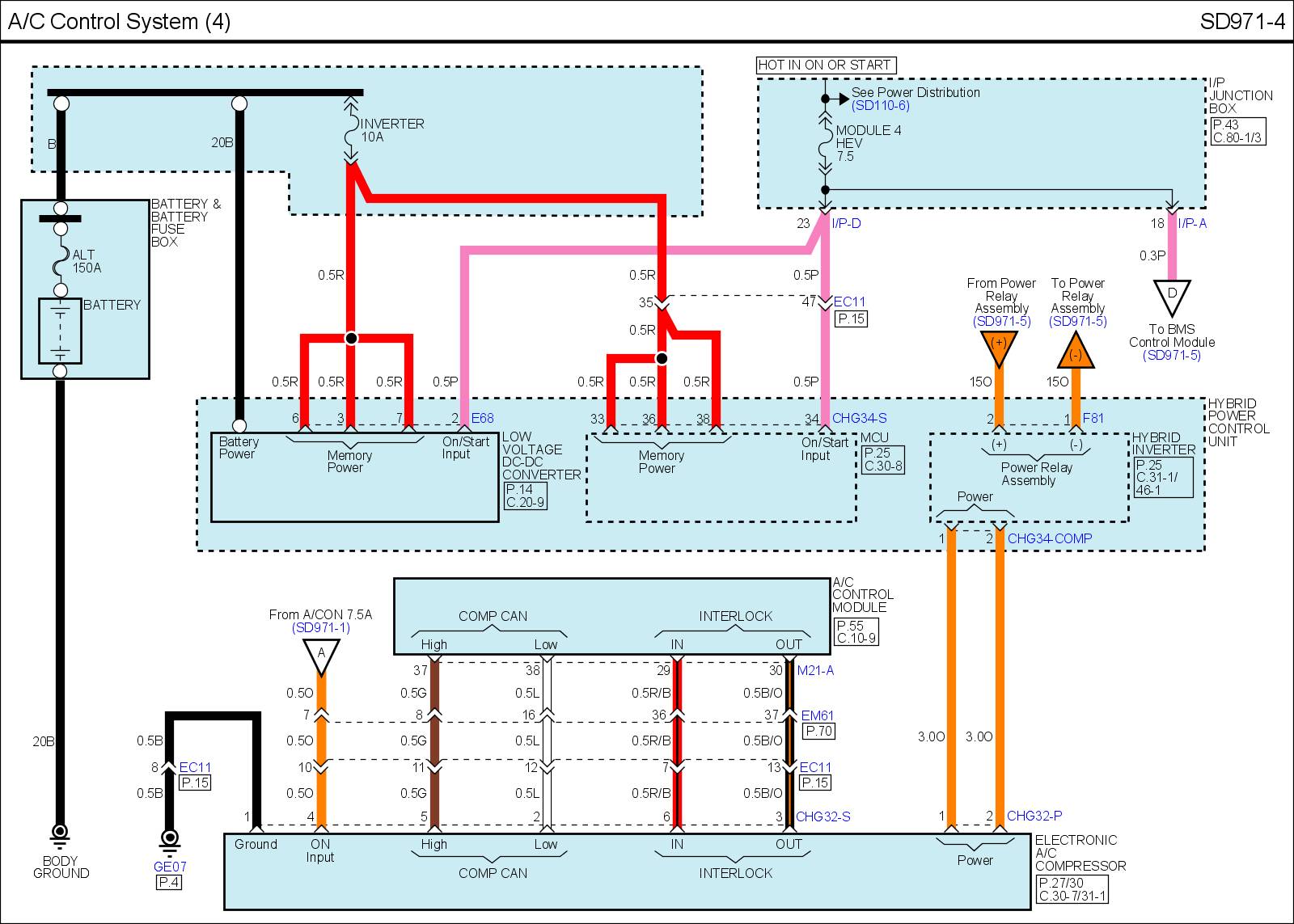

SD971-4 A/C Control System (4):

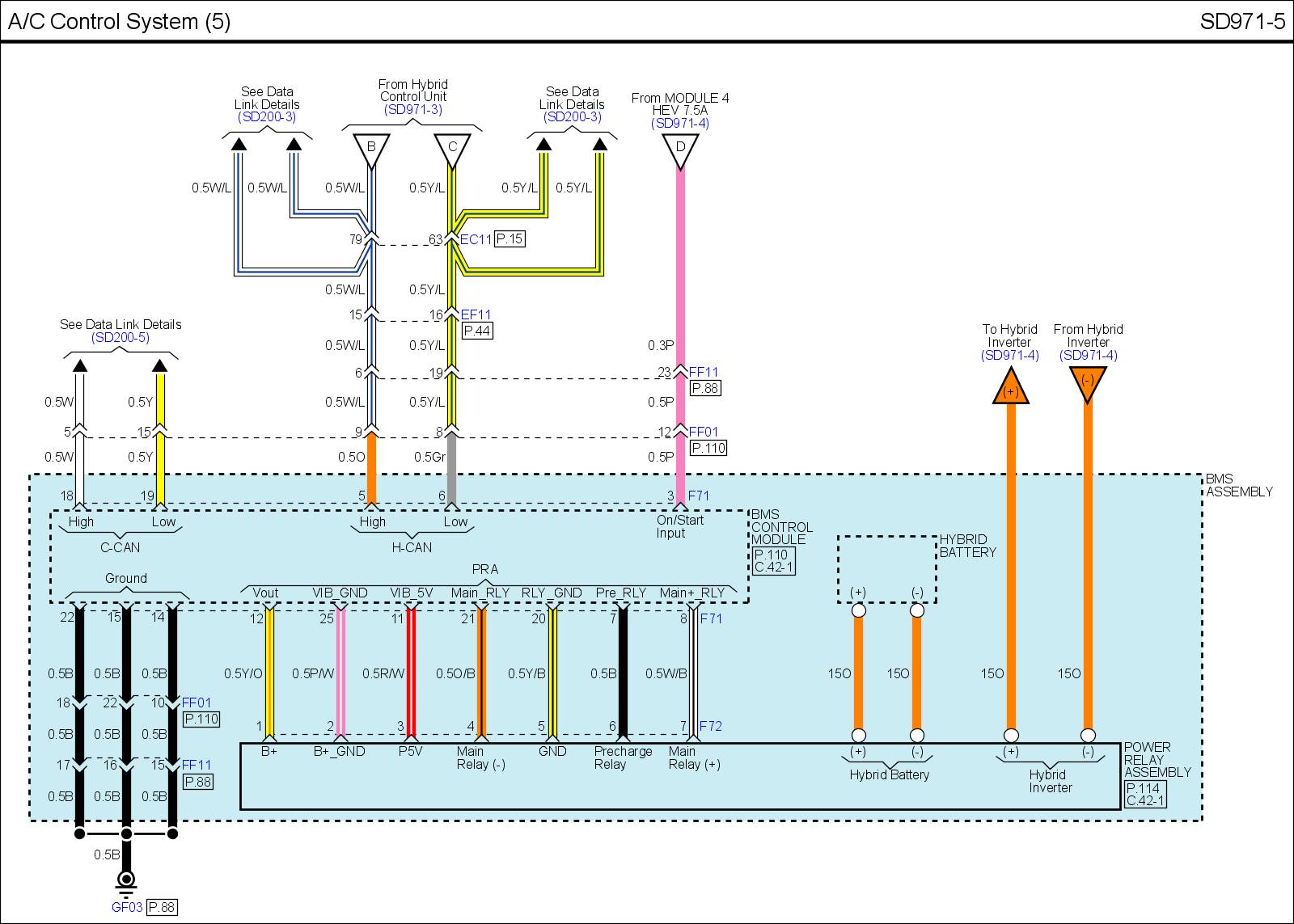

SD971-5 A/C Control System (5):
