Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD957 (Parking Assist System)

Diagram Set SD957 (Parking Assist System)

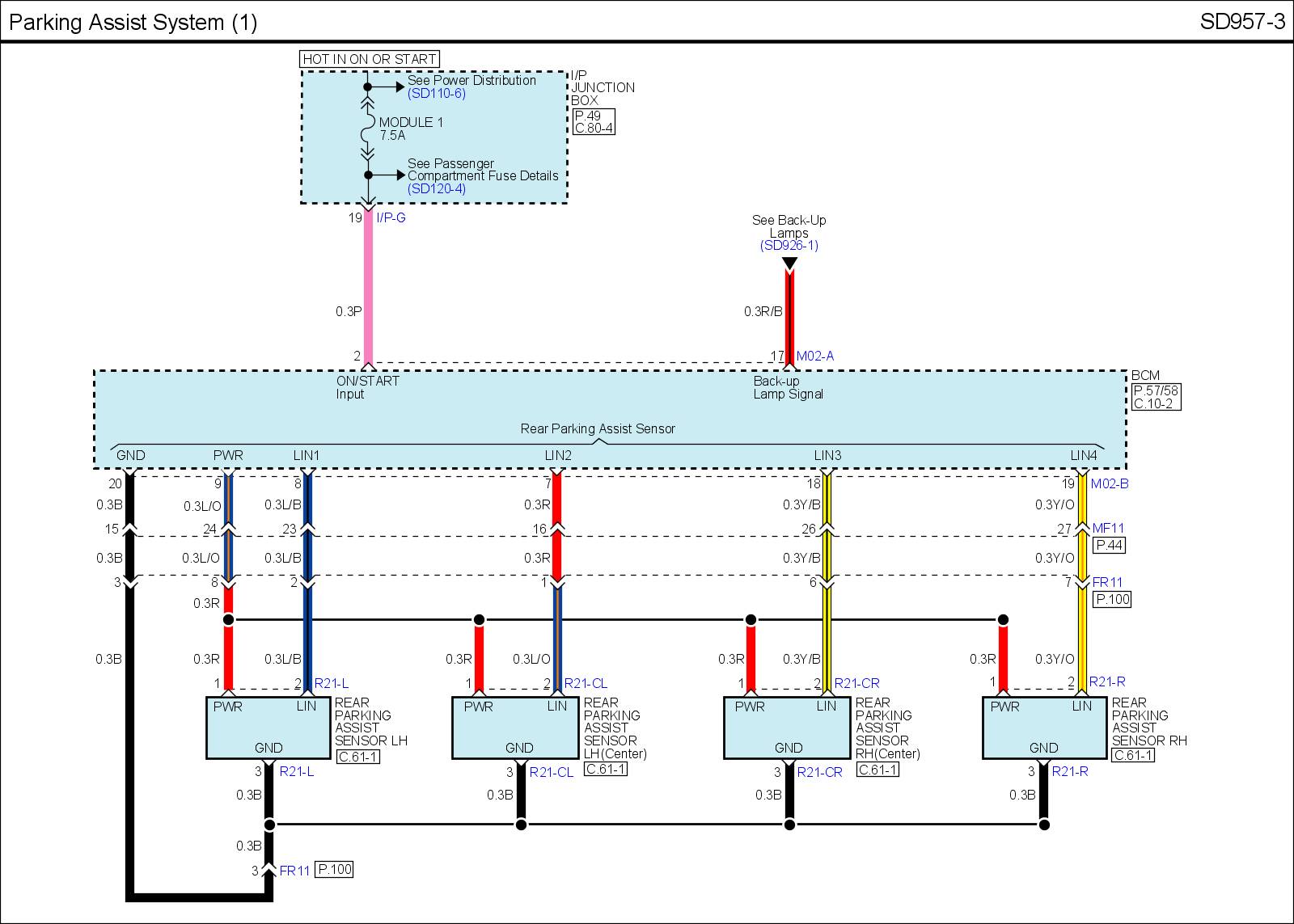

SD957-3 Parking Assist System (1):
