Diagram Set SD588 (Active Hydraulic Booster (AHB) System)

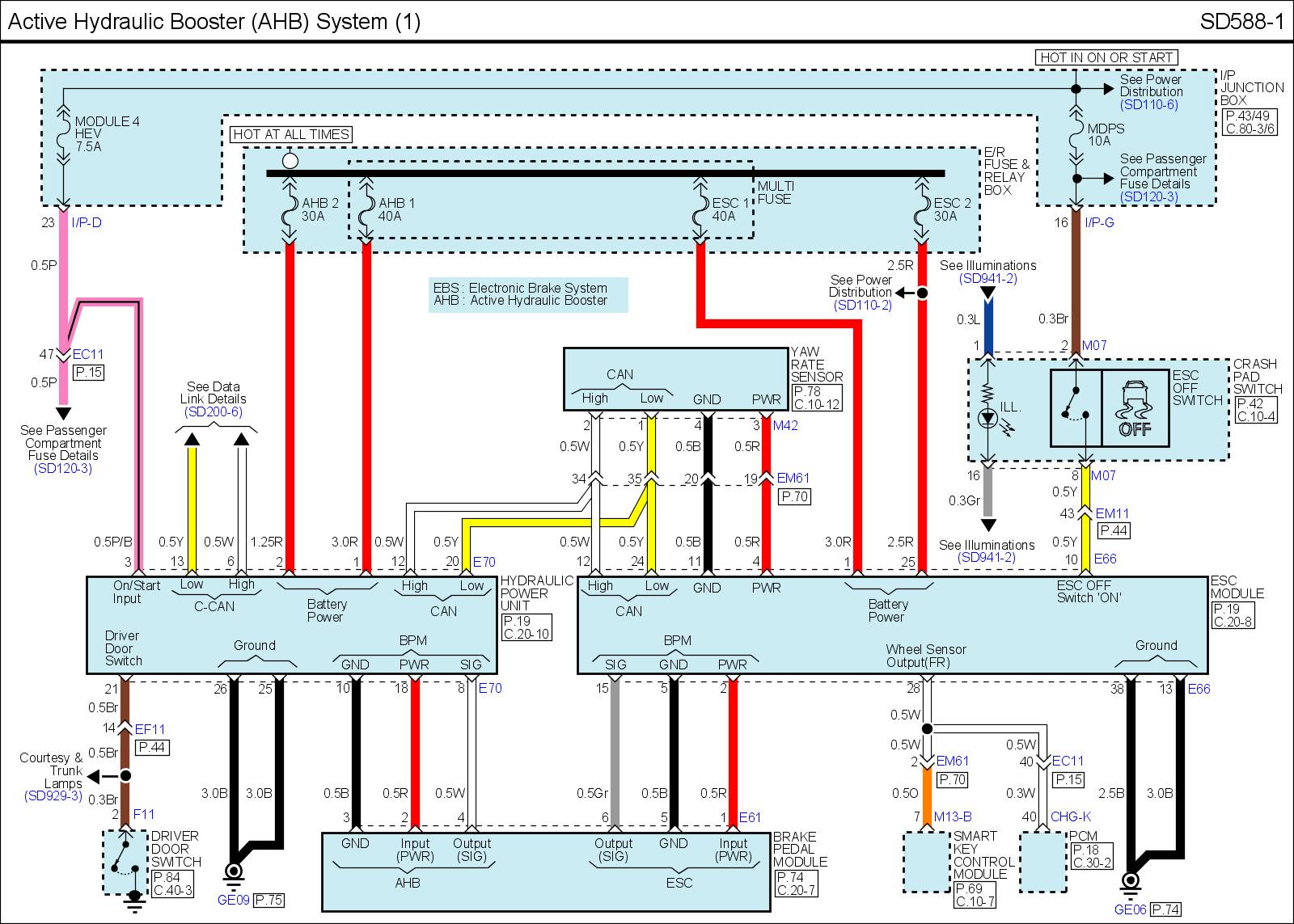

SD588-1 Active Hydraulic Booster (AHB) System (1):

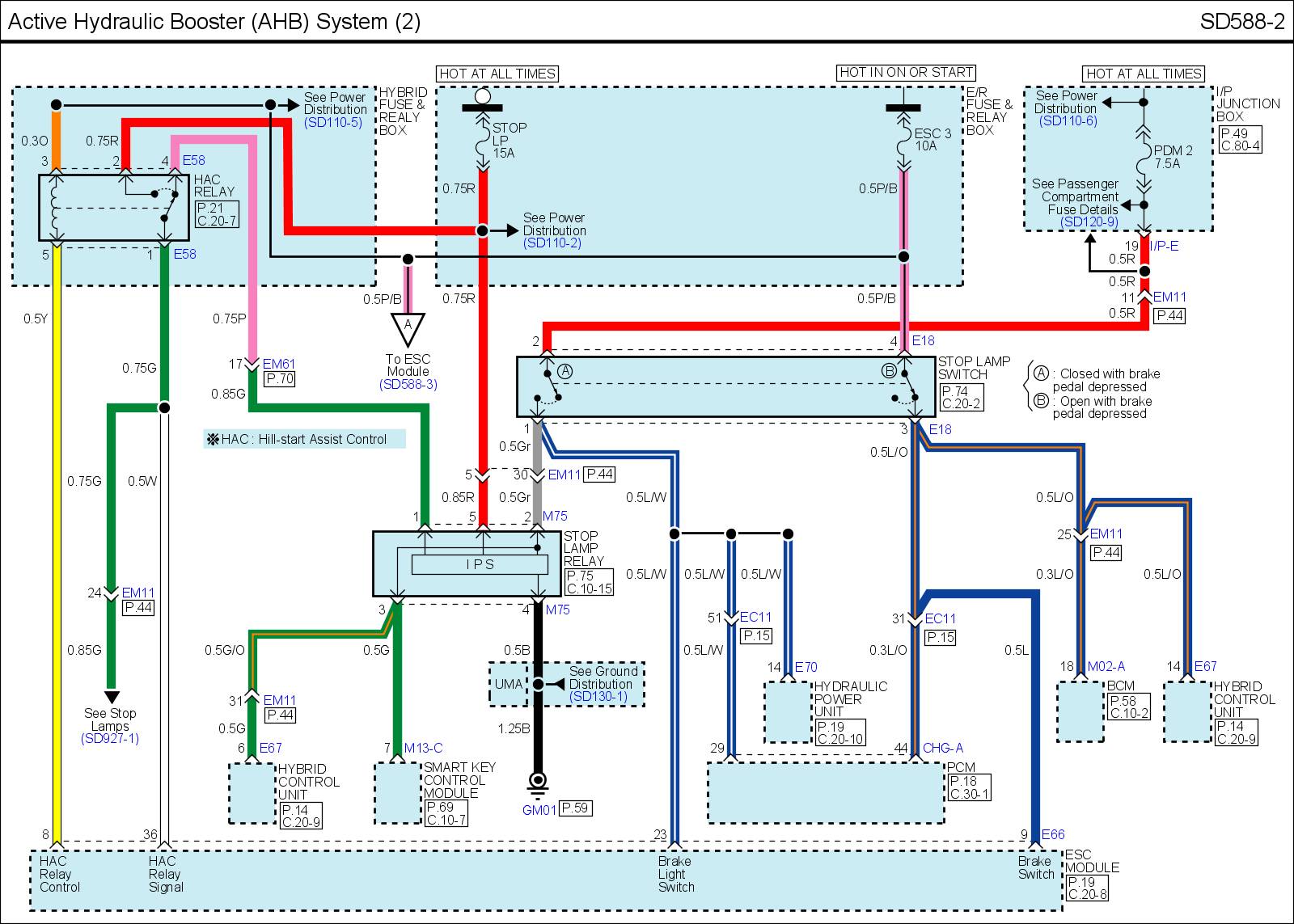

SD588-2 Active Hydraulic Booster (AHB) System (2):




SD588-3 Active Hydraulic Booster (AHB) System (3):
