Diagram Set SD000 (Hybrid System Precaution)

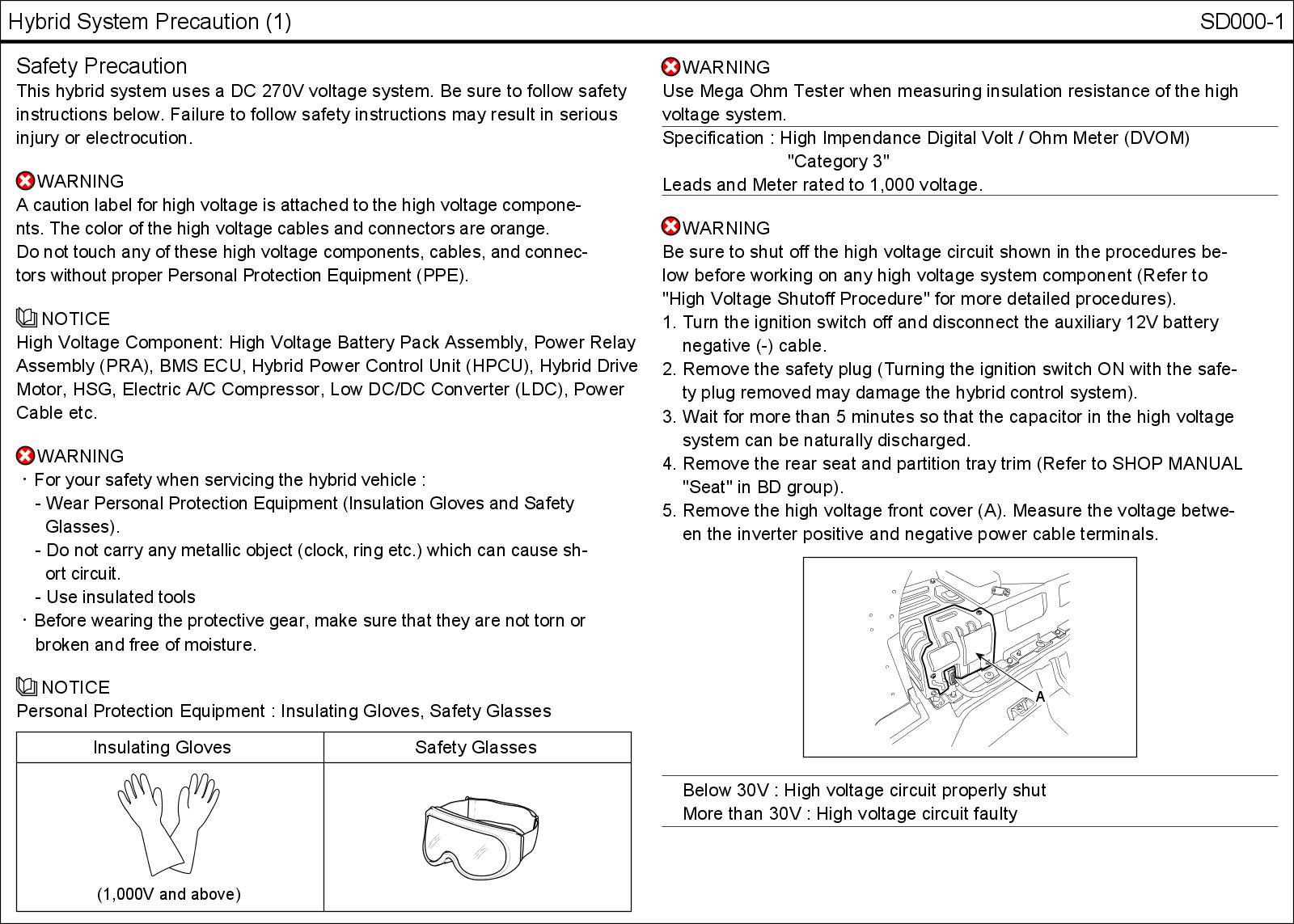

SD000-1 Hybrid System Precaution (1):

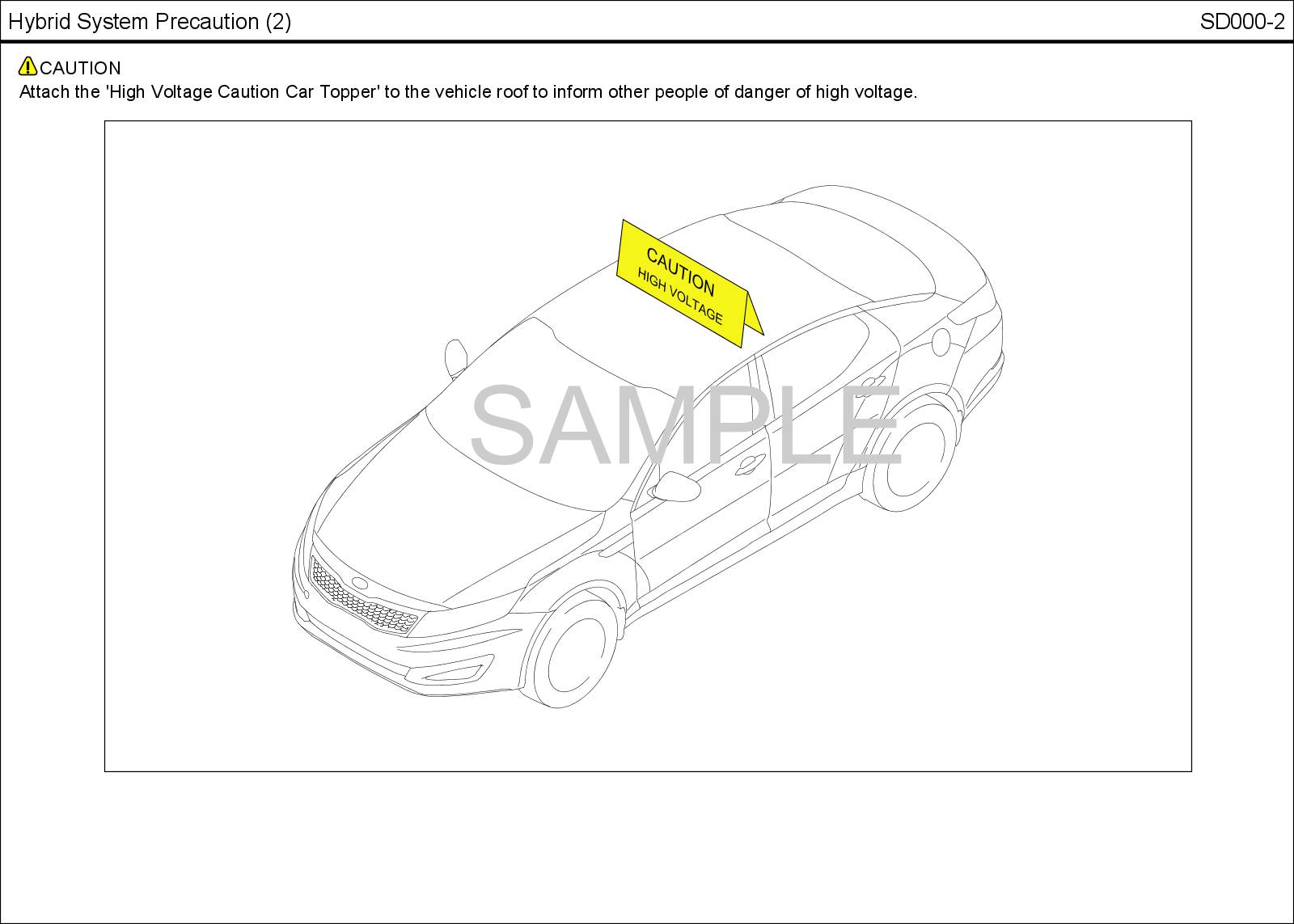

SD000-2 Hybrid System Precaution (2):

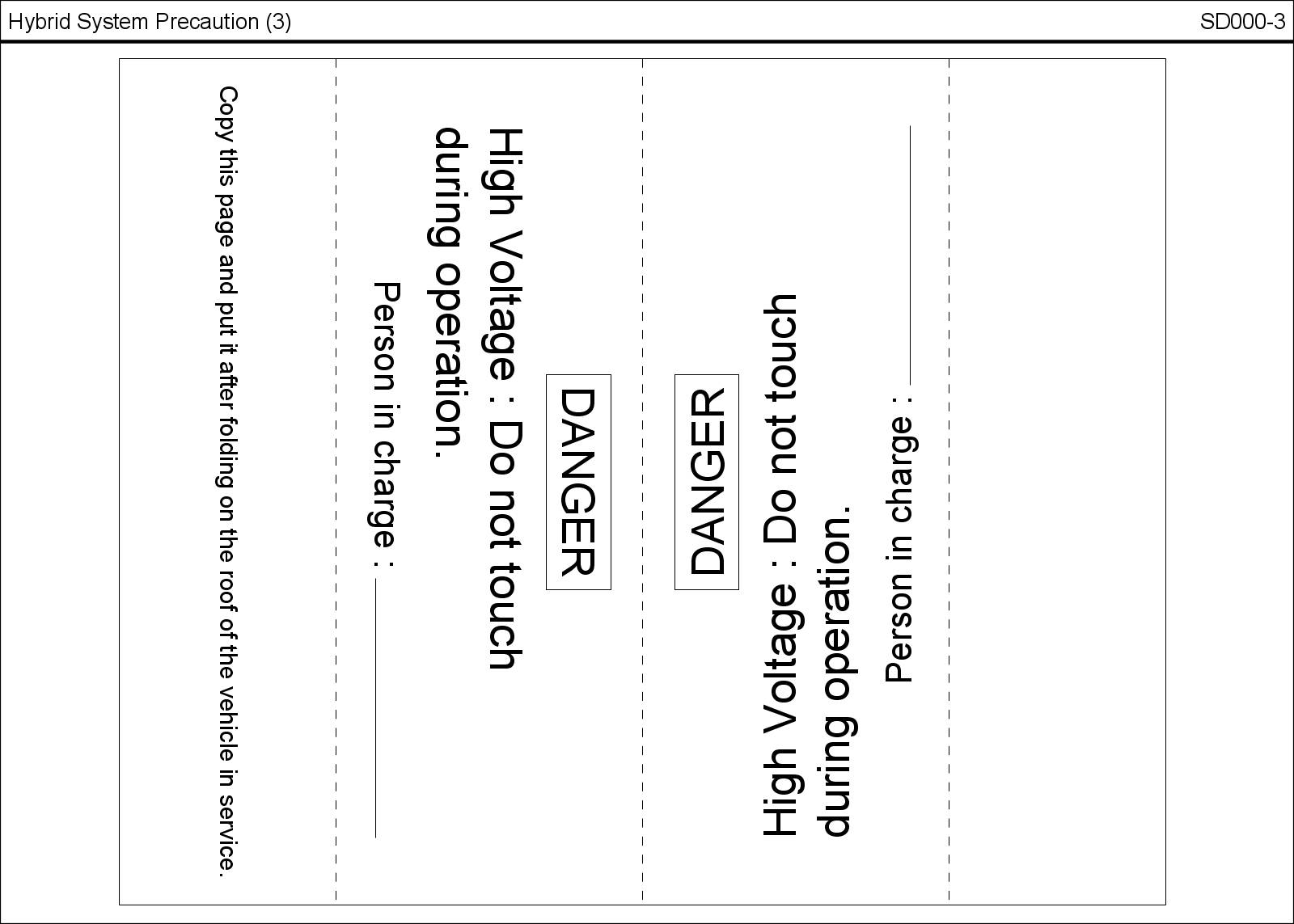

SD000-3 Hybrid System Precaution (3):

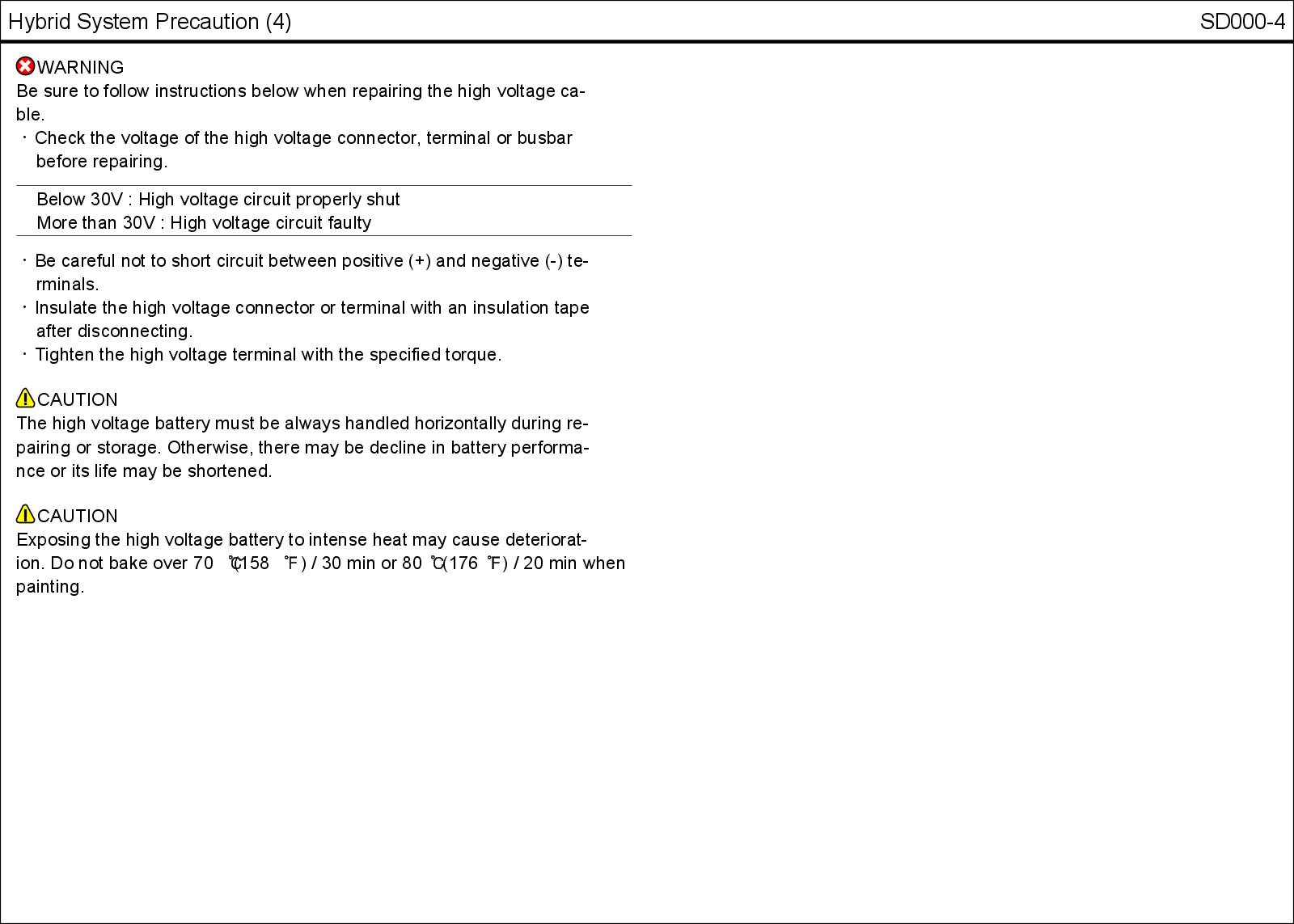

SD000-4 Hybrid System Precaution (4):

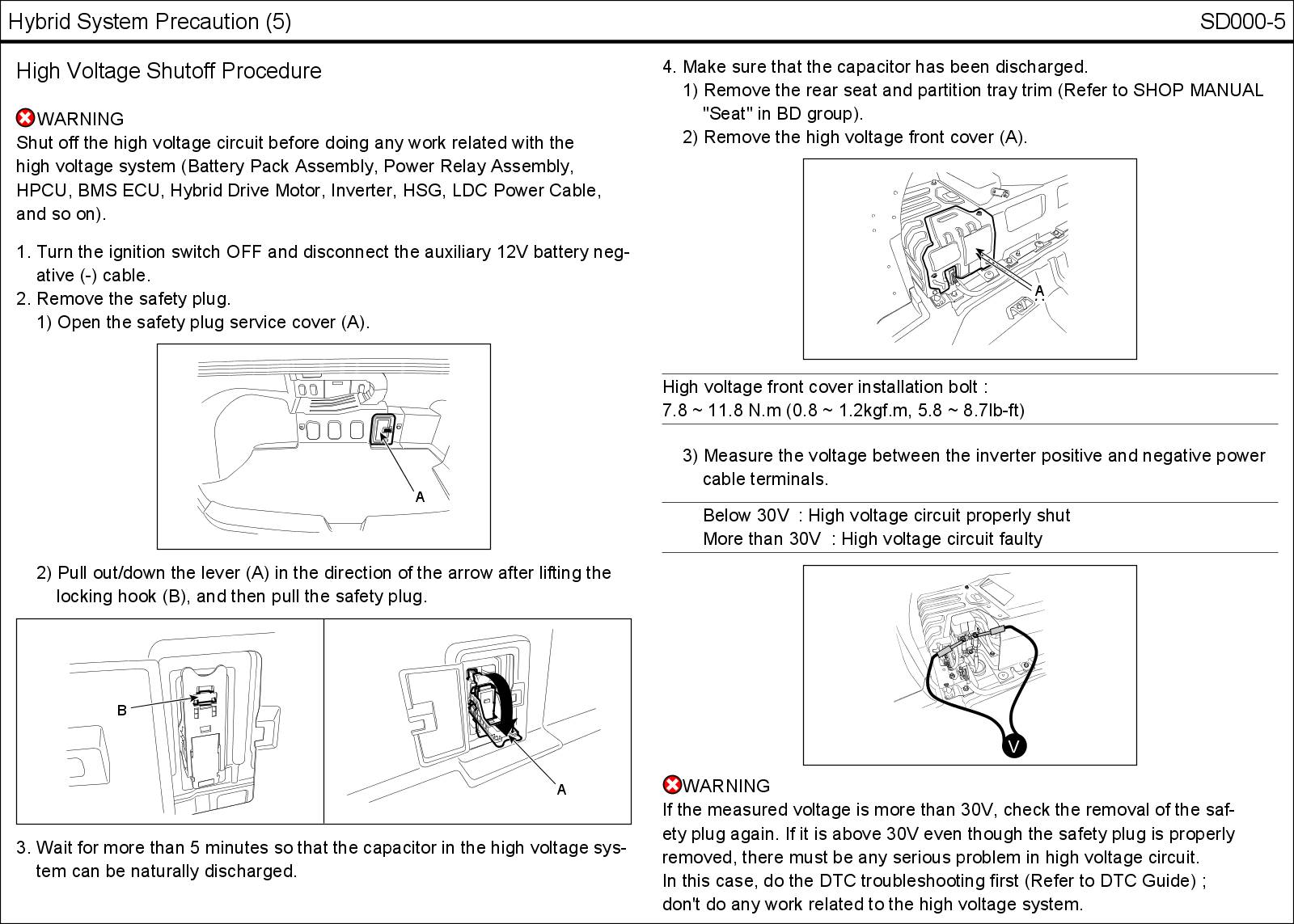

SD000-5 Hybrid System Precaution (5):
