Circuit Diagrams

SD371-1 Battery Management System (BMS) (1):

SD371-2 Battery Management System (BMS) (2):

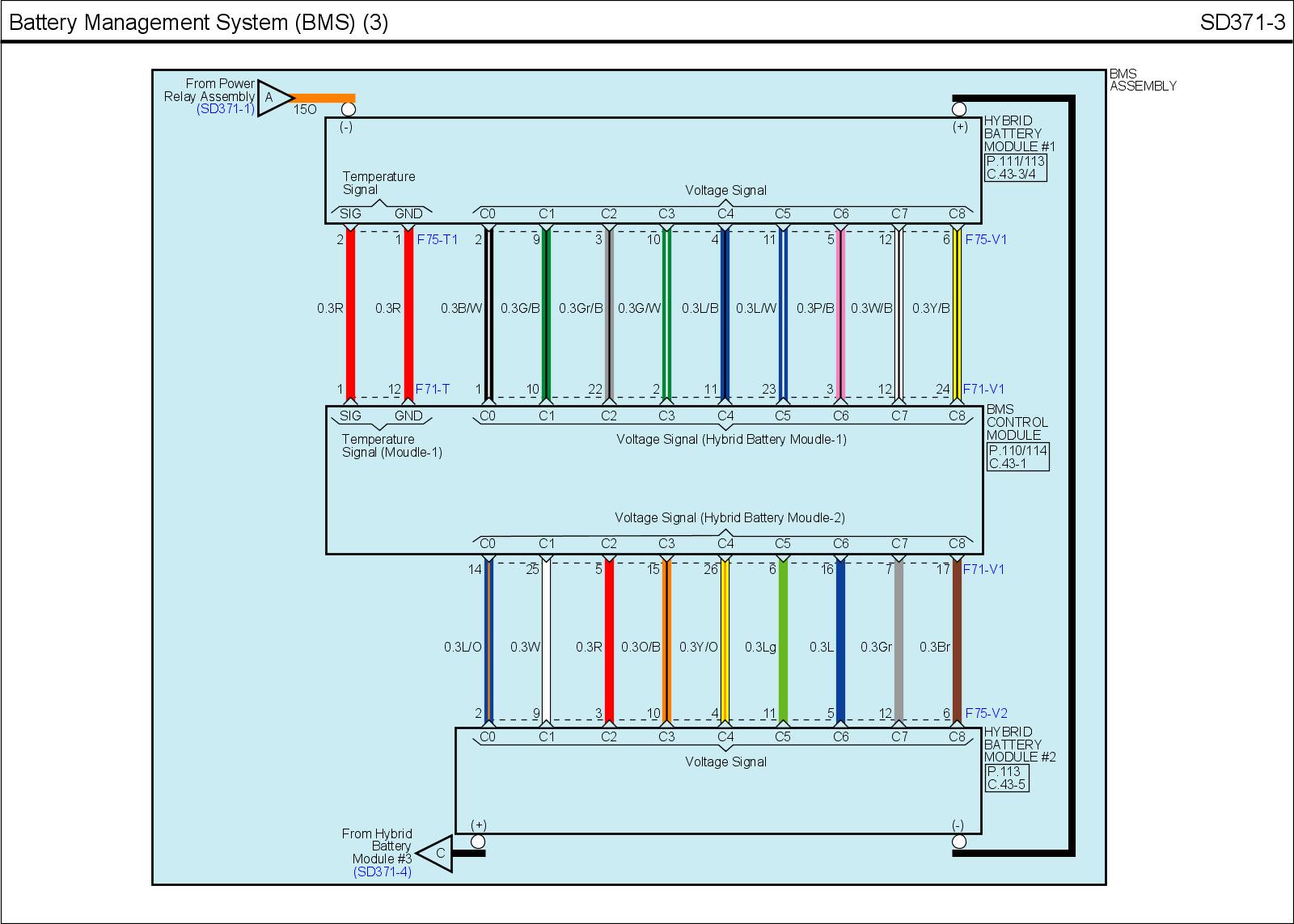

SD371-3 Battery Management System (BMS) (3):

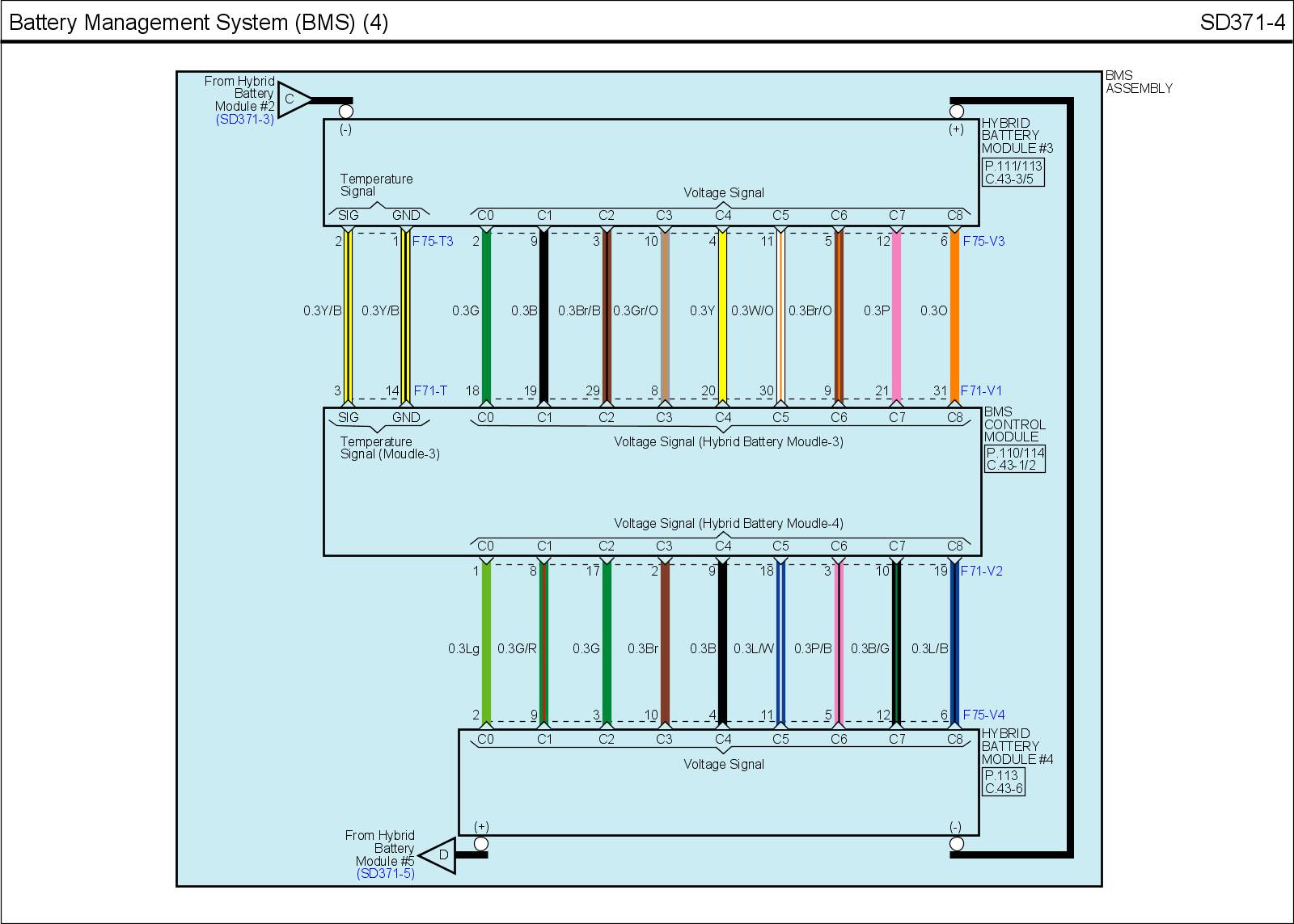

SD371-4 Battery Management System (BMS) (4):

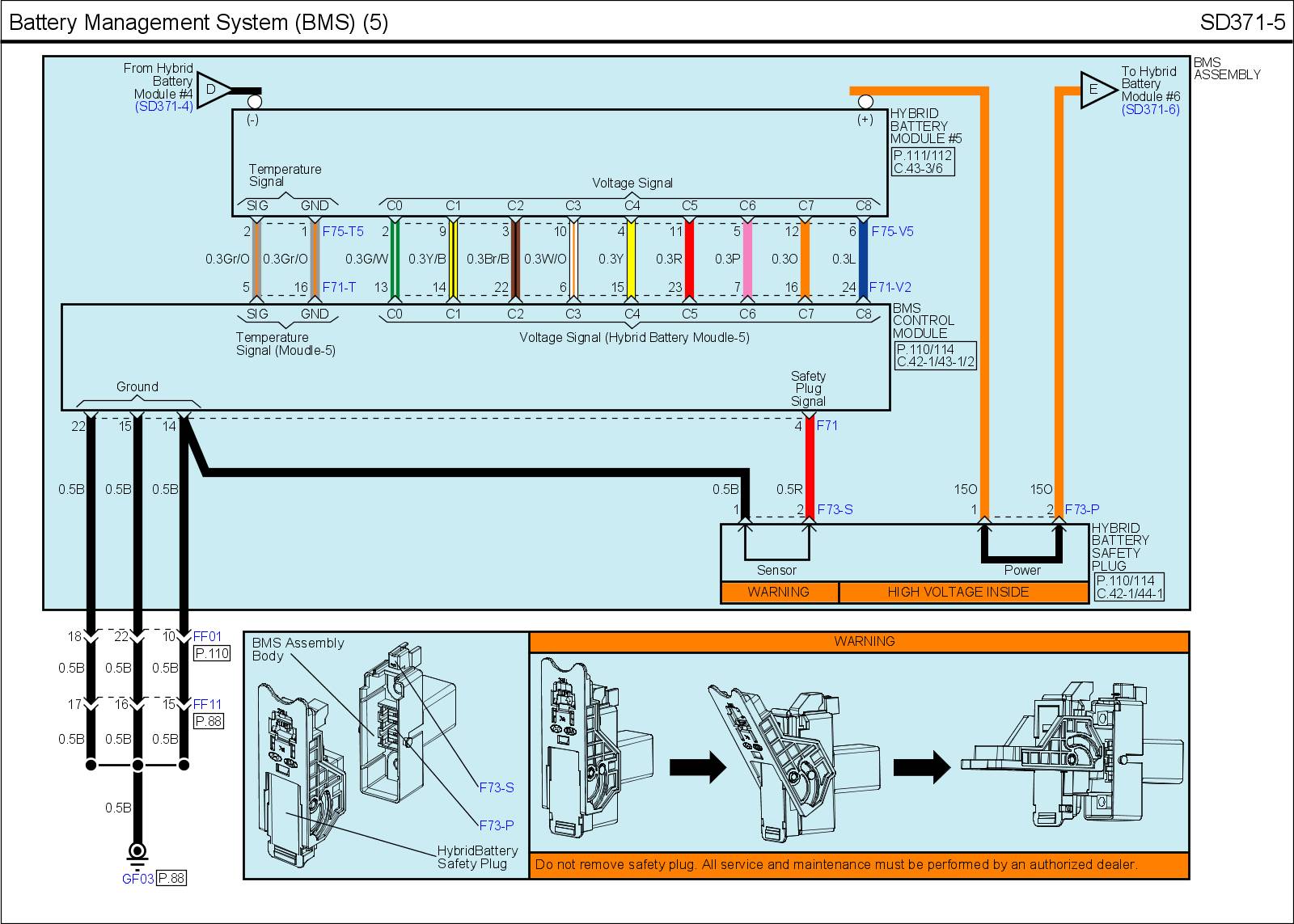

SD371-5 Battery Management System (BMS) (5):

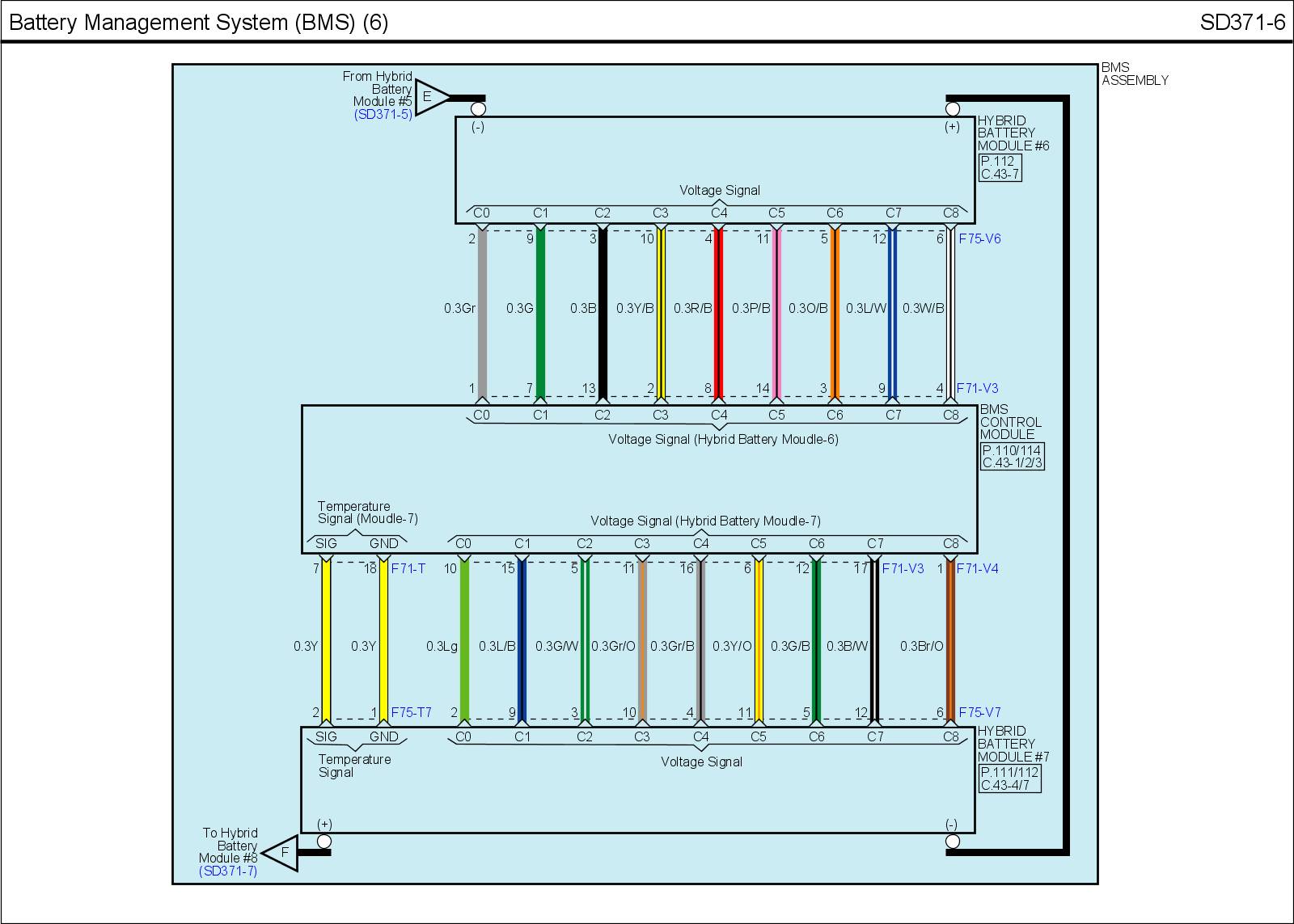

SD371-6 Battery Management System (BMS) (6):

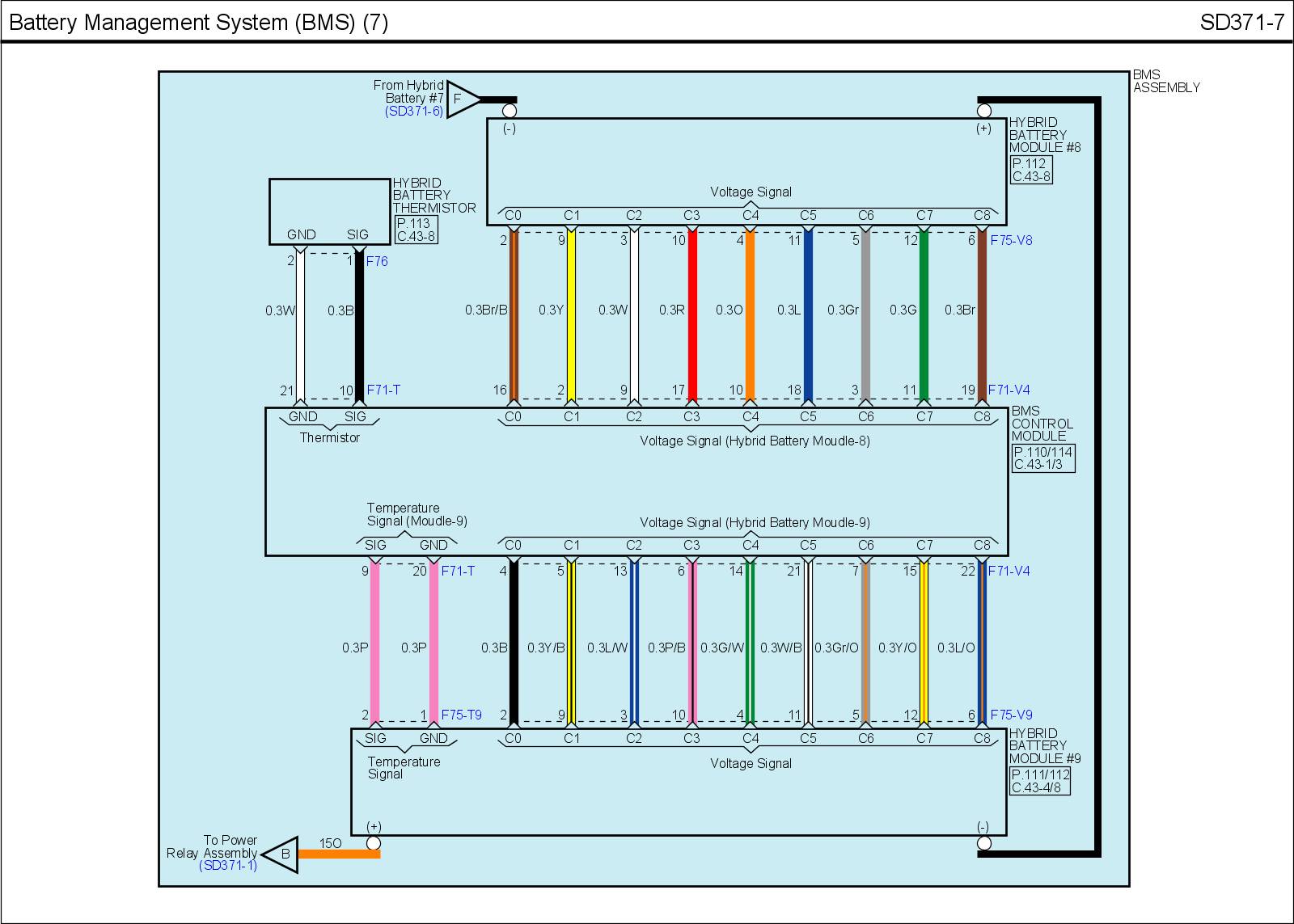

SD371-7 Battery Management System (BMS) (7):

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
