Oil Pump Unit(OPU)

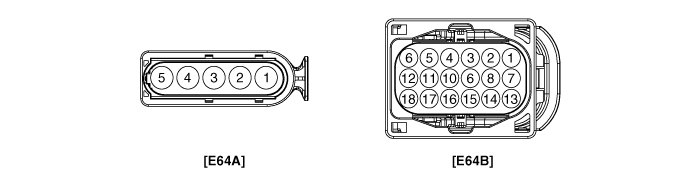

OPU connector and terminal function

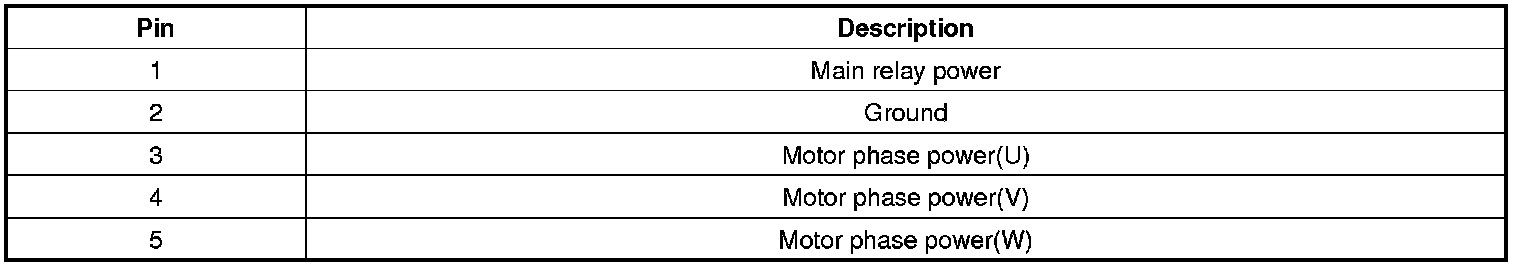

OPU terminal function

[E64A]

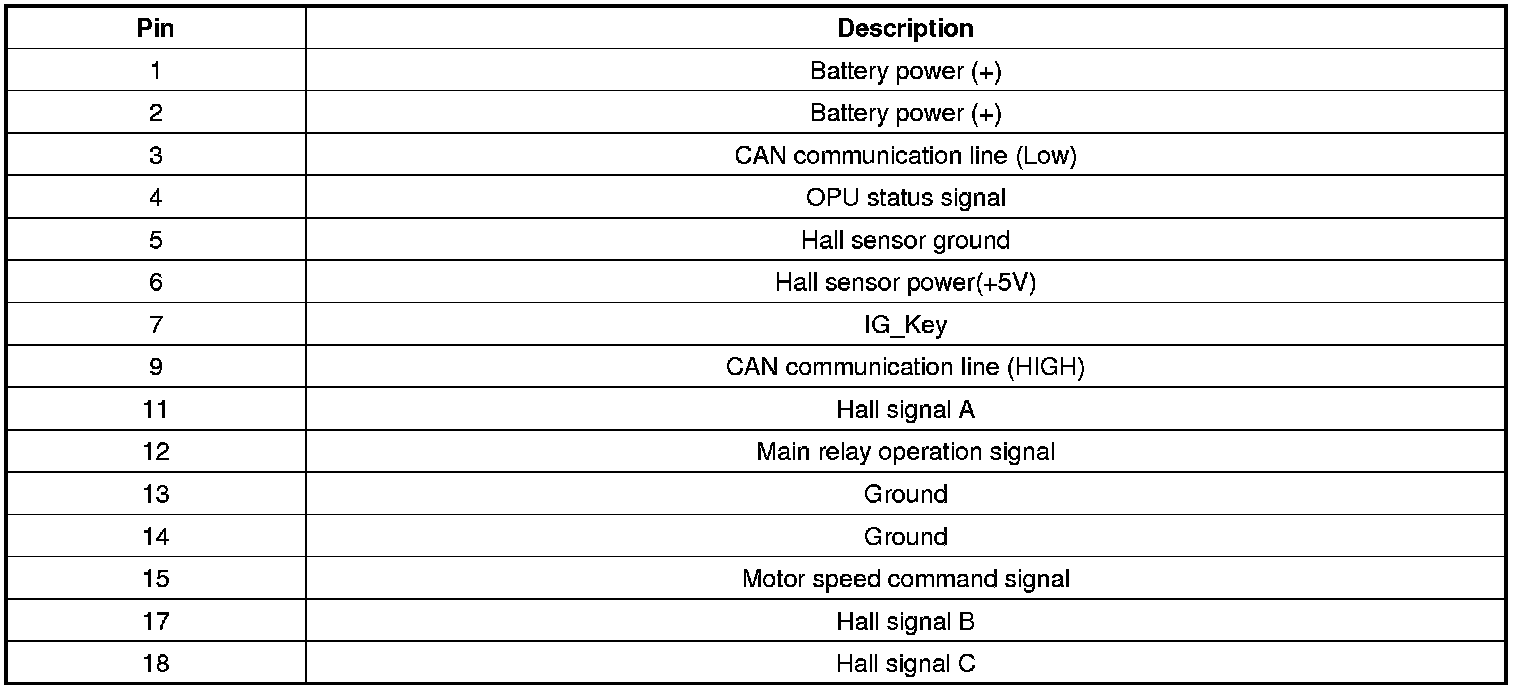

[E64B]

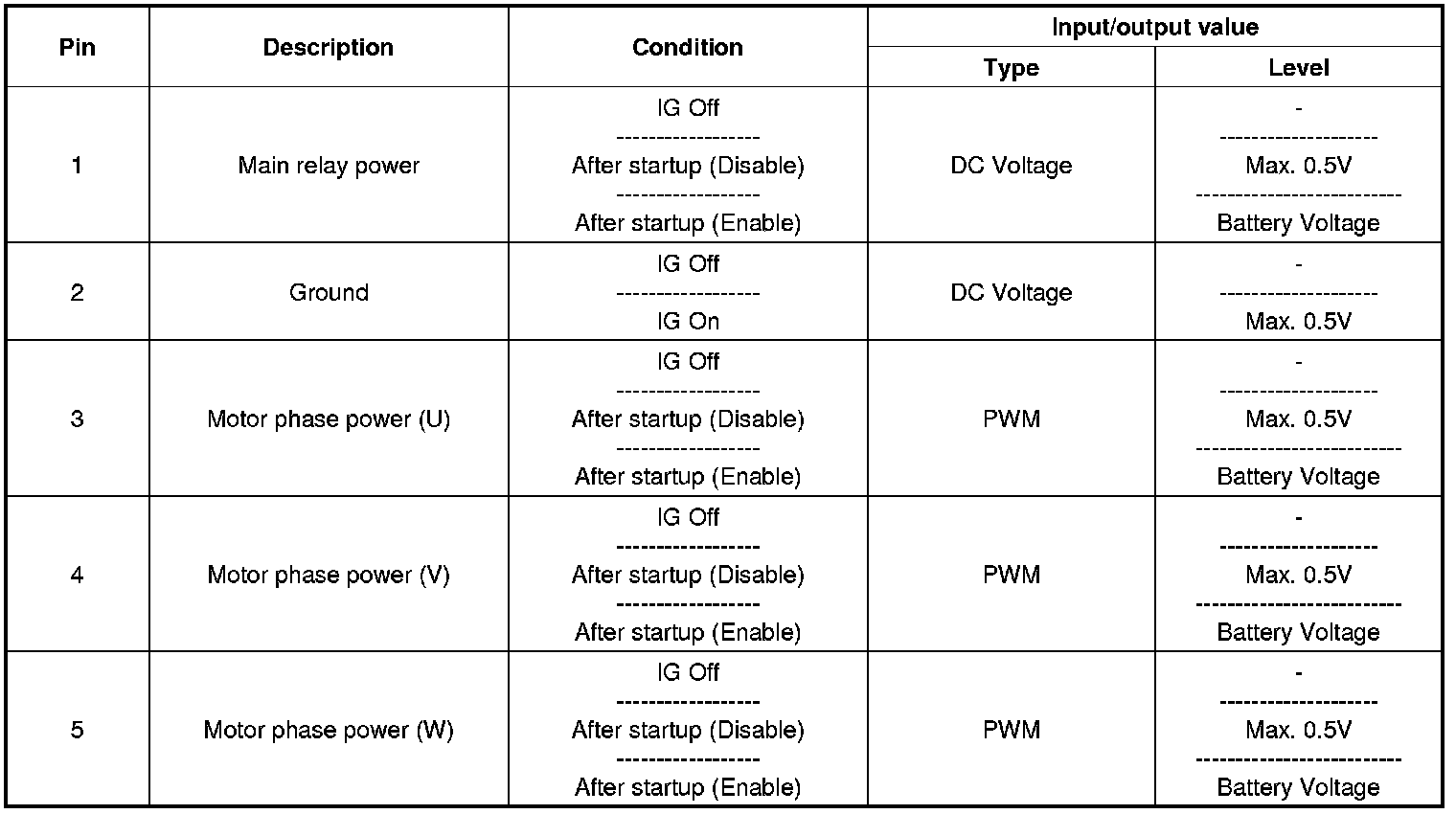

OPU Terminal input/ output signal

[E64A]

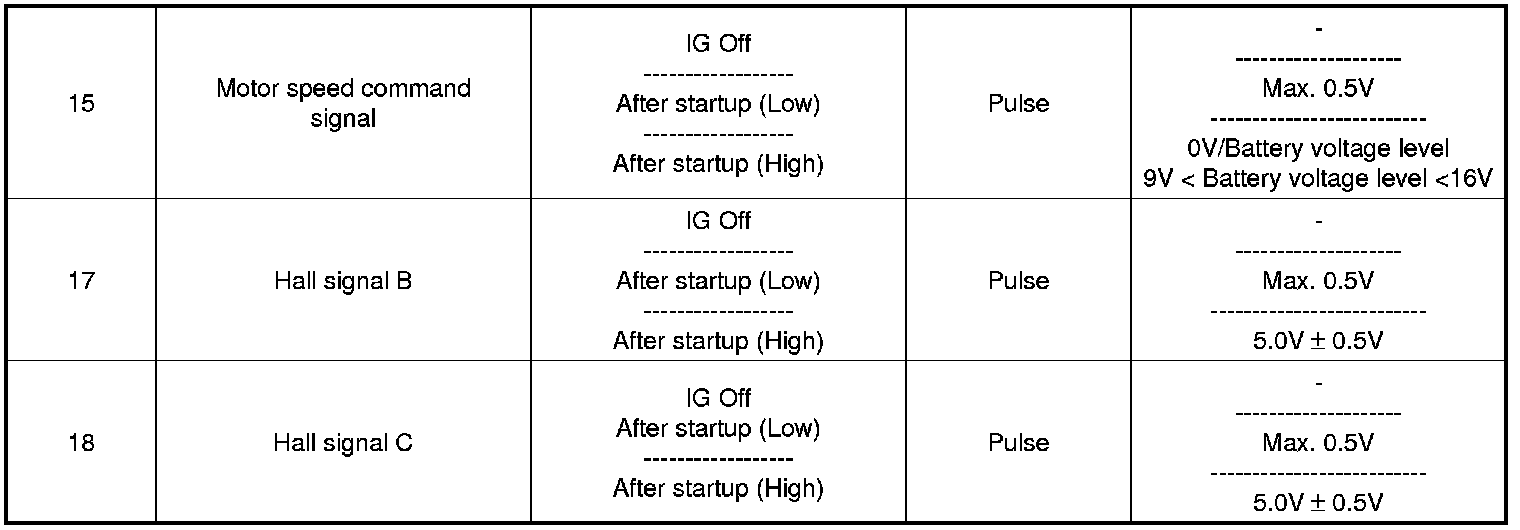

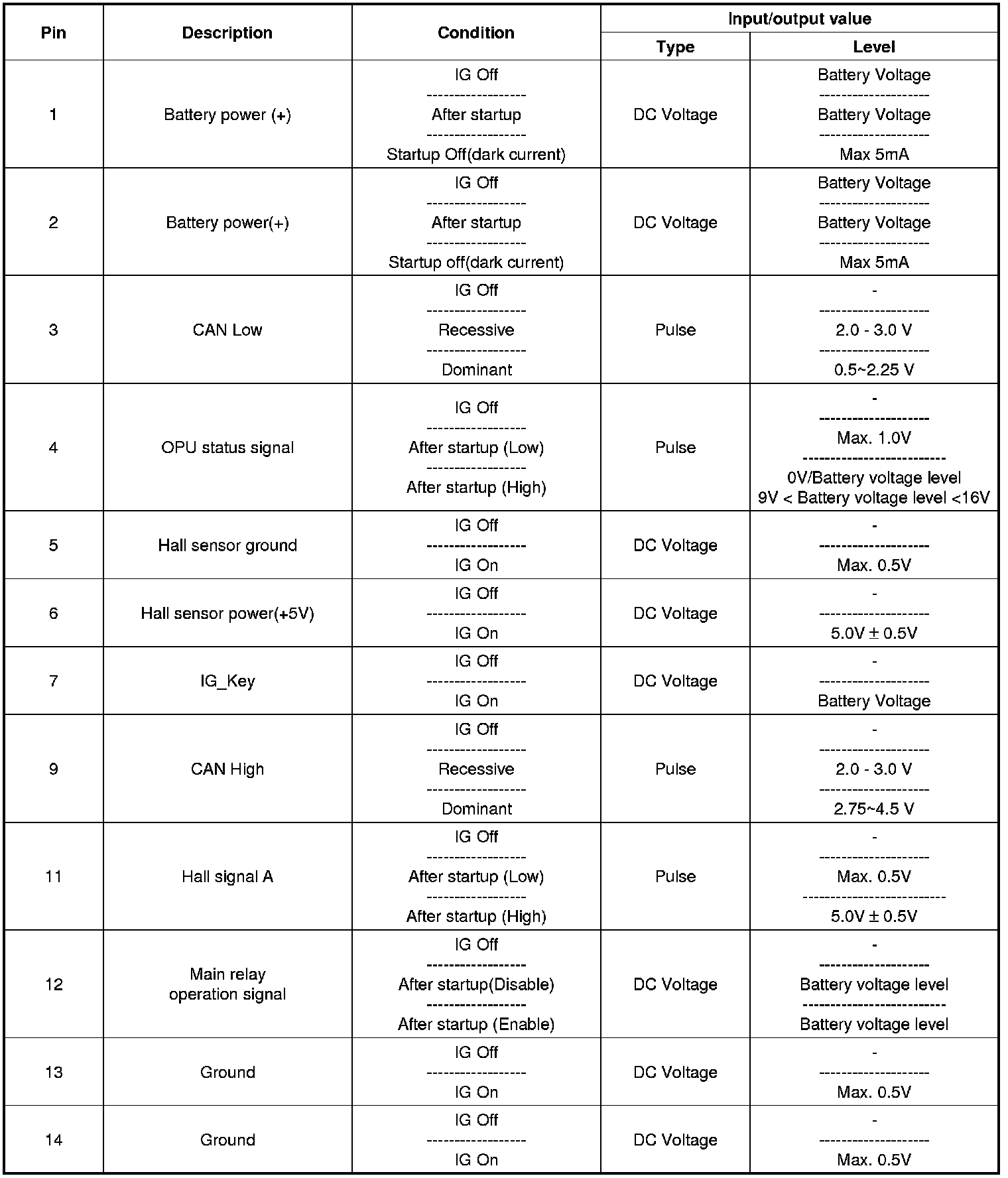

[E64B]
