BMS Control Module

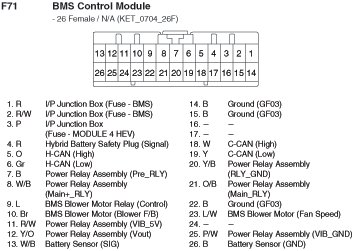

F71 BMS Control Module:

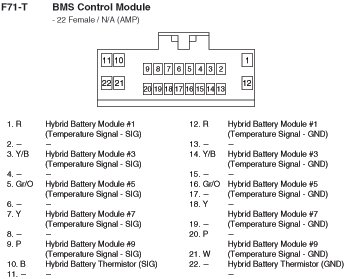

F71-T BMS Control Module:

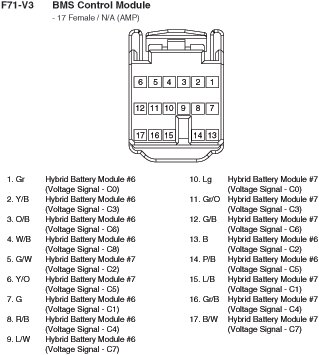

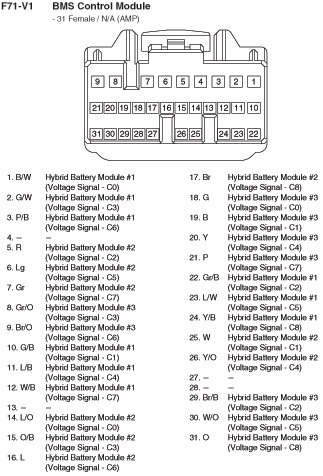

F71-V1 BMS Control Module:

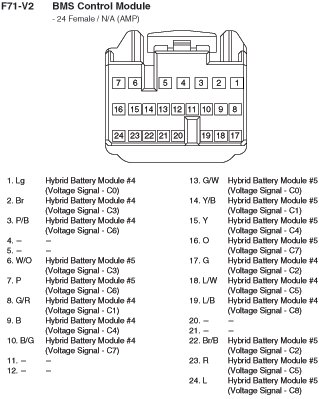

F71-V2 BMS Control Module:




F71-V3 BMS Control Module:

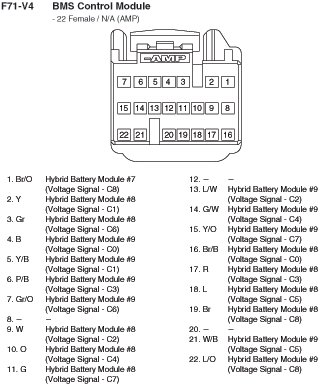

F71-V4 BMS Control Module:
