Memory Positioning Systems: Specifications
Specifications

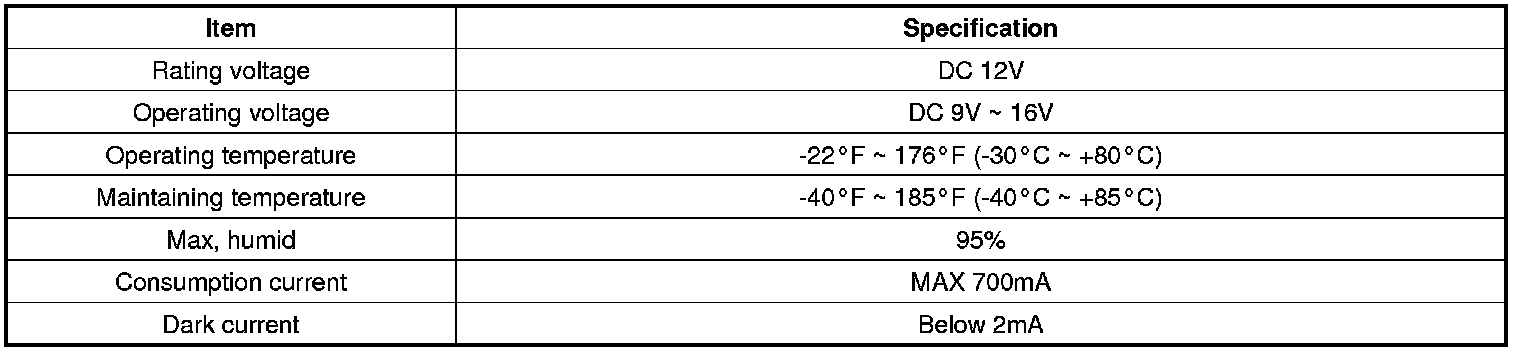

IMS Electrical System

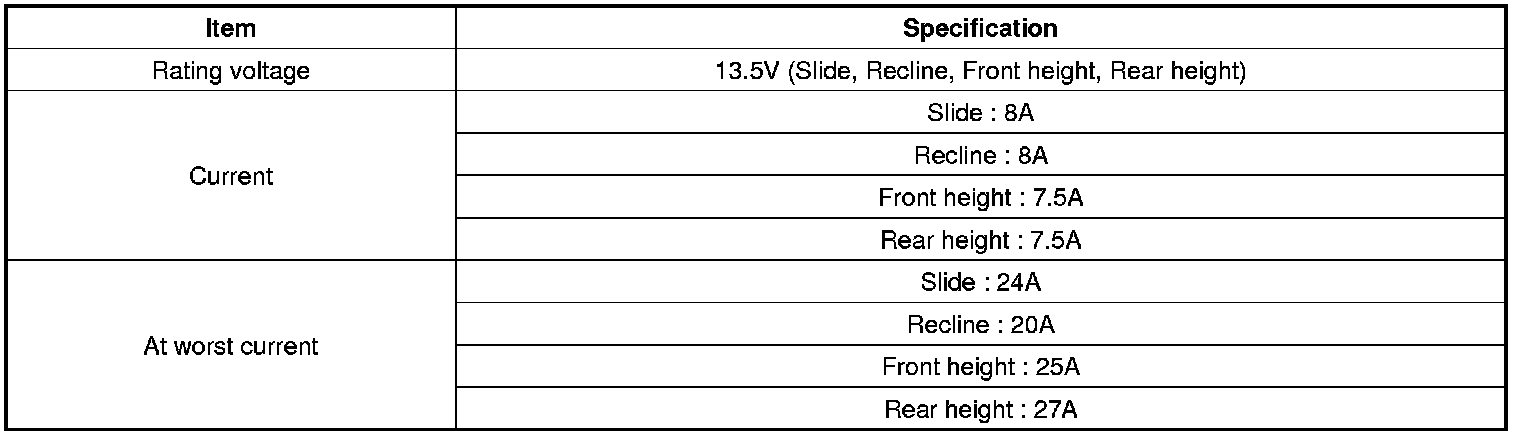

Motor Electrical System

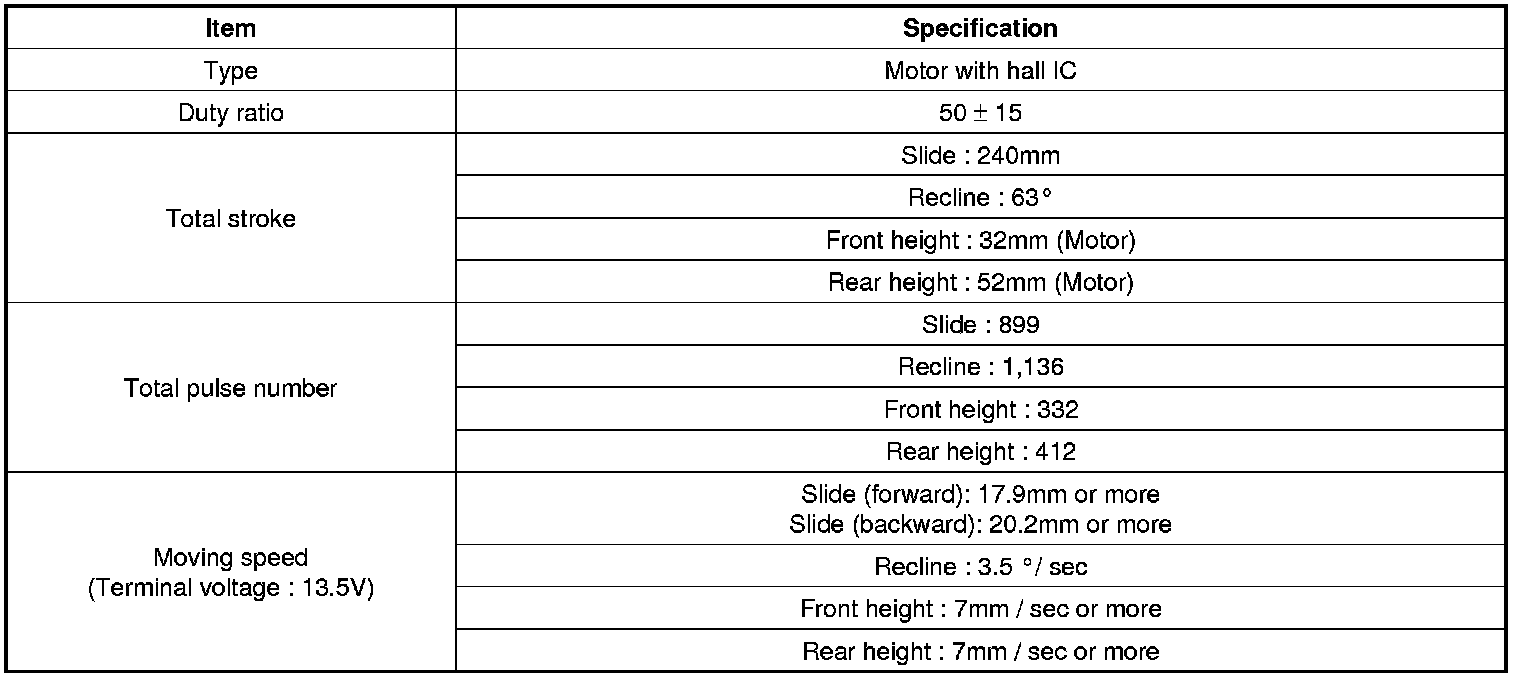

Mechanical System
