Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Entertainment Systems
>>
Locations
>>
AVN Head Unit
AVN Head Unit
Components

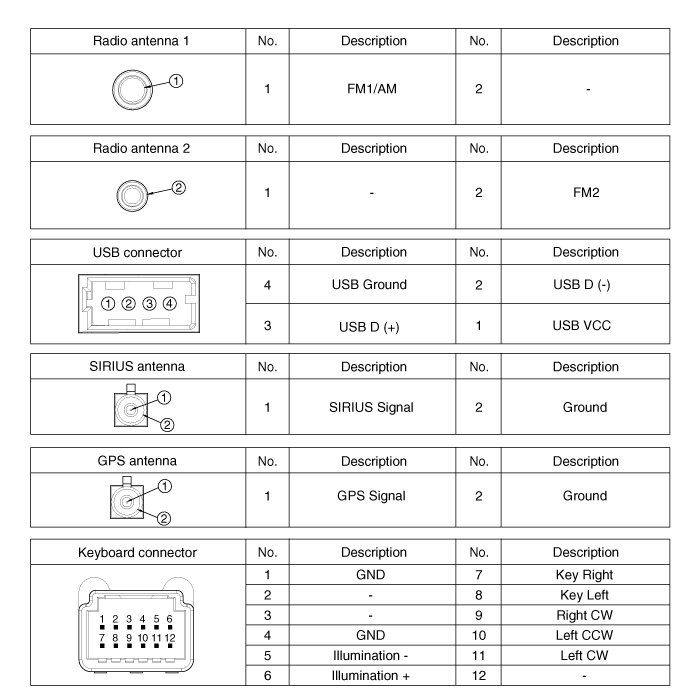

AVN (A/V & Navigation) Head Unit Connector

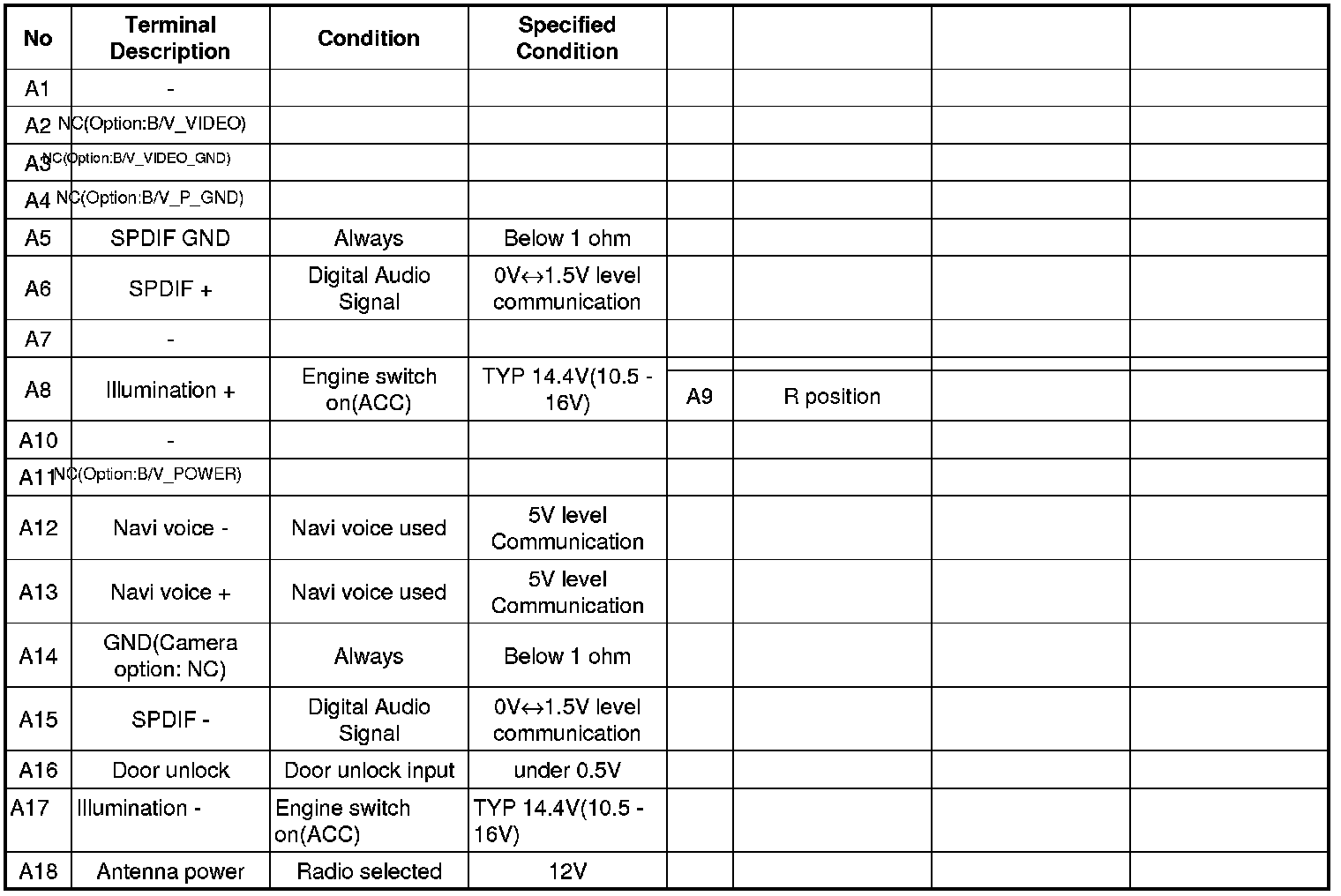

Connector A

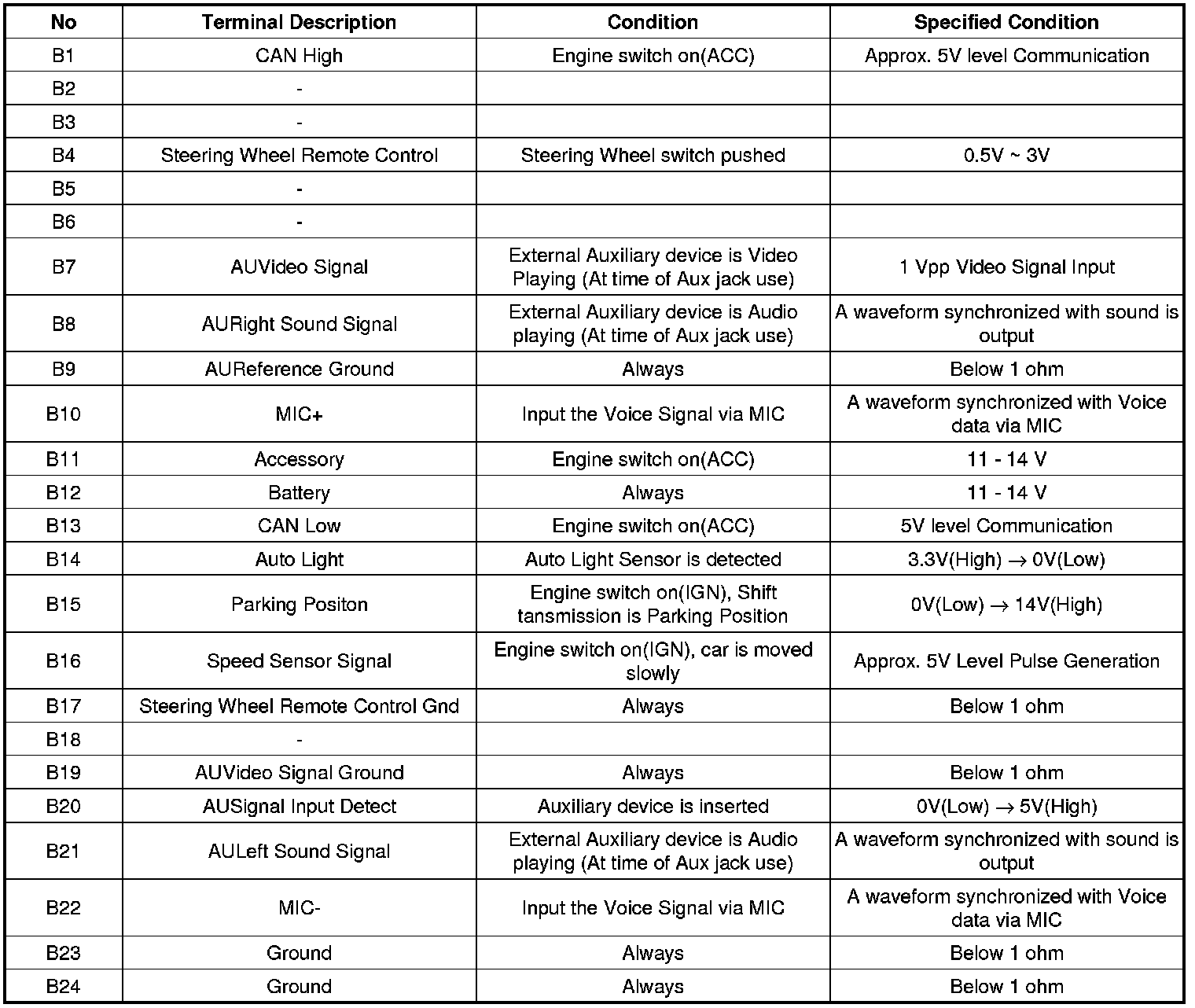

Connector B

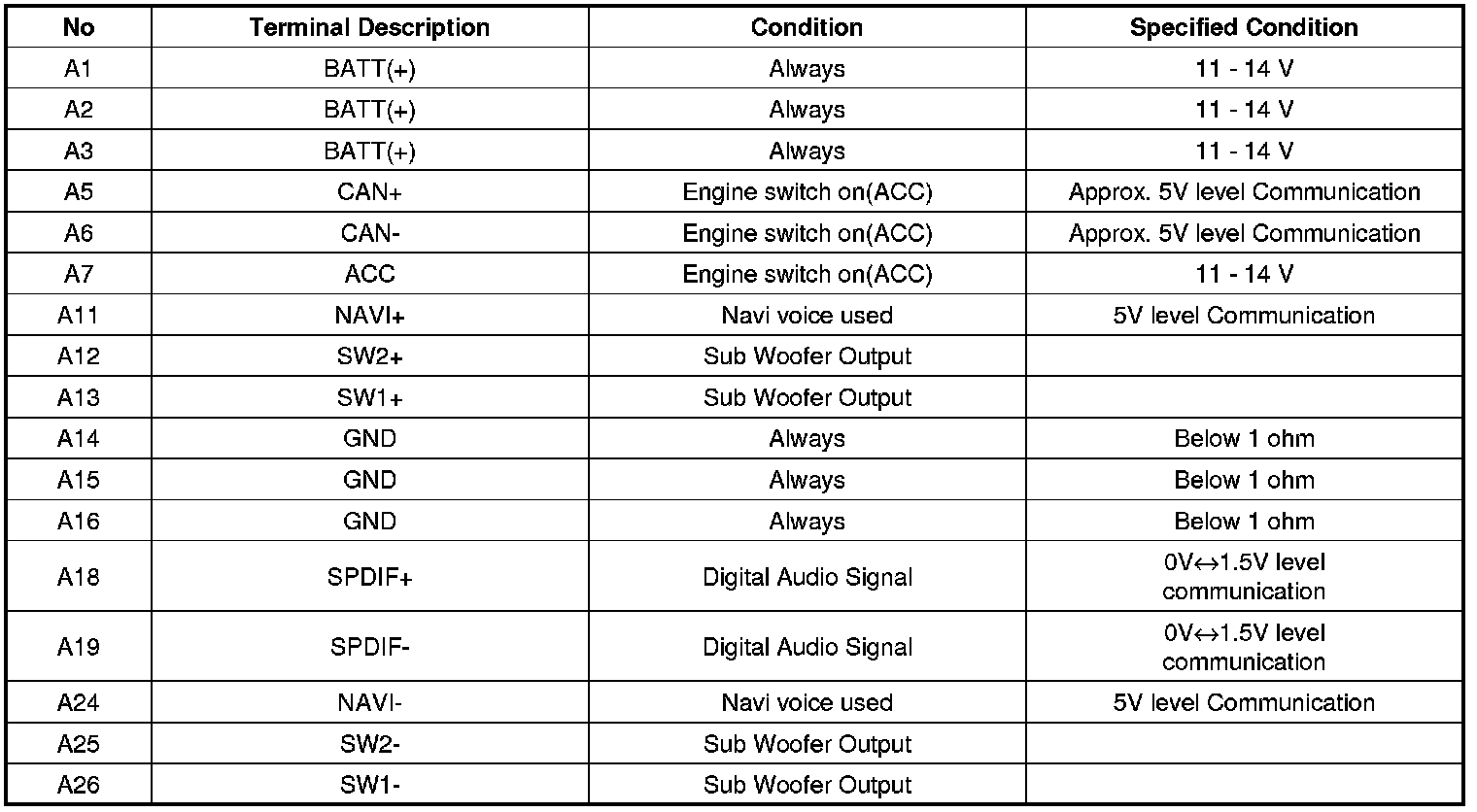

Connector A
Connector B

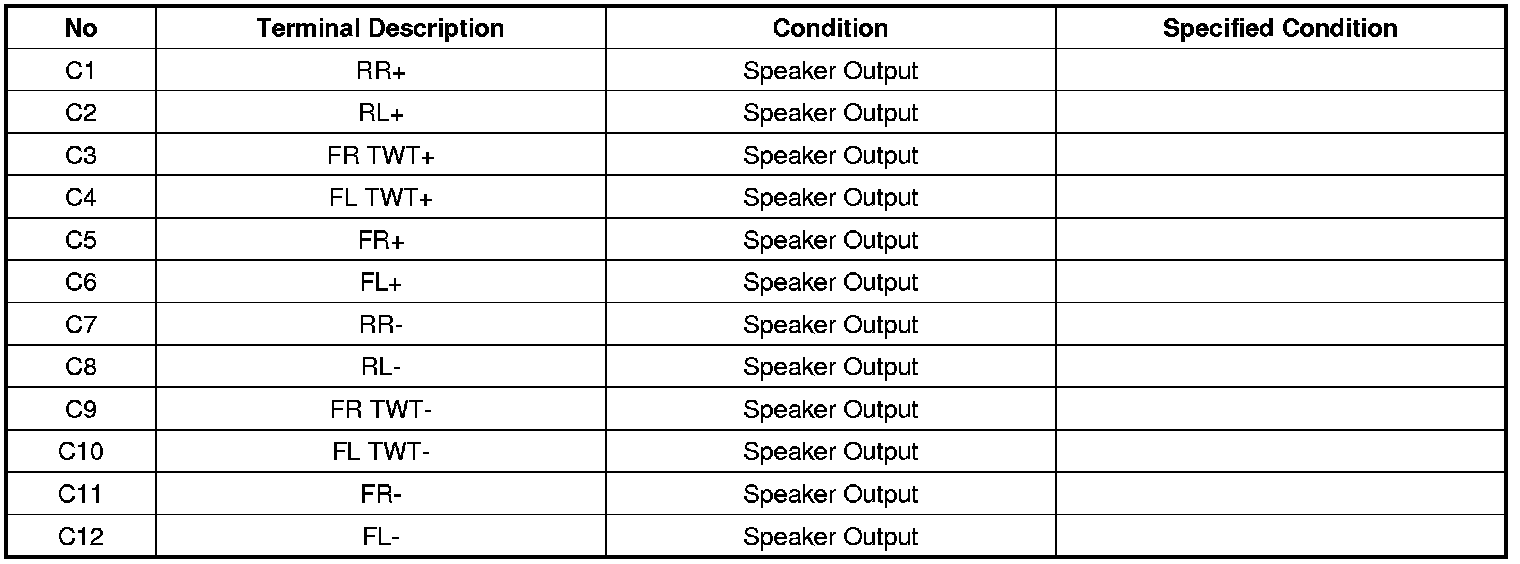

Connector C
