General Information

Automatic Transaxle

P2709 Shift Control Solenoid Valve \'F\' Electrical (SS-B) - General Information

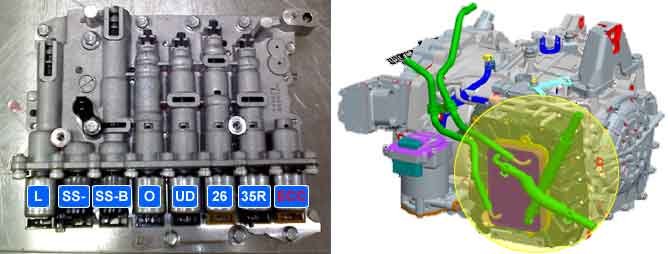

Component Location





General Description

The Shift solenoid valve is ON/OFF type and changed a way of oil direction. PCM/TCM control solenoid valve to set gear speed position.

DTC Description

This DTC is set when PCM/TCM detects open or short circuit in valve harness.

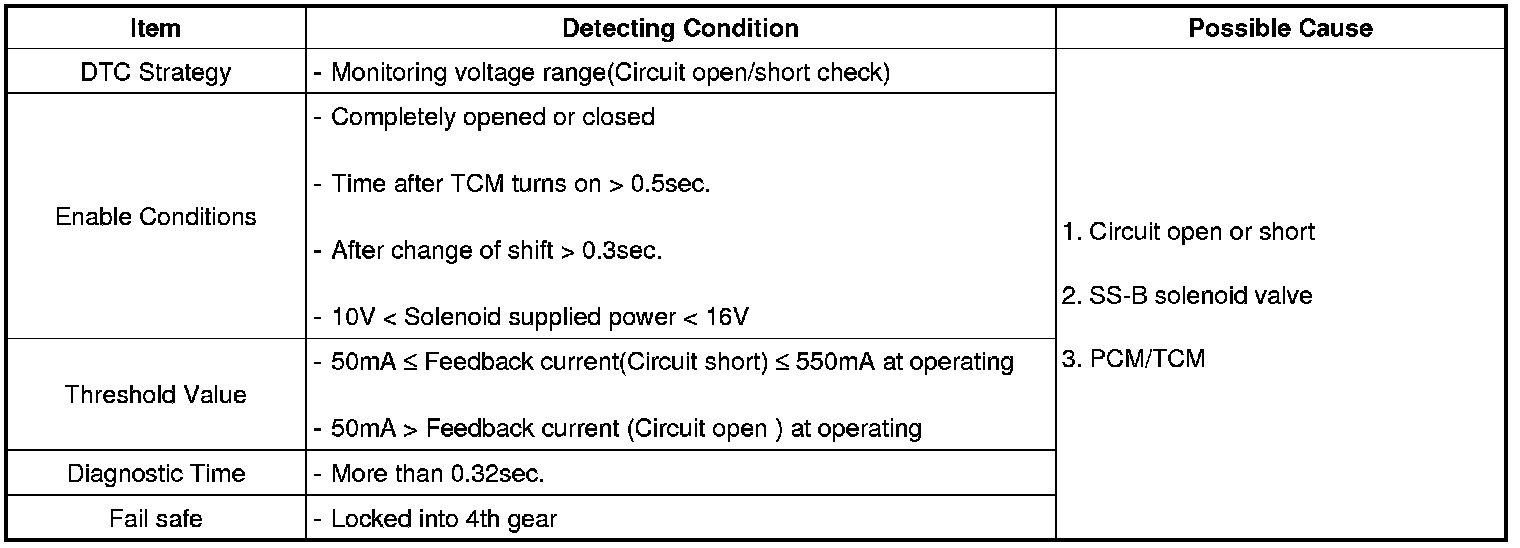

DTC Detecting Condition





Specification

- Working voltage: under 7.5 V (Supplied pressure 5.0 kgf/cm2, Oil temperature 85 °C) (185 °F)
- Release voltage: under 5.5 V (Supplied pressure 5.0 kgf/cm2, Oil temperature 85 °C) (185 °F)
- Release current: under 5.5 V (Supplied pressure 0.51 kgf/cm2, Oil temperature 85 °C) (185 °F)
- Internal resistance : 10 - 11 Ohms (20 °C) (68 °F)

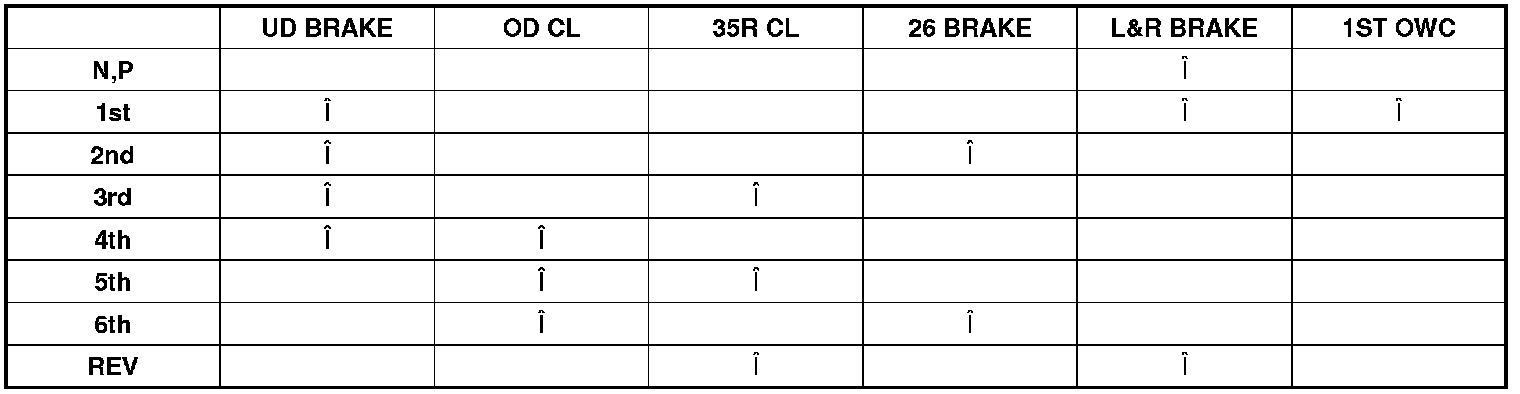

Operating mode table at each step

SOLENOID VALVE





ELEMENT

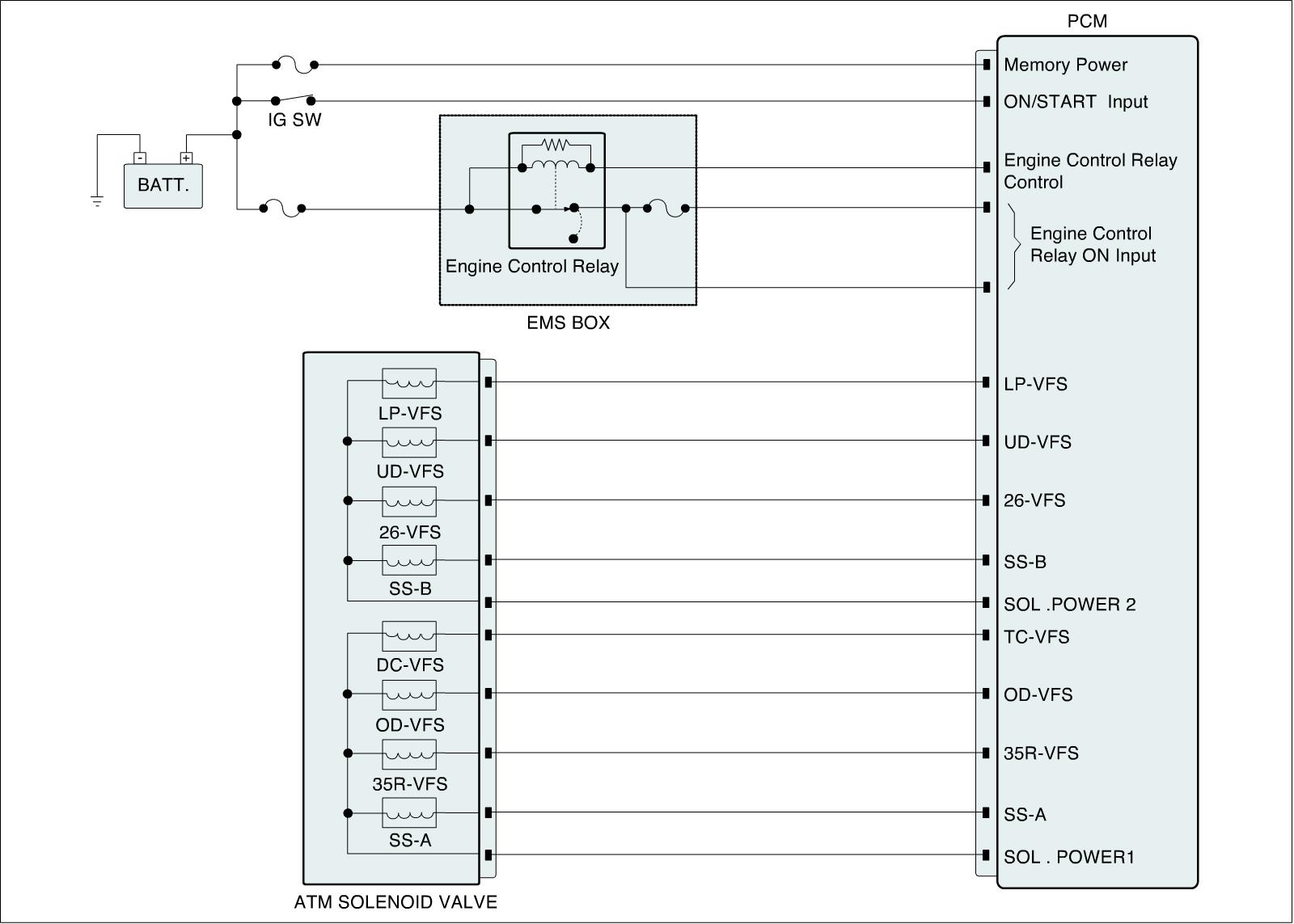

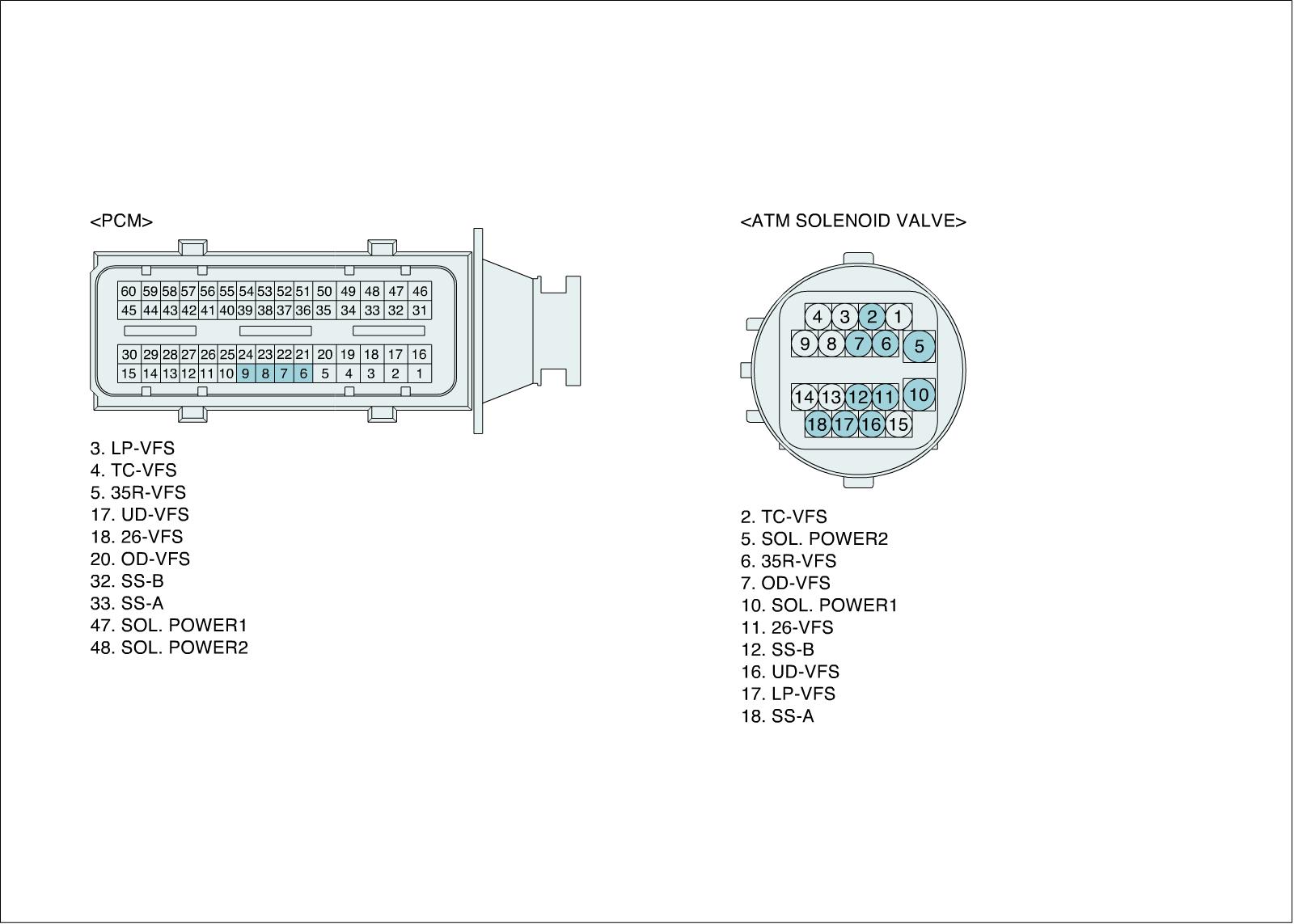

Diagnostic Circuit Diagram
