P1B03 Auxiliary Battery Temperature Sensor Circuit - Inspection/Repair:_:Component Inspection

Component Inspection

Checking Auxiliary Battery Temperature Sensor part resistance
1. Ignition OFF.
2. Cool down the high voltage battery for more than 1 hour.
3. Remove the Safety Plug, check that terminal voltage is lower than 30 V.

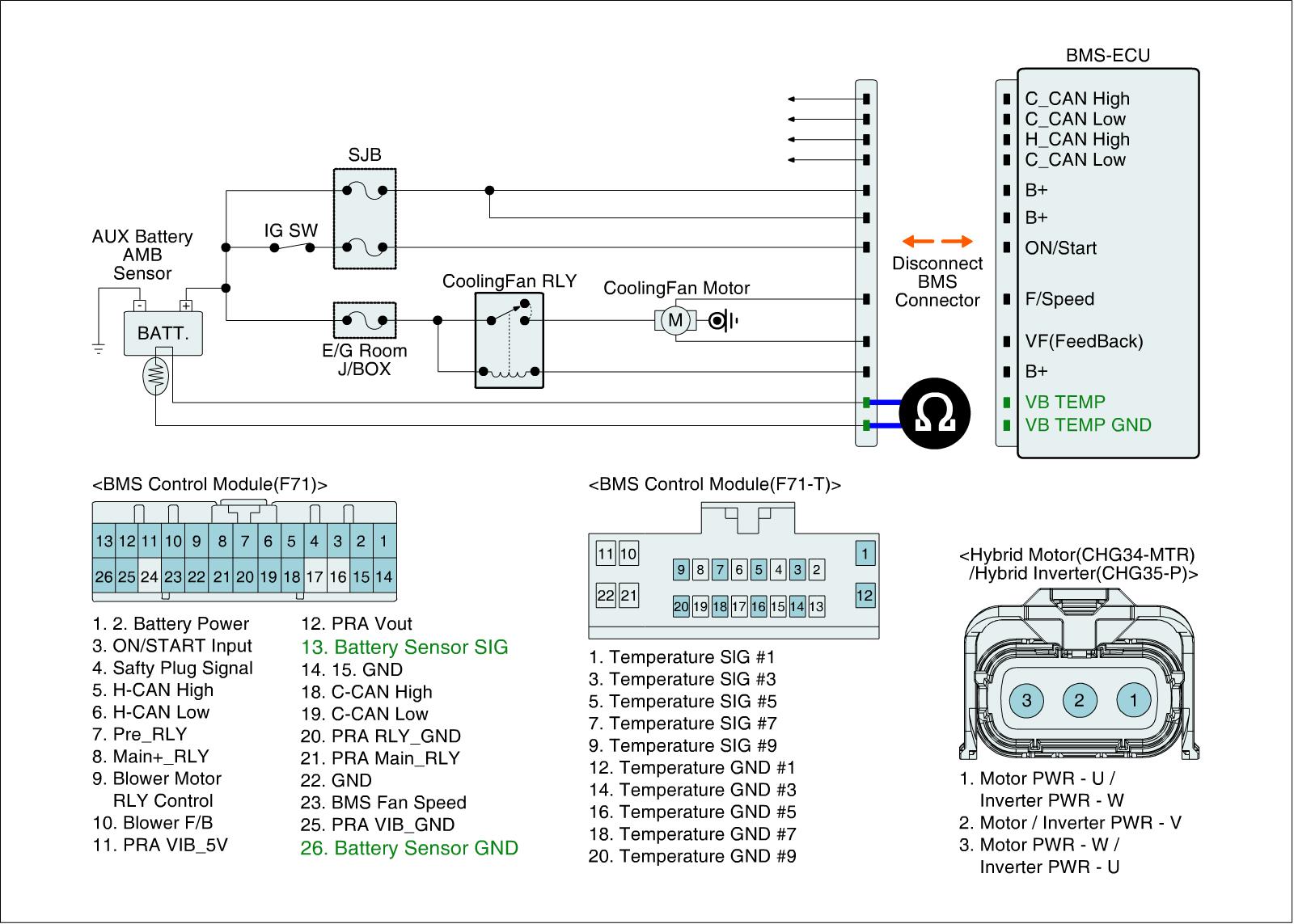

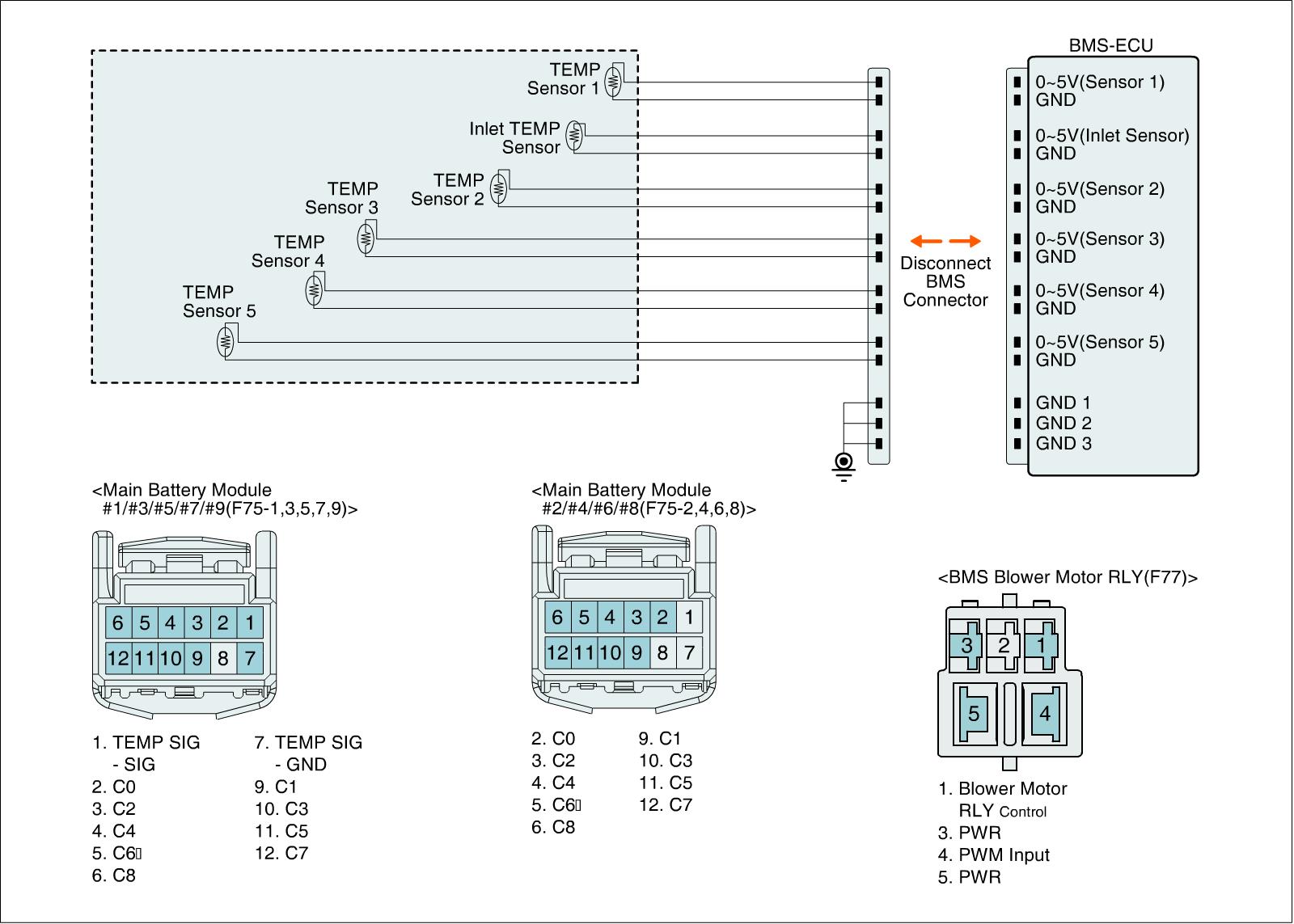

4. Disconnect the BMS ECU and check resistance on the signal and ground lines to the Auxiliary Battery Temperature Sensor.

Specification : About 2 - 100 kOhm±1%
25 °C (77 °F) reference, about 10 kOhm±1%
70 °C (158 °F) reference, about 2.23 kOhm±1%

WARNING:
** Warning & Notice
Hybrid Battery system uses around 270 V voltage.
It may cause death or damage due to electrical shock, if you do not follow below Instructions.
▪ Follows instructions of workshop manual.
▪ Wear and use insulated gloves and tools.
▪ IG "OFF", Disconnect ground cable of auxiliary battery and "OFF" the safety connector of the high voltage battery.
▪ Check high voltage terminal on Power Relay Assembly is lower than 30 V.
▪ Be careful that it should not be short between terminals when measuring battery cell voltage. You may be injured due to spark, parts damage or electrical shock.
▪ Metallic material cause high voltage short that may cause damage of life or vehicle. Therefore, get rid of all the metallic material before working. (Metallic Material : Watch, Ring, any metallic products etc.)
▪ After disconnect W/H goes to BMS ECU from High voltage battery, be careful not to happen short between exposed terminal and terminal on high voltage connector.

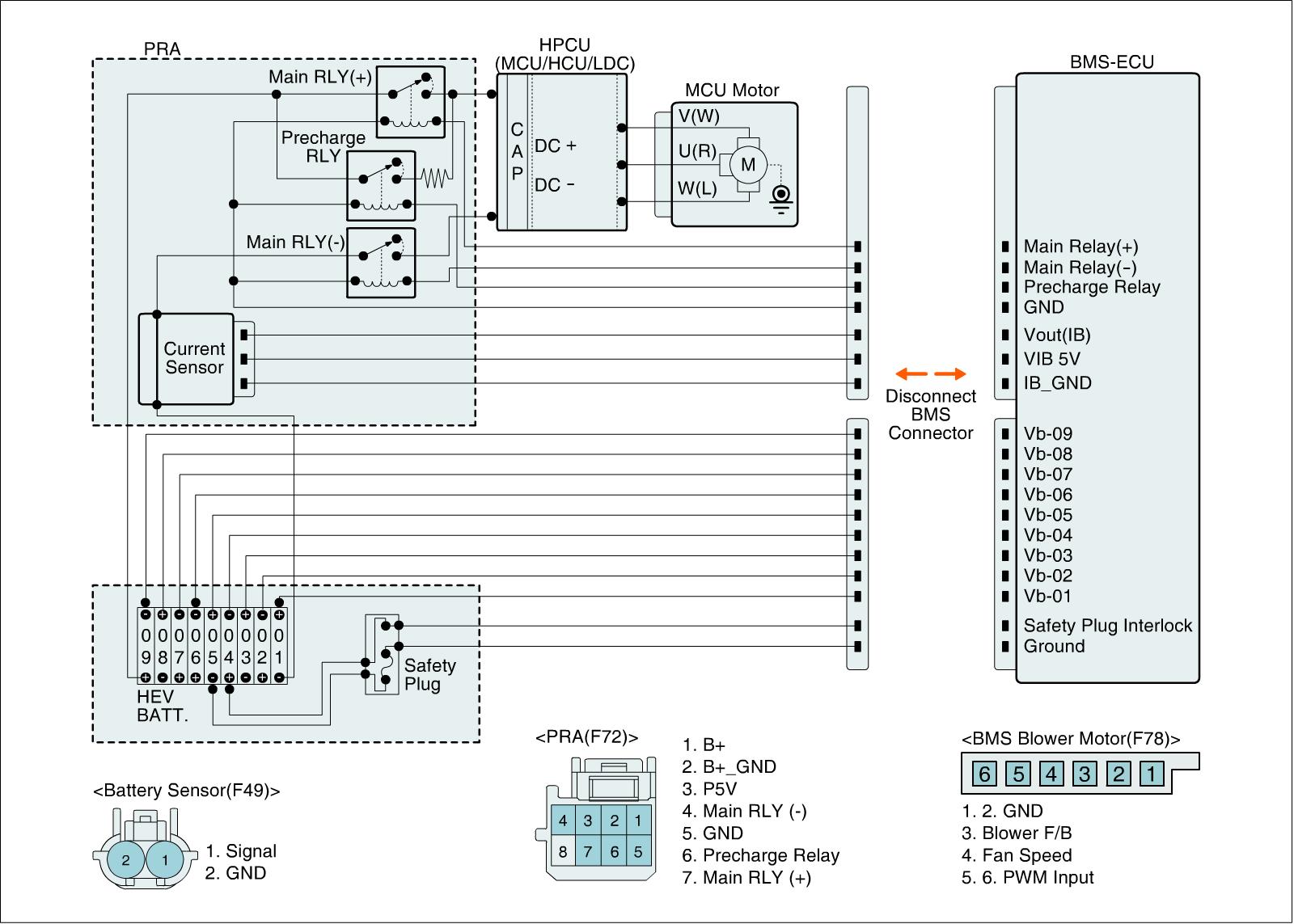

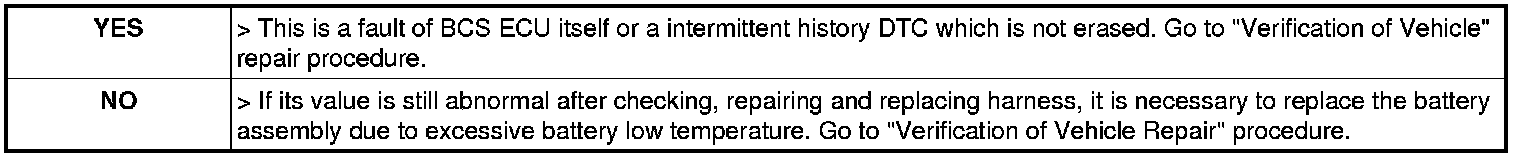

5. Is the measured resistance within specification?
