Component Inspection

Automatic Transaxle

P0773 Shift Control Solenoid Valve \'E\' Electrical (SS-A) - Inspection/Repair:_:Component Inspection

Component Inspection

Shift control solenoid valve (SS-A) Inspection
1. Ignition "OFF".

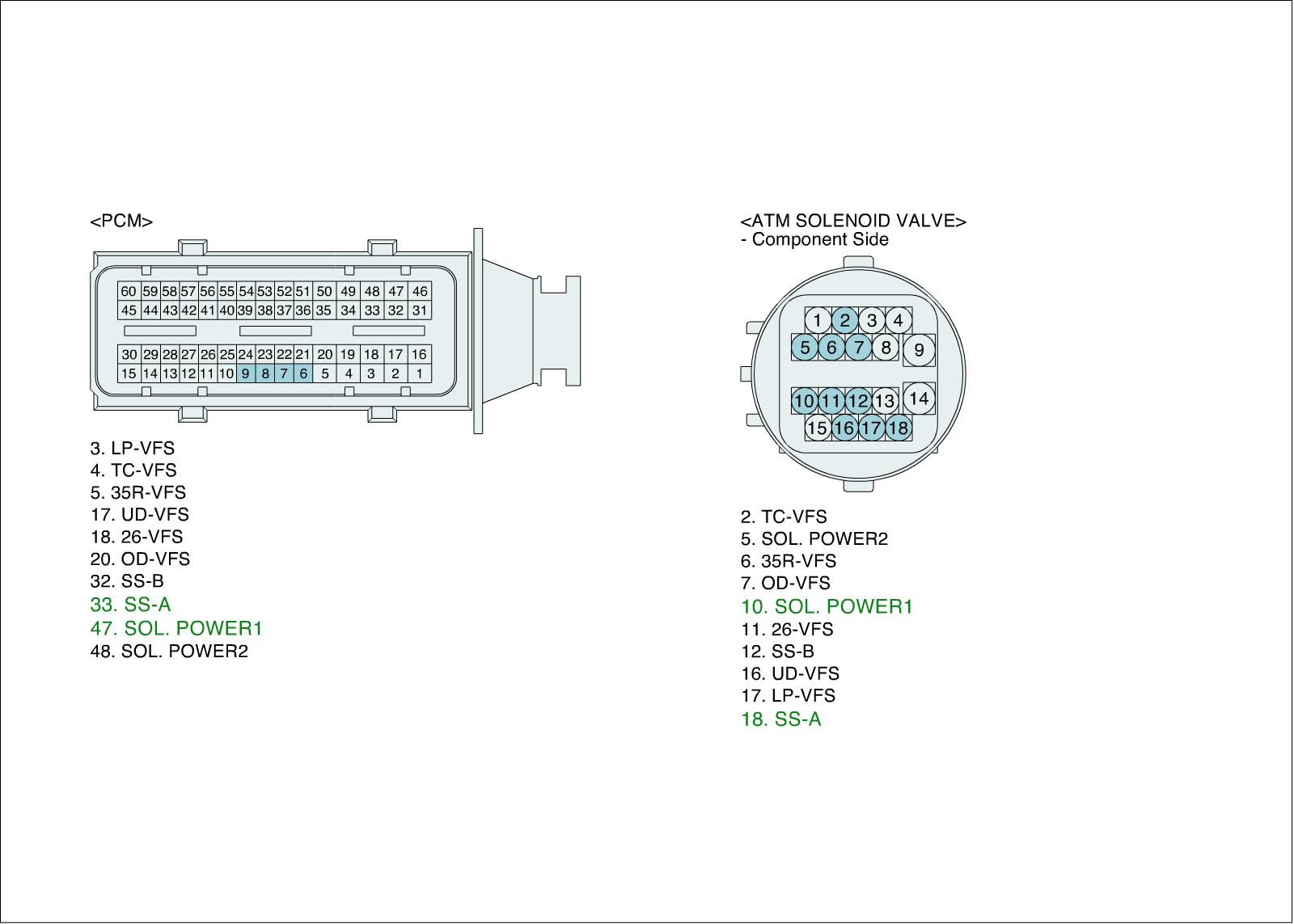

2. Disconnect "ATM solenoid valve connector.

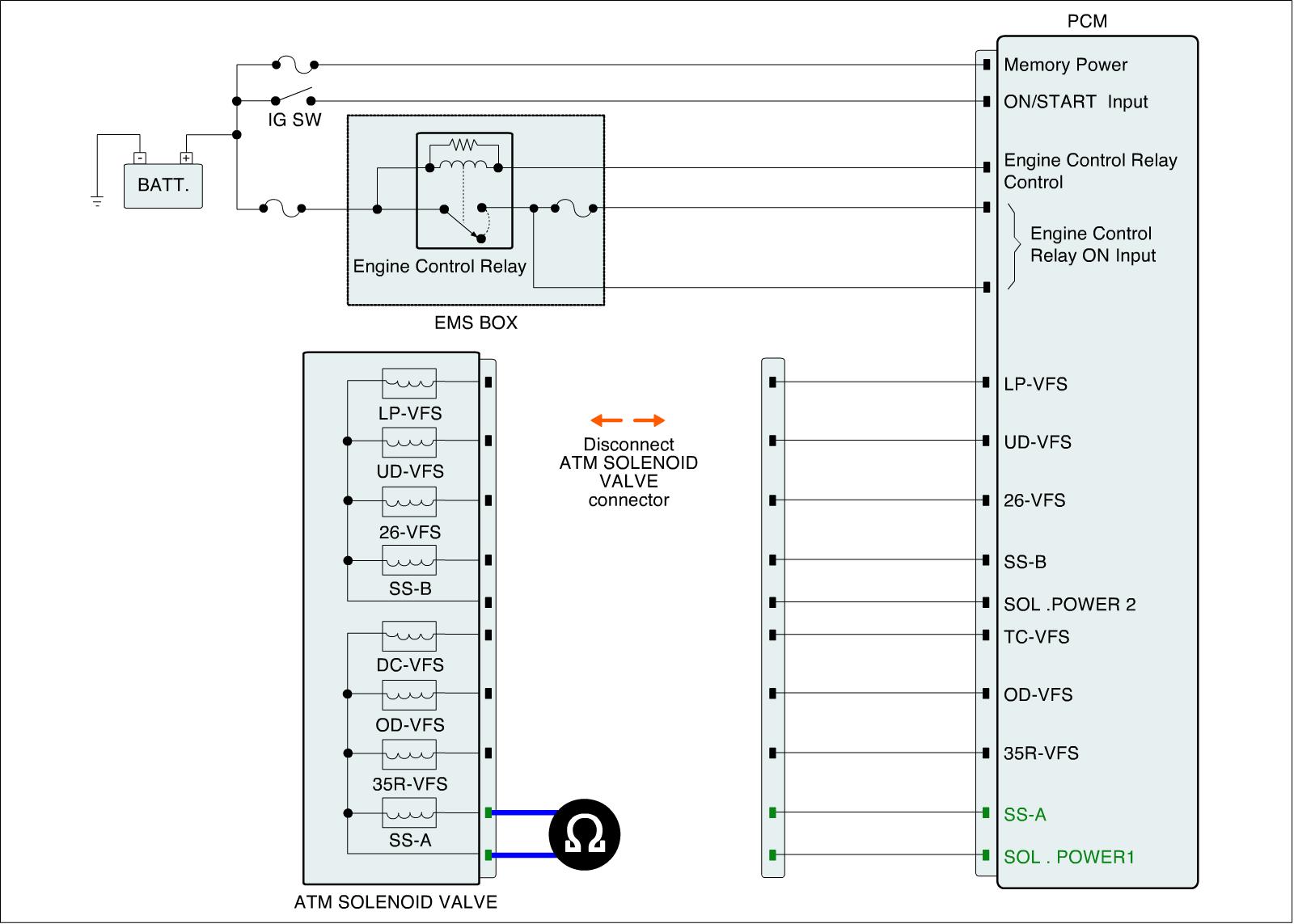

3. Measure a resistance between "Shift control solenoid valve (SS-A)" terminal and power at ATM solenoid valve connector.

Specification : 10 - 11 Ohms (20 °C) (68 °F)

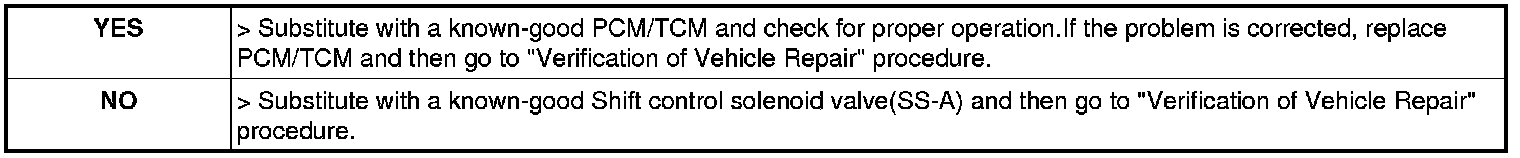

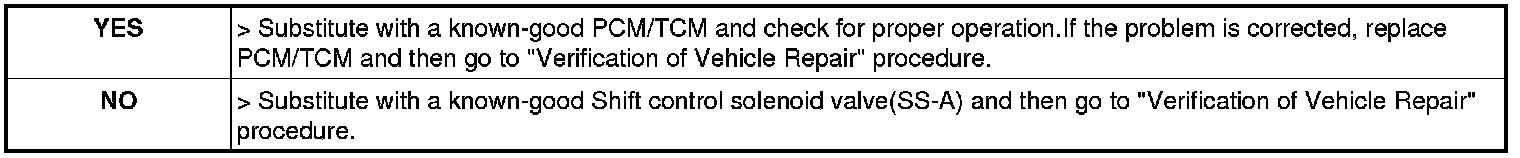

4. Is the measured resistance within specifications?
