Component Inspection

Automatic Transaxle

P0758 Shift Control Solenoid Valve \'B\' Electrical (2-6/B) - Inspection/Repair:_:Component Inspection

Component Inspection

Shift control solenoid valve (26/B-VFS) Inspection
1. Ignition "OFF".

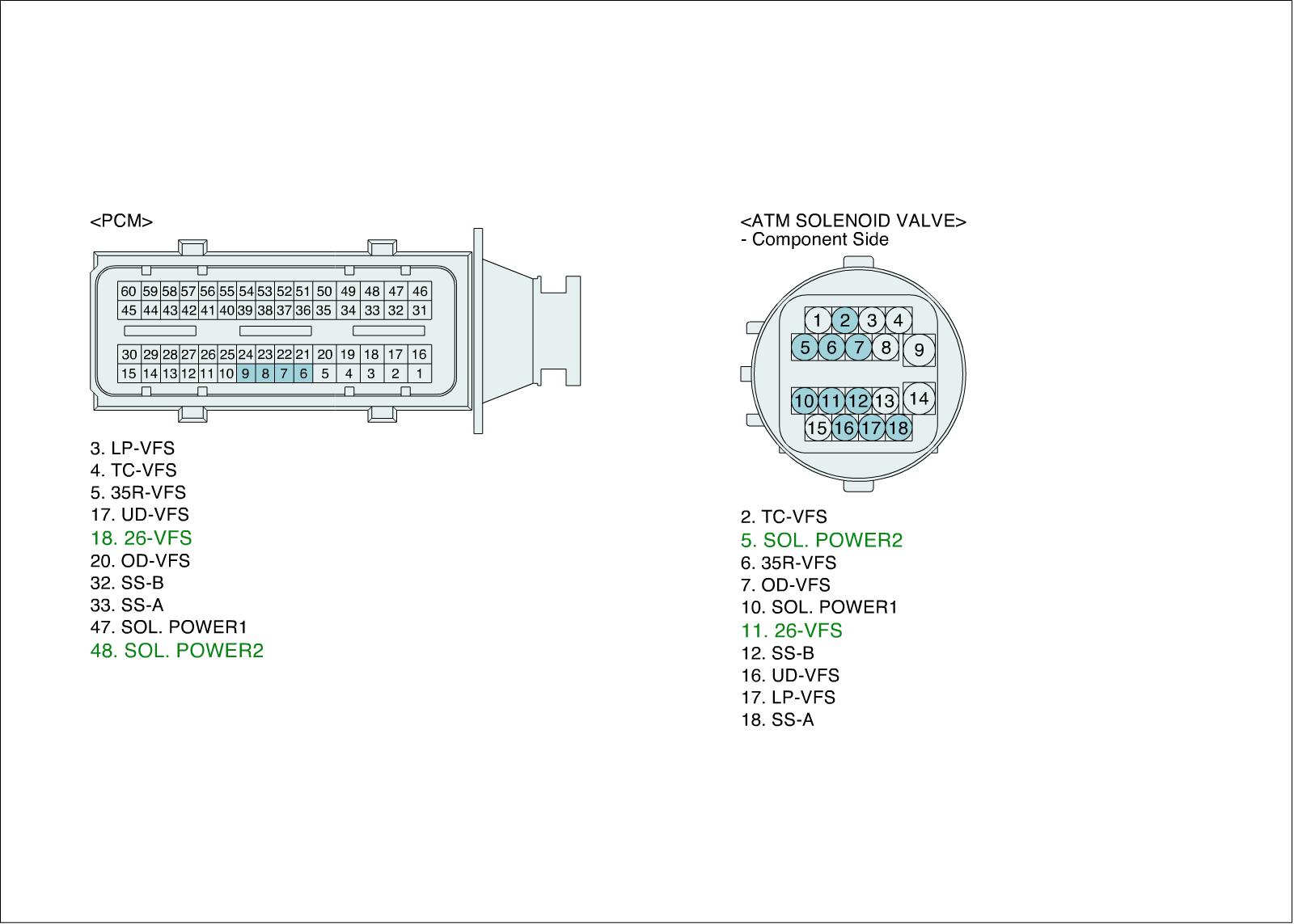

2. Disconnect "ATM solenoid valve connector.

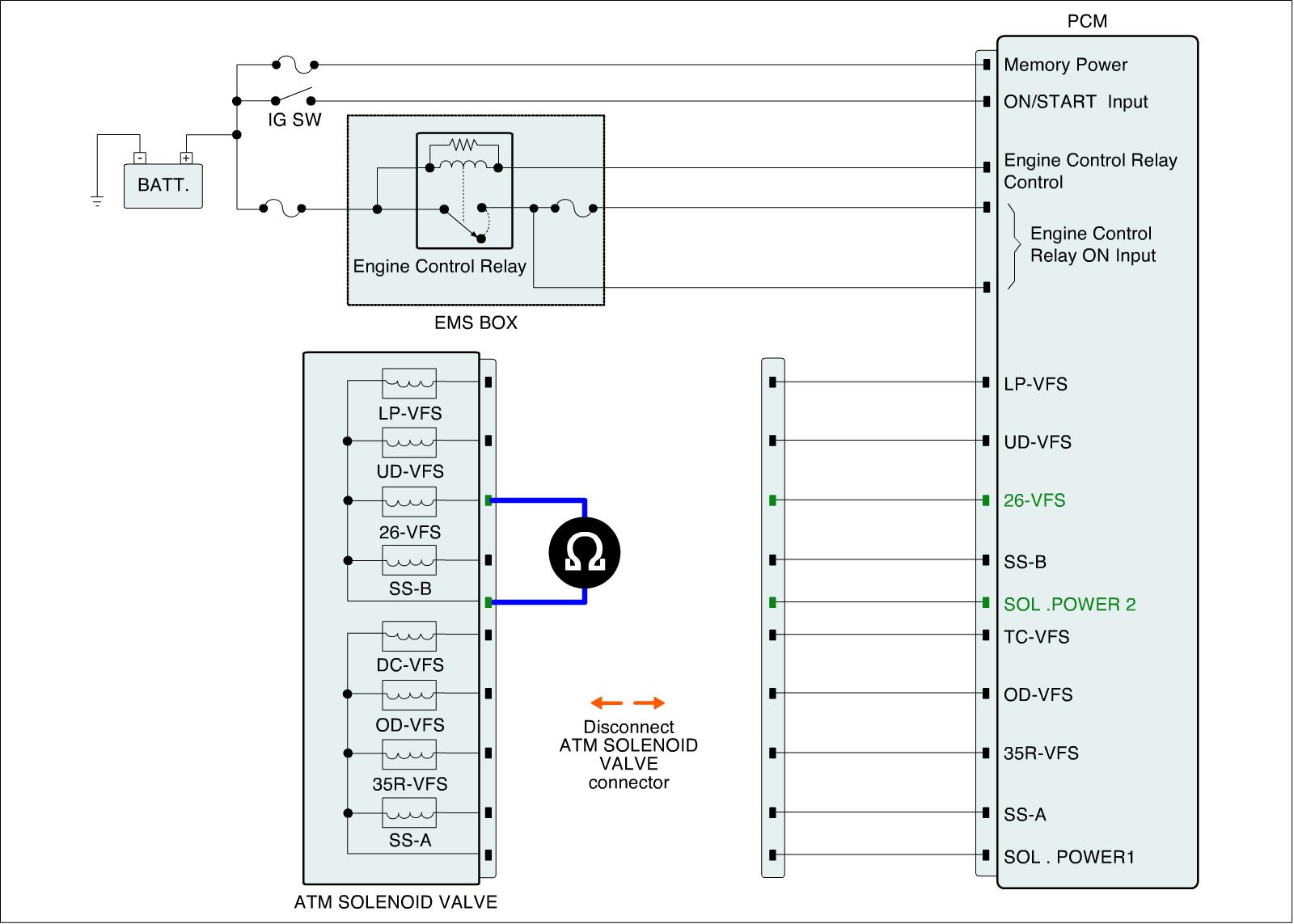

3. Measure a resistance between "Shift control solenoid valve (26/B-VFS)" terminal and power at ATM solenoid valve connector.

Specification : 5.1 ± 0.3 Ohms (25 °C) (77 °F)








4. Is the measured resistance within specifications?
