Scantool Diagnostics

Automatic Transaxle

P0713 Transmission Fluid Temperature Sensor \'A\' Circuit High Input - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".
3. Select "Current Data" mode and monitor "Oil Temperature Sensor" parameter.

Specification : Increasing Gradually








Fig 1) Normal Data
Fig 2) Open Data

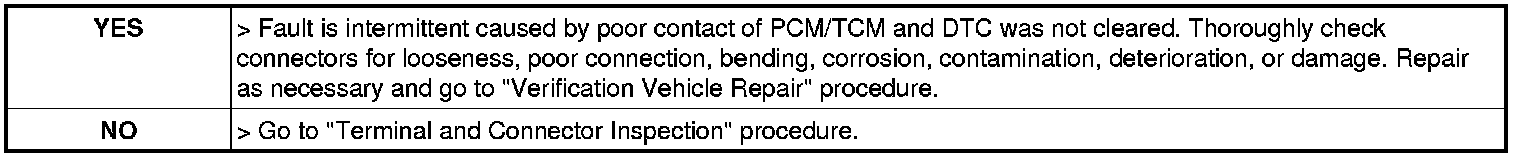

4. Is the Inhibitor switch value changed in specifications?
