Component Inspection

Automatic Transaxle

P0711 Transmission Fluid Temperature Sensor \'A\' Circuit Range/Performance - Inspection/Repair:_:Component Inspection

Component Inspection

"Oil temperature sensor" Inspection
1. Ignition "OFF".
2. Disconnect Oil temperature sensor connector.

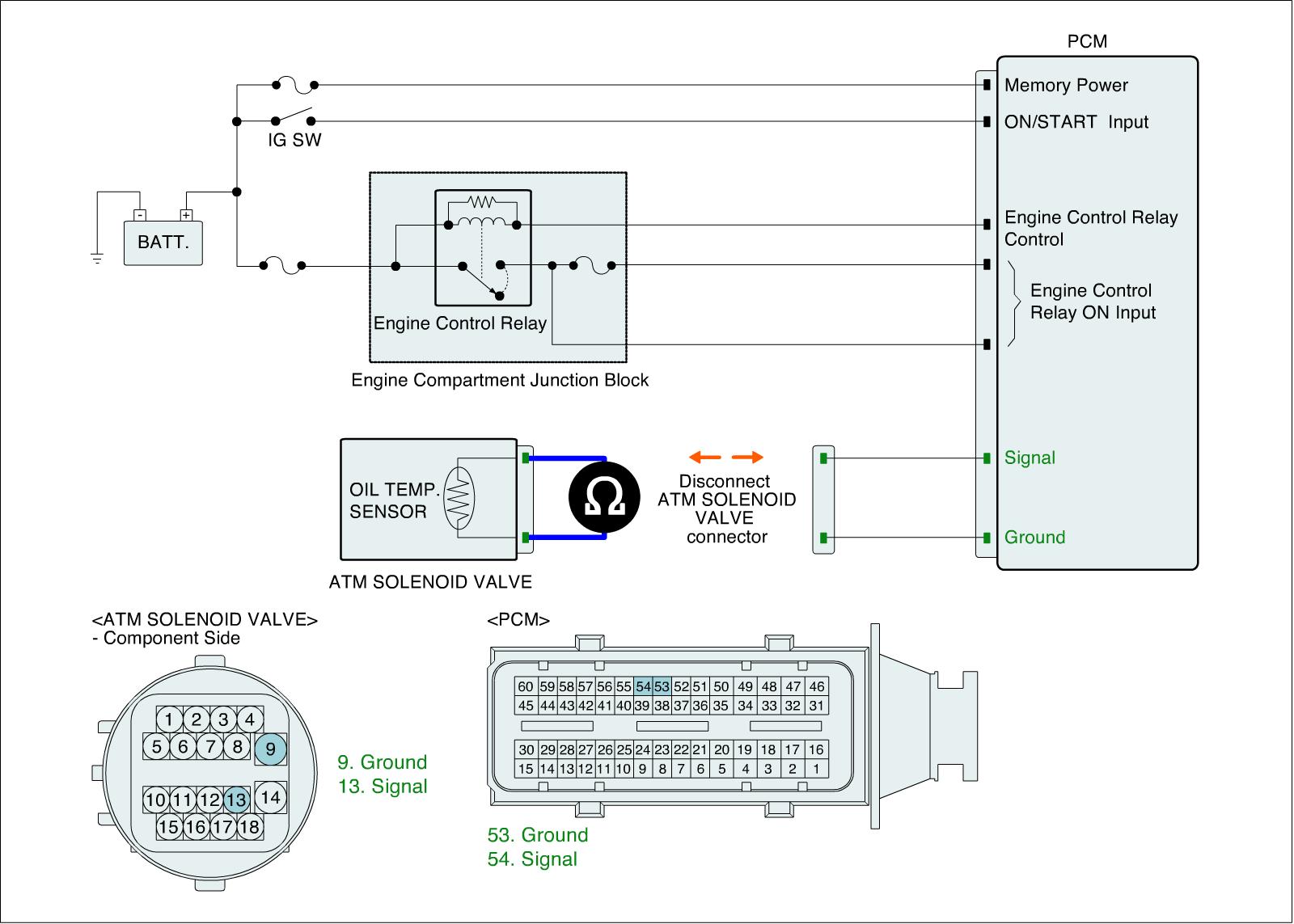

3. Measure a resistance between signal of Oil temperature sensor and chassis ground.

Specification : Approx. 12 V

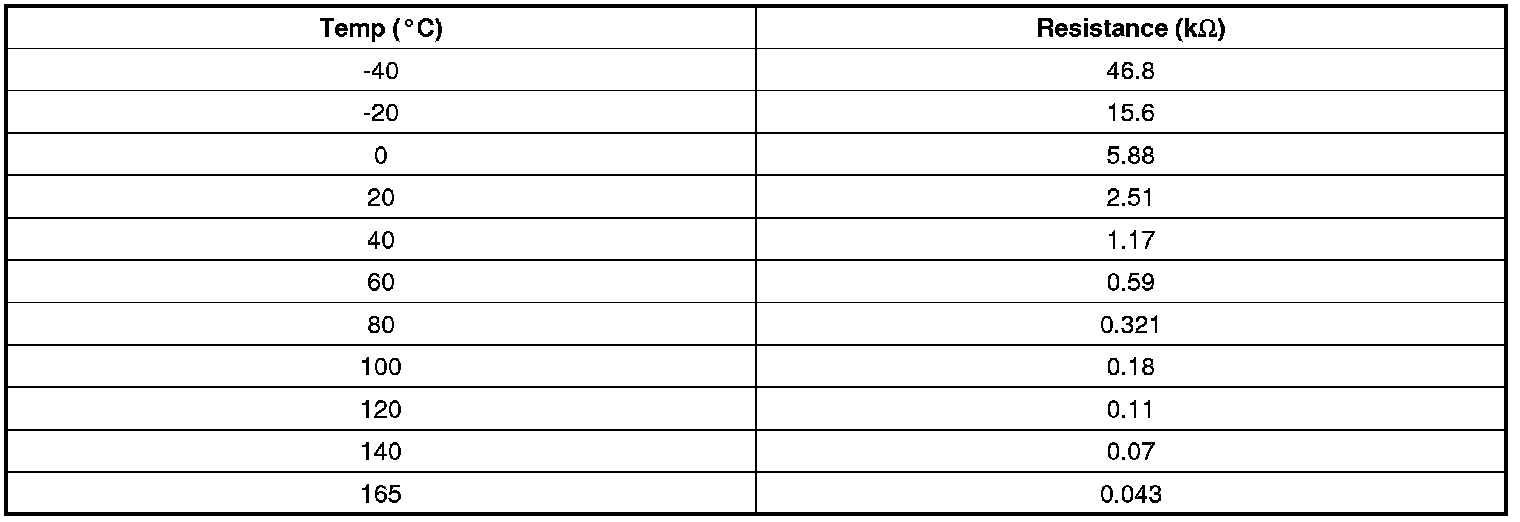

Oil temp senor Reference data Table

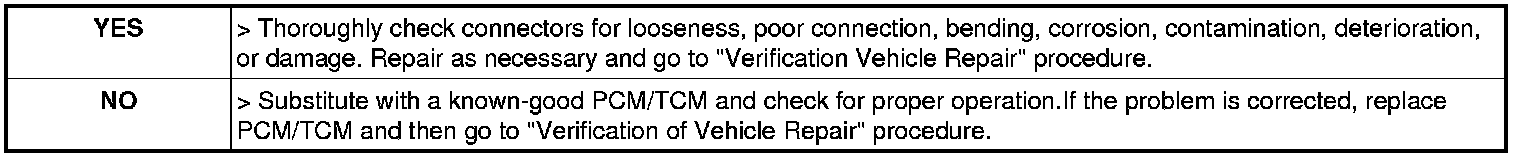

4. Is the measured resistance within specifications?





PCM/TCM
1. Ignition "ON" & Engine "OFF".
2. Connect Oil temperature sensor connector.
3. Connect scantool to Data Link Connector (DLC) and select Simulation mode.
4. Input 0 -> 5 voltage at Oil temperature sensor signal line by simulation mode and Monitoring Oil temperature.








Fig 1) Simulation Output 1.00 V -> 73 °C (163.4 °F)
Fig 2) Simulation Output 2.00 V -> 34 °C (93.2 °F)
** It is subject to change vehicle condition.
5. Is measured Oil temperature sensor value changed by simulating voltage?
