General Information

Automatic Transaxle

P0706 Transmission Range Sensor Circuit Range/Performance - General Information

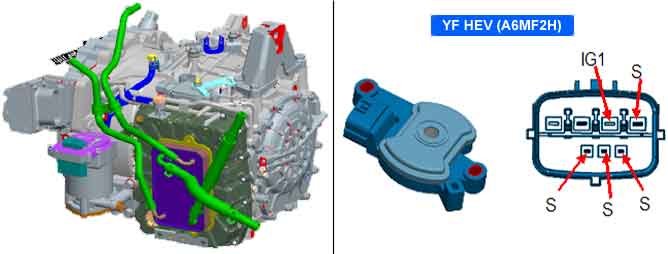

Component Location





General Description

The Shift lever positions P-range (Parking), R-range (Reverse), N-range (Neutral) and D-range (Driving) are changed by driver need and lever position is sent to PCM/TCM to control a gear ratio.

DTC Description

This DTC is set when undefined code is input to PCM/TCM without specific of transmission pattern table.

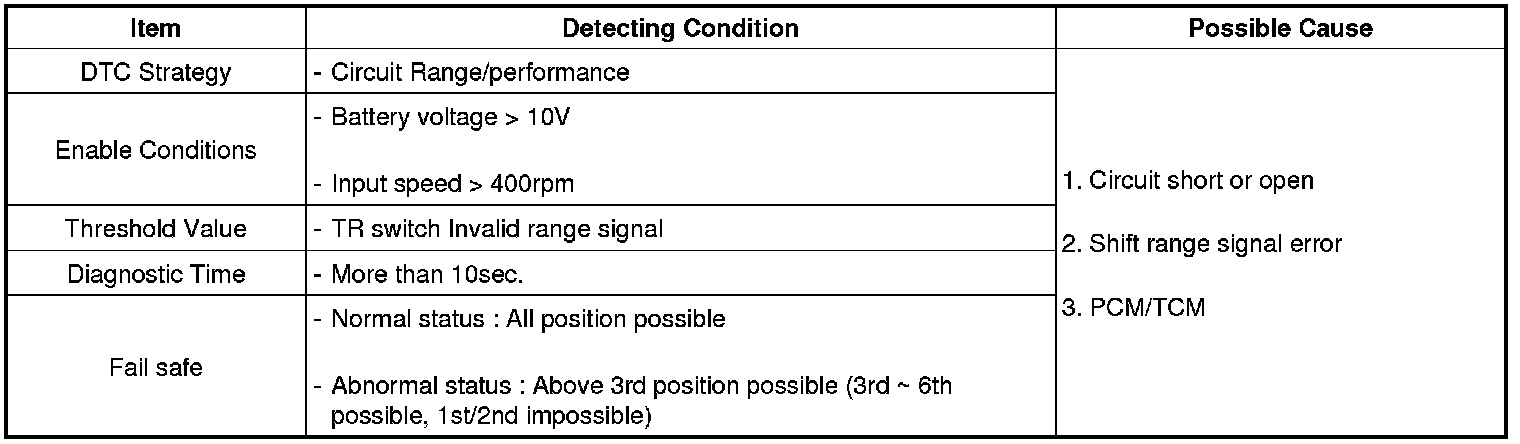

DTC Detecting Condition





Specification

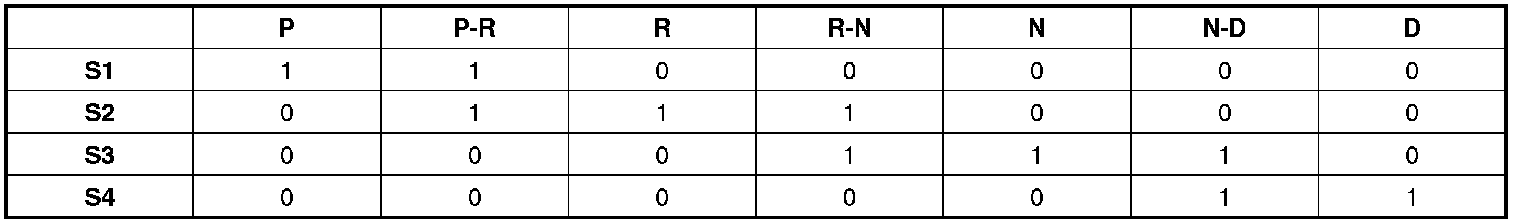

OUTPUT CODE

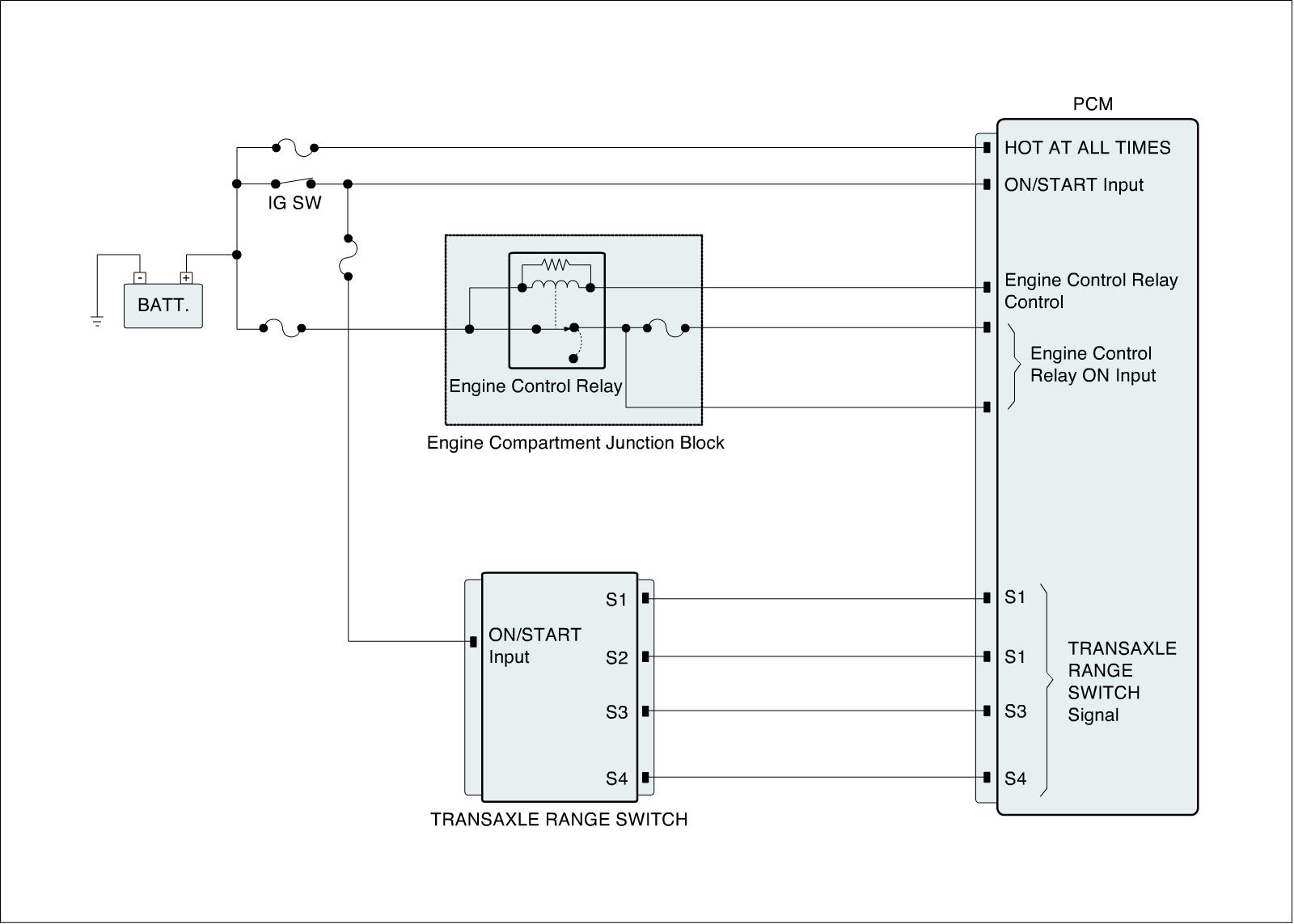

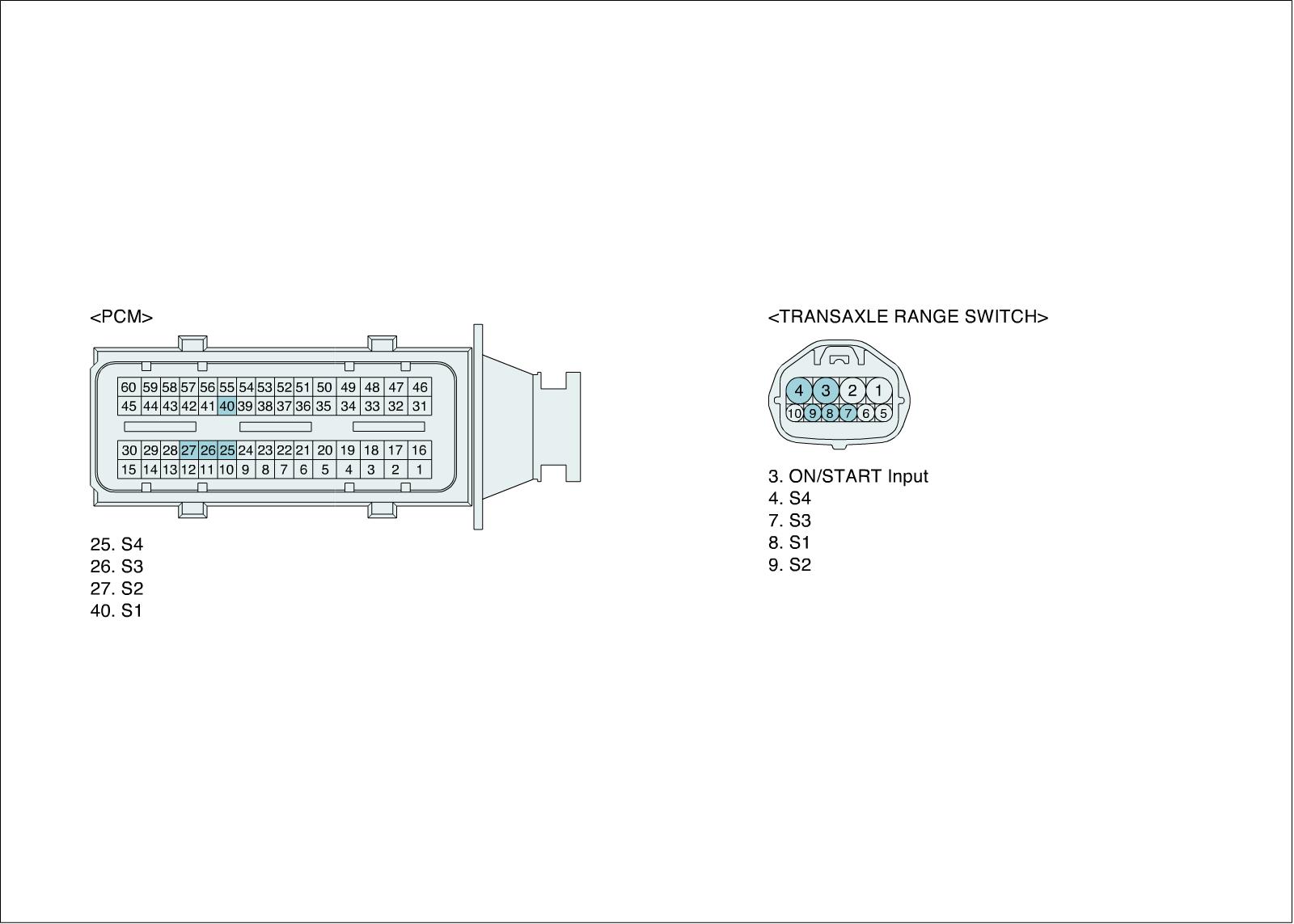

Diagnostic Circuit Diagram

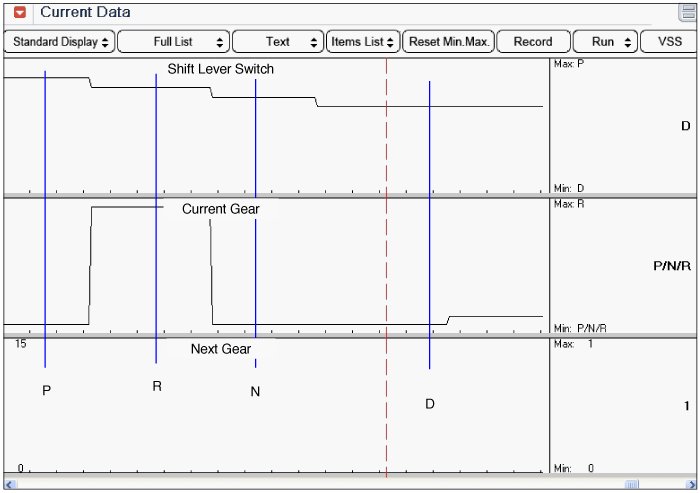

Signal Waveform & Data
