Component Inspection





Engine Control

P0445 Evaporative Emission System-Purge Control Valve Circuit Shorted - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect PCSV connector
3. Measure resistance between power terminal and signal terminal of PCSV connector (Component side).

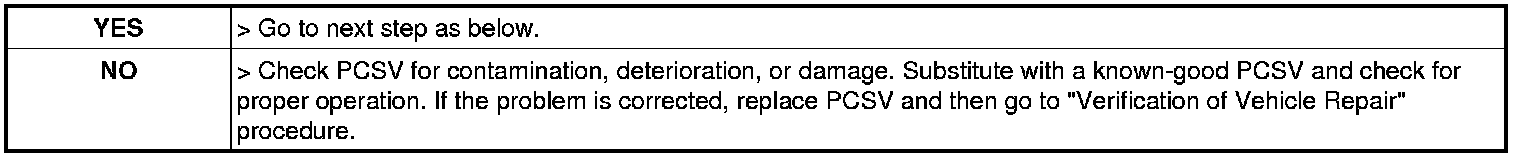

4. Is resistance within the specification?
