Component Inspection

Active Hydraulic Booster

C1647 CAN Hardware Error - Sensor Channel:_:Inspection/Repair:_:Component Inspection

Component Inspection

1. IG "OFF".
2. IG "ON".
3. Connect GDS and select "Diagnostic Trouble Codes (DTCs)" mode.
4. Using a GDS, Clear DTC.
5. Select "Diagnostic Trouble Codes (DTCs)" mode again.

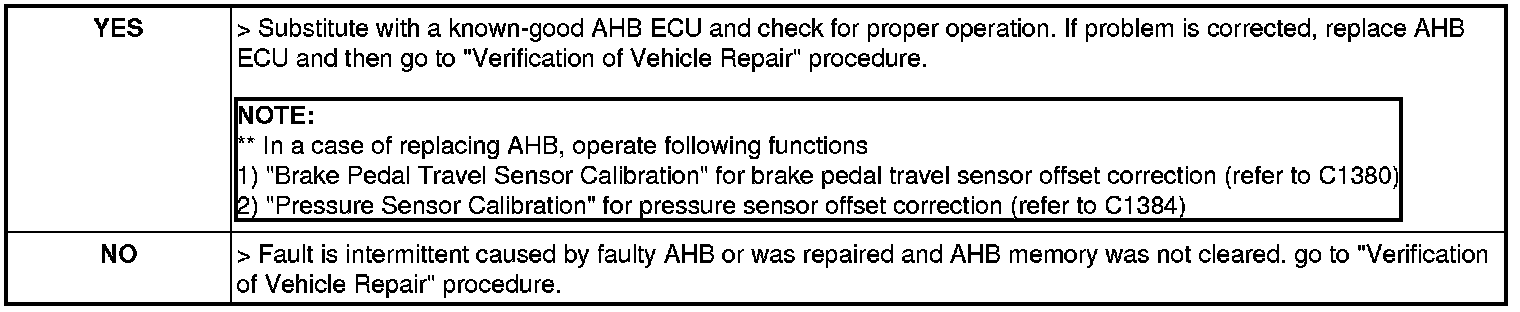

6. Are any DTCs present?
