W/Harness Inspection

Motor Driven Power Steering

C1616 CAN Bus Off - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,or damage.

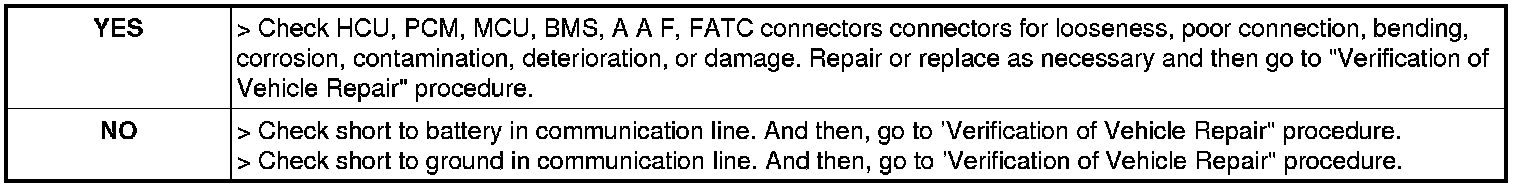

3. Has a problem been found?






CAN register and communication line inspection

CAN register and communication line inspection
1. IG KEY OFF.
2. HCU, PCM, MCU, BMS, A.A.F, FATC,.....connector.

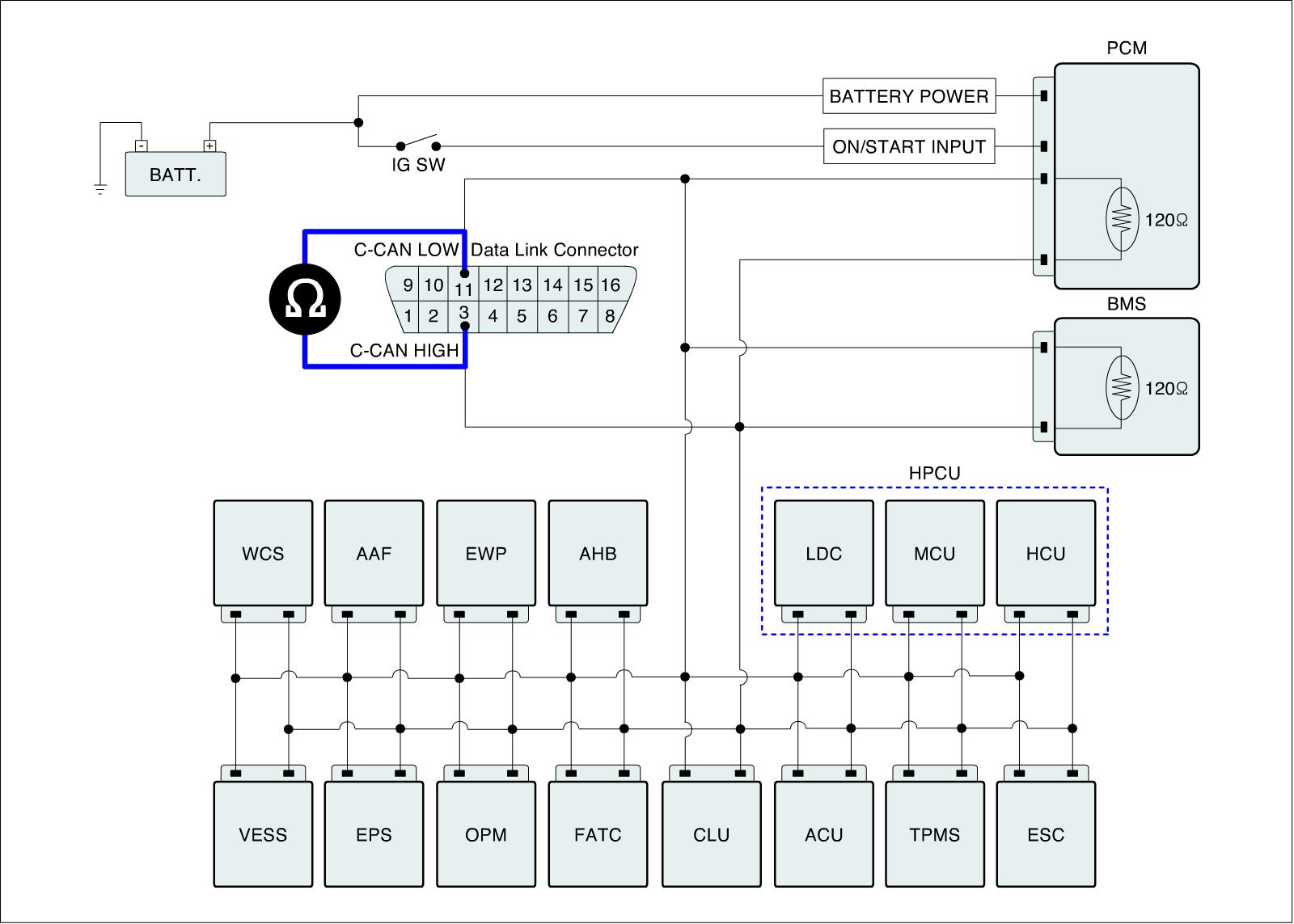

3. Measure registance between terminal 3 and 11 of diagnostic connector.

Specification : About 60 Ohms












4. Is the measured registance within specification?






CAN communication line inspection

Check short to battery in CAN communication line.
1. IG key "OFF".
2. Disconnect HCU, PCM, MCU, BMS, A A F, FATC connector
3. IG KEY "ON"

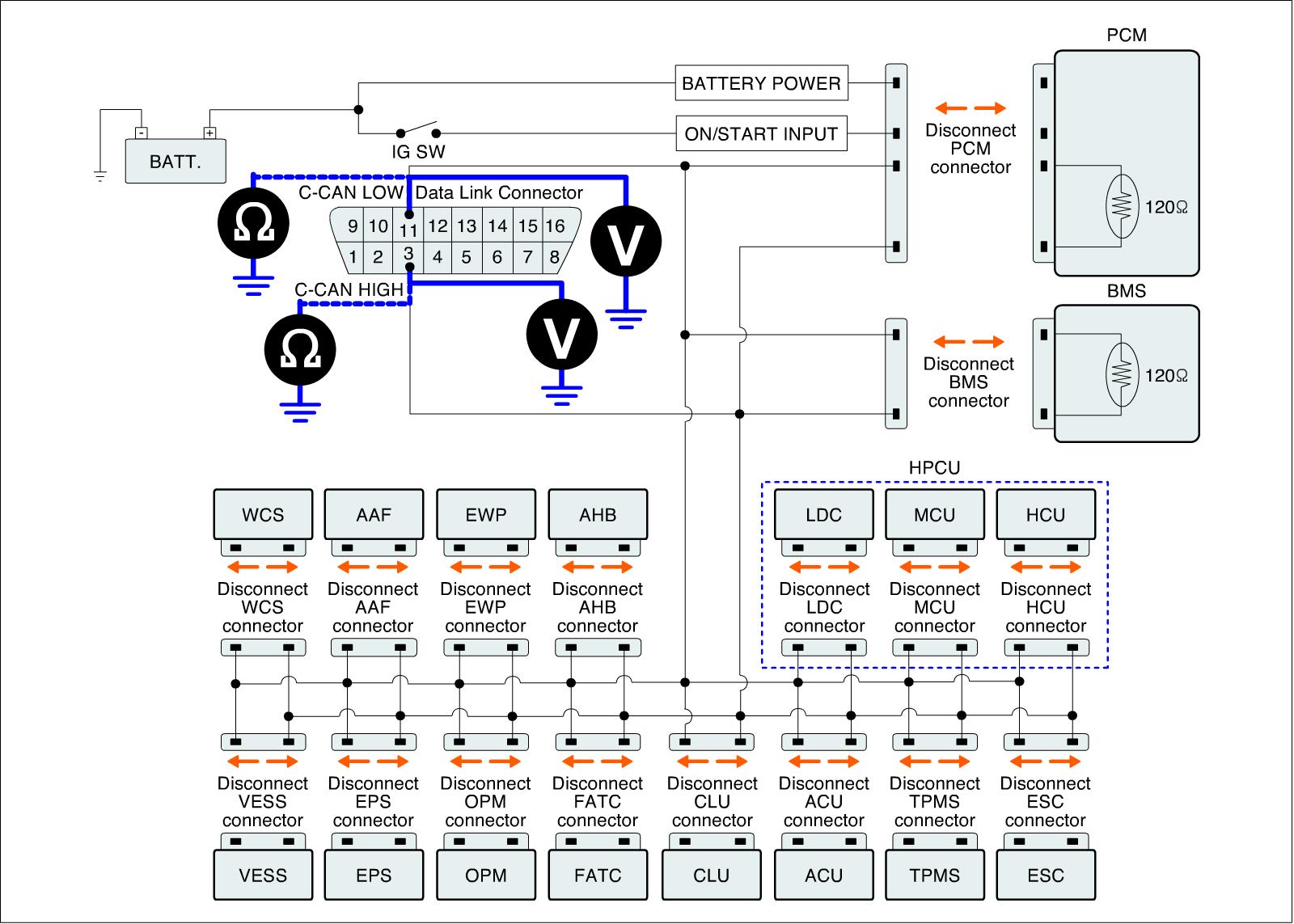

4. Measure voltage between CAN high terminal (# 3) of diagnostic connector and chassis ground.
5. Measure voltage between CAN low terminal (#11) of diagnostic connector and chassis ground.

Specification : About 0 V

Check short to ground in CAN communication line
1. IG key "OFF".
2. Disconnect HCU, PCM, MCU, BMS, A A F, FATC connector
3. Measure resistance between CAN high terminal (# 3) of diagnostic connector and chassis ground.
4. Measure resistance between CAN low terminal (# 11) of diagnostic connector and chassis ground.

Specification : Infinity Ohms

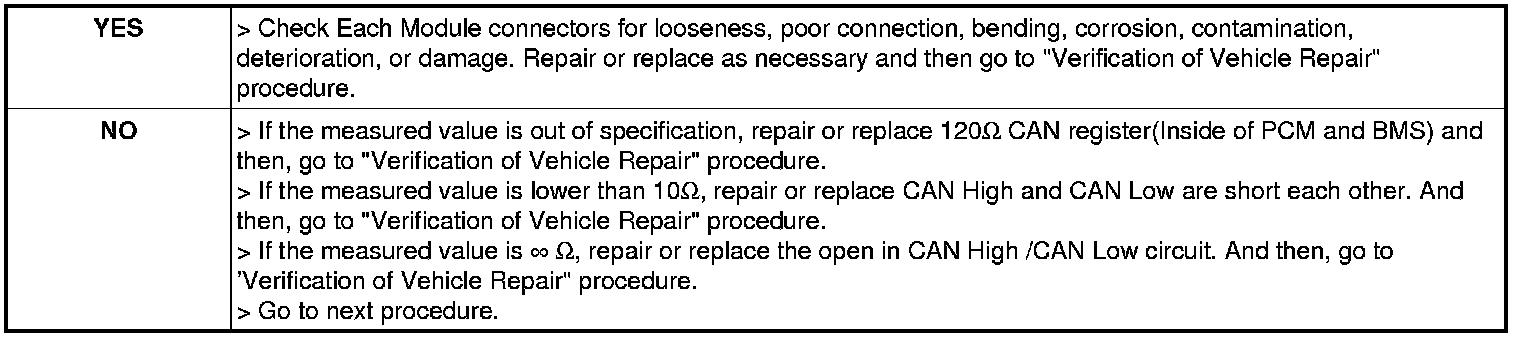

5. Is the measured value within specification?
