W/Harness Inspection

Motor Driven Power Steering

C1259 Steering Angle Sensor - Electrical Malfunction - Scantool Diagnosis:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Turn the steering wheel to the left or right.

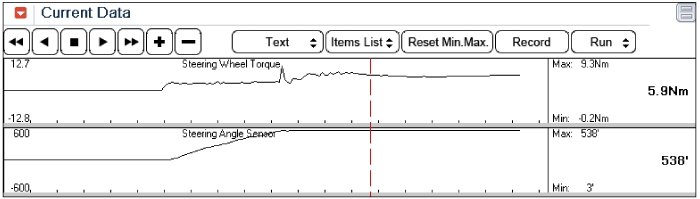

4. Monitor the "STEERING ANGLE SNSR" parameters on the Scantool.

Specification : Approx. 540 ~ - 540 DEG.

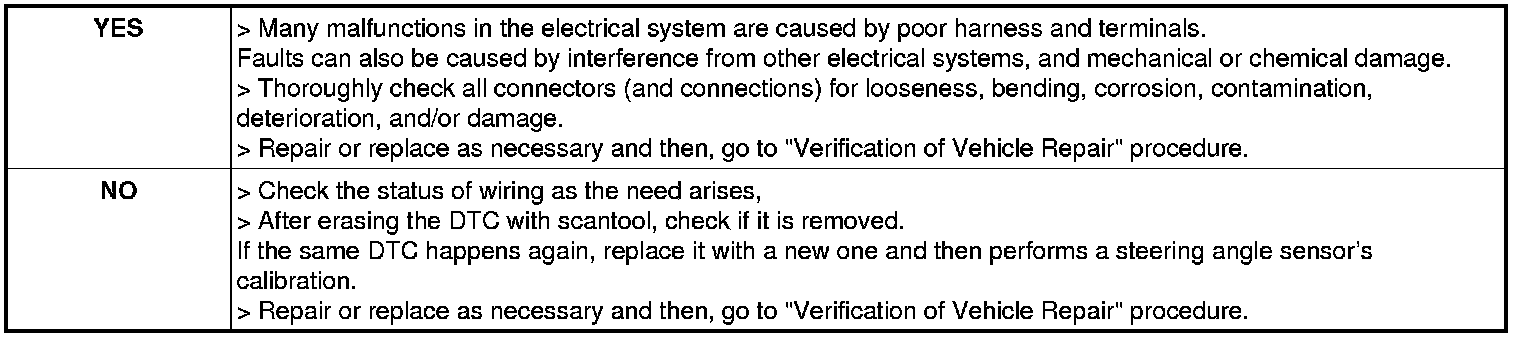

5. Whenever steering wheel is turned, is the steering sensor's scantool data changed?





** Perform steering angle sensor calibration.
1) Ignition "ON" & Engine "OFF".
2) Set the steering wheel so that the wheels point straight ahead
3) Connect scantool to Data Link Connector (DLC).

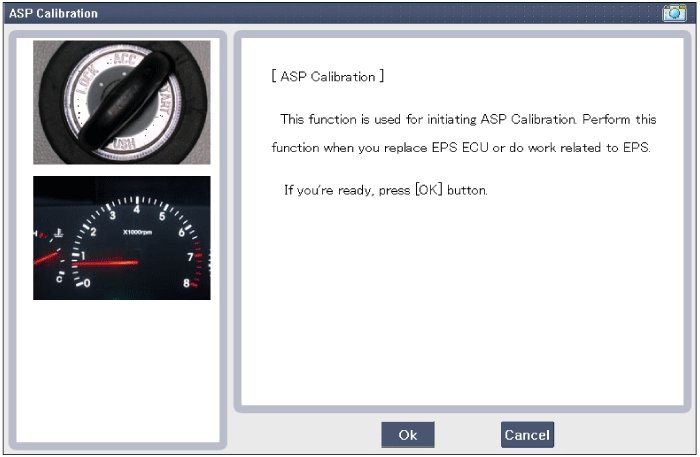

4) Perform ASP calibration. (figure 3).
5) Go to "Component Inspection" Procedure.
