Scantool Diagnostics

Motor Driven Power Steering

C1109 IGN Signal Error - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Start engine and turn the headlight and the heatwire on.

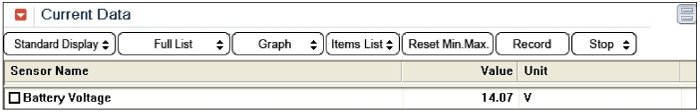

3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.
4. Maintaining ENG. RPM at 2,500 RPM (idle) over 2 minutes.

Specification : less than 16 [V] or more than 10 [V].




5. Is parameter within specifications?
