Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Joint Connector

Joint Connector

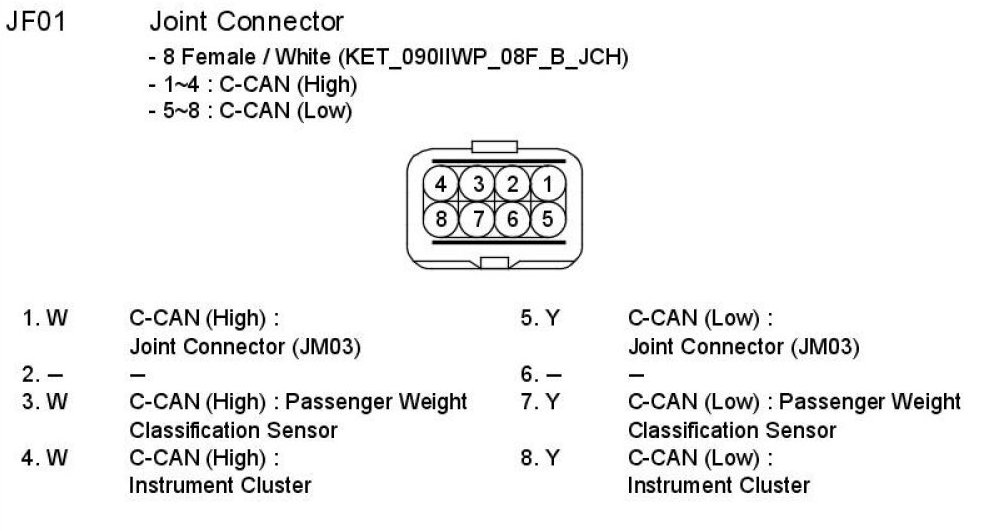

JF01 Joint Connector:

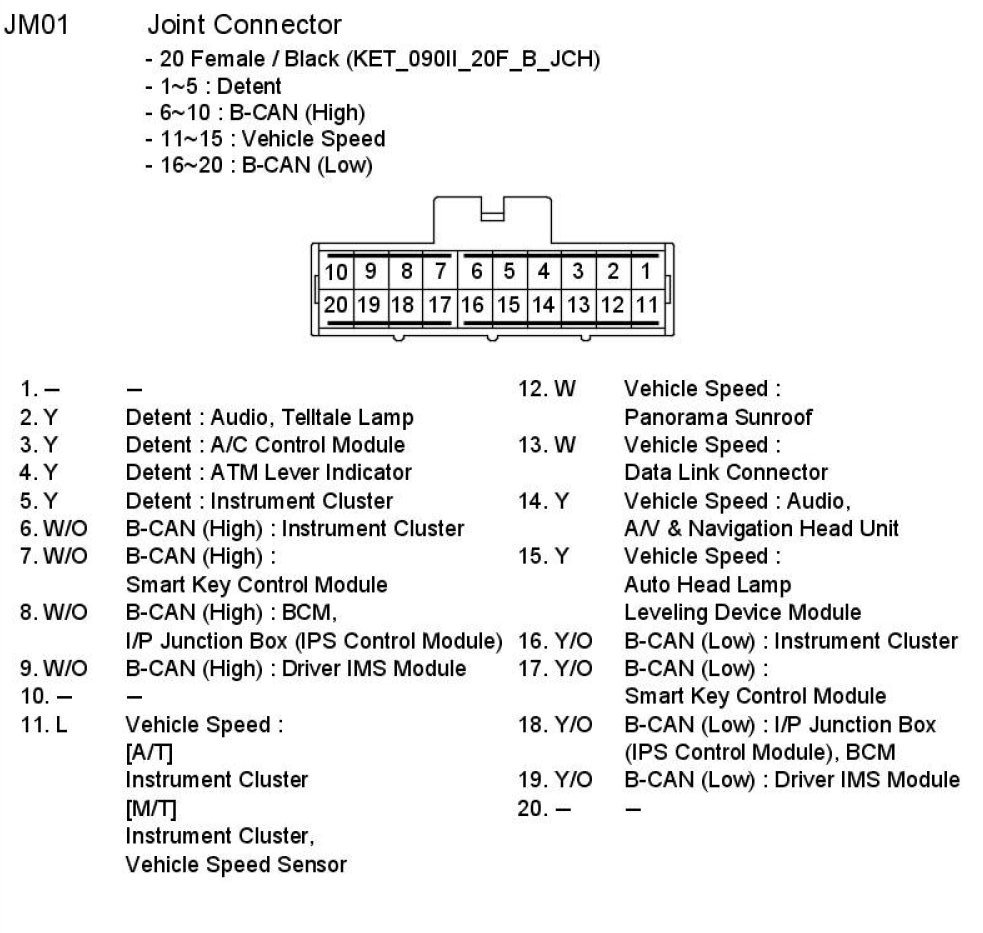

JM01 Joint Connector:




JM02 Joint Connector:

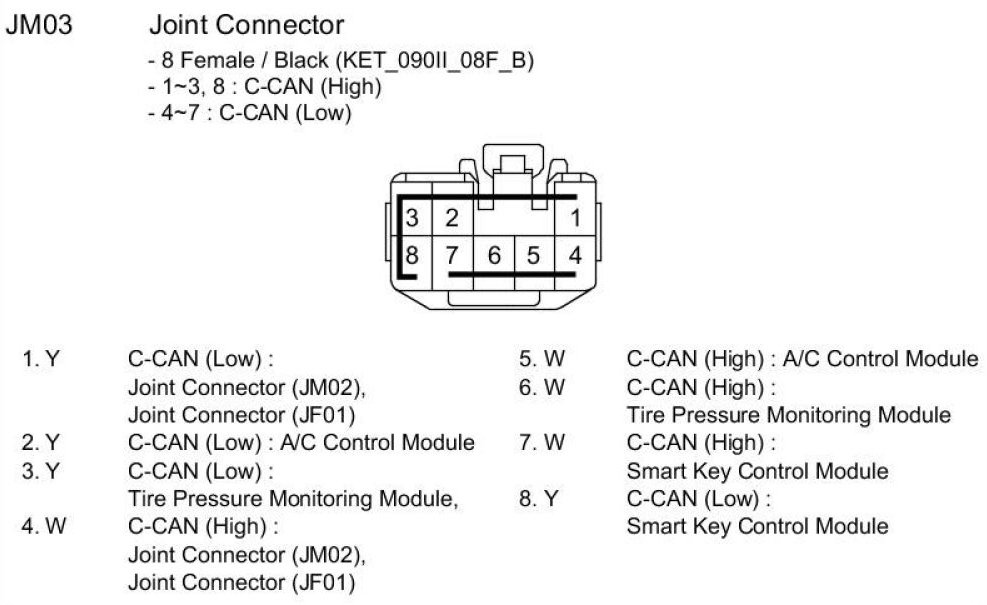

JM03 Joint Connector:

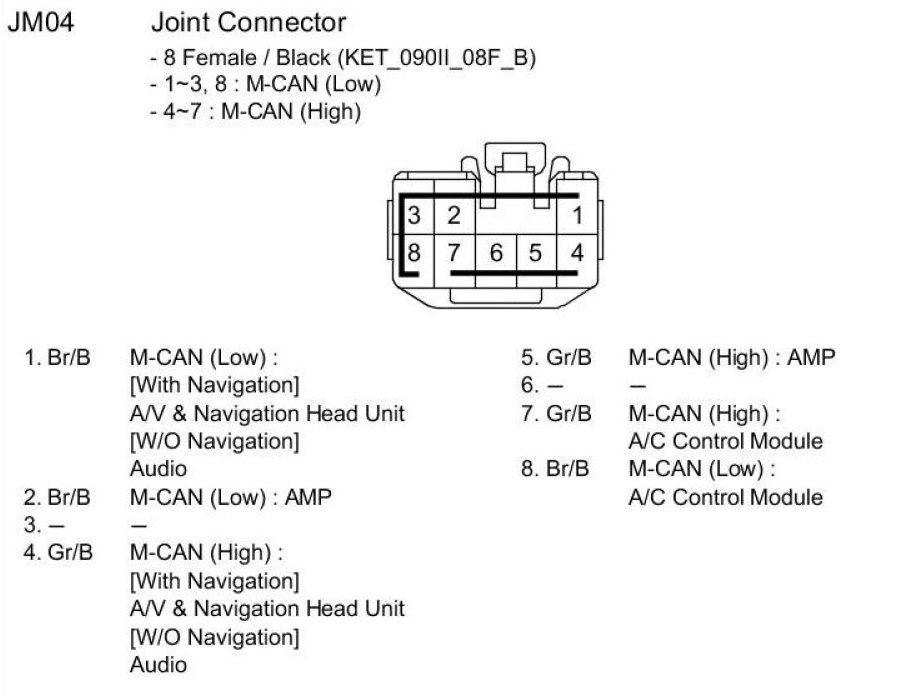

JM04 Joint Connector:

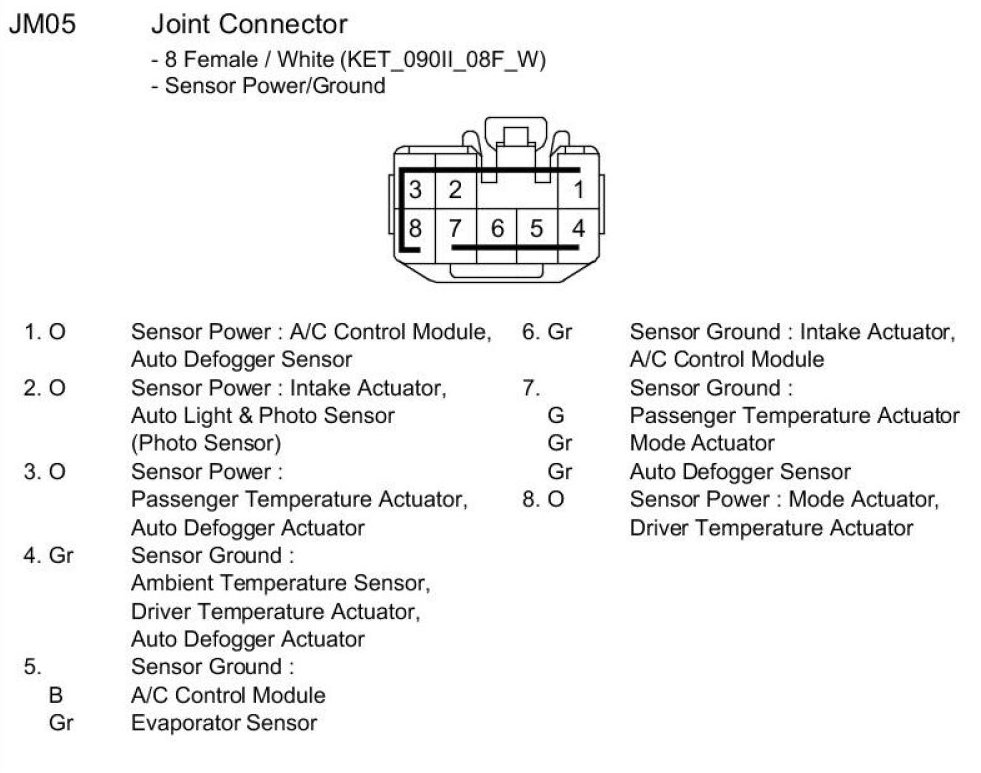

JM05 Joint Connector:

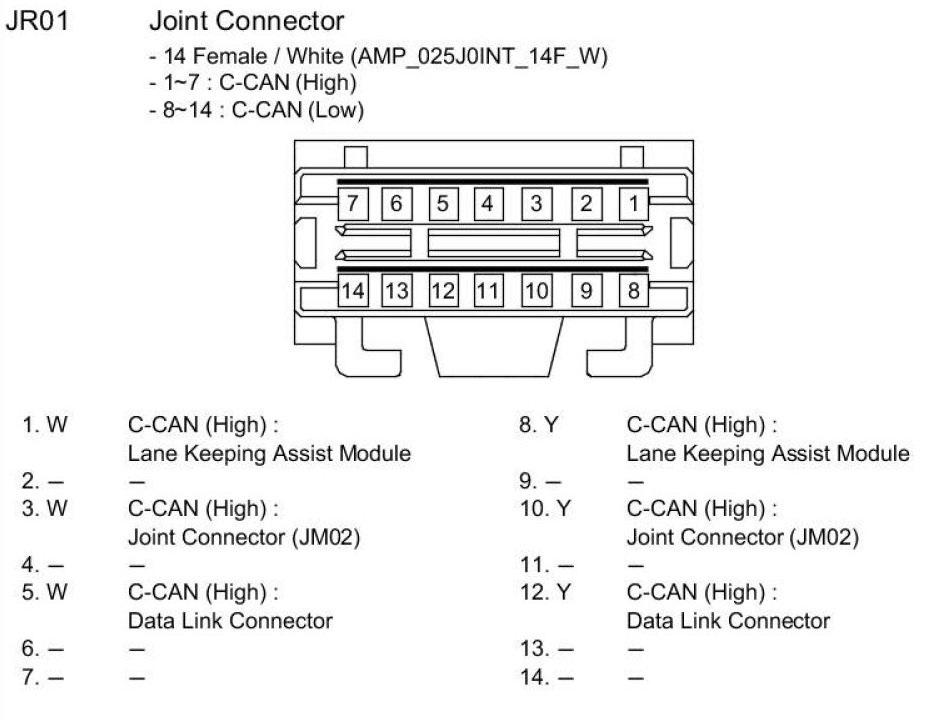

JR01 Joint Connector:




JS01 Joint Connector:

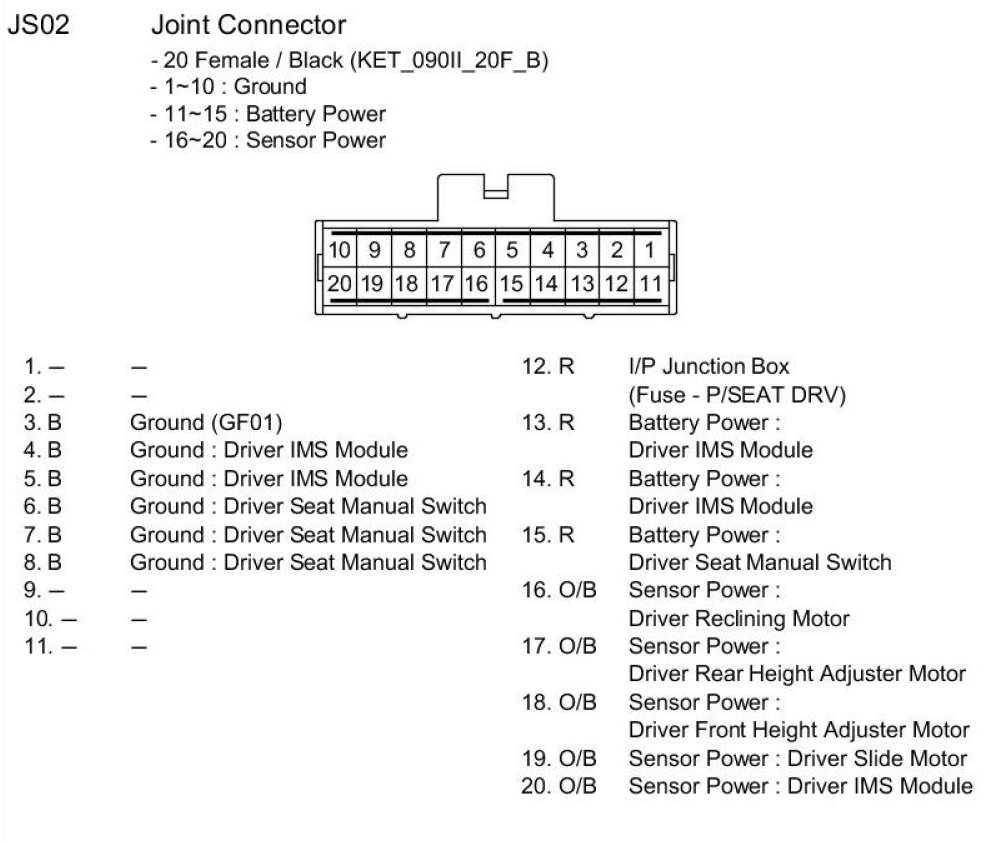

JS02 Joint Connector:
