Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Connector Views >> Rear Power Window Switch RH (With Seat Warmer)

Rear Power Window Switch RH (With Seat Warmer)

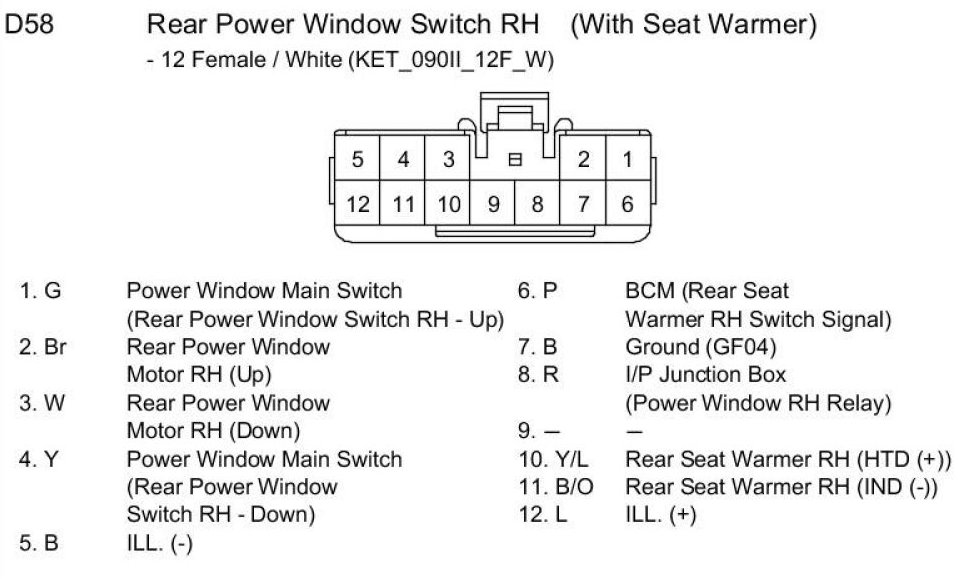

D58 Rear Power Window Switch RH (With Seat Warmer):
