Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Service and Repair >> Components and Components Location

Components and Components Location

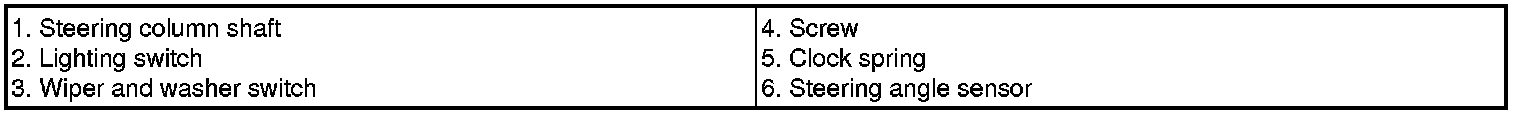

Component(1)

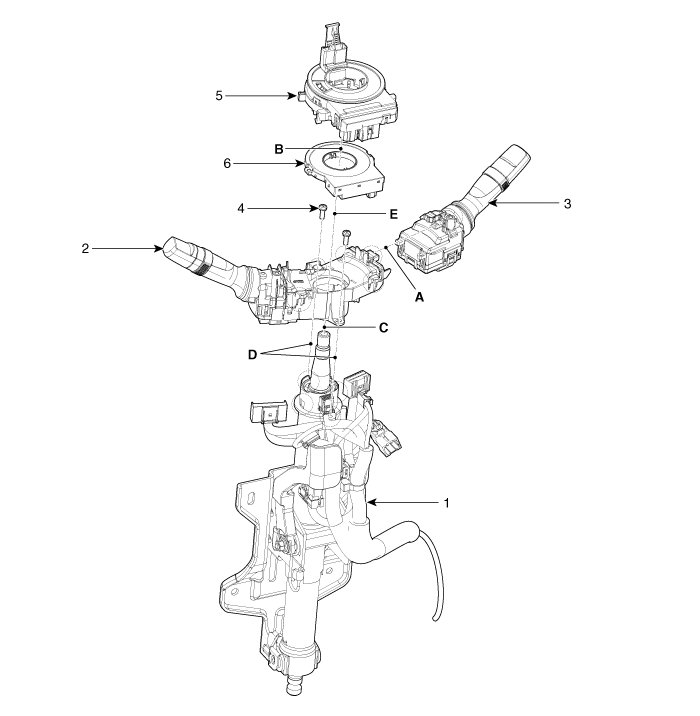

Component(2)




Installation order : A->B->C->D->E>
